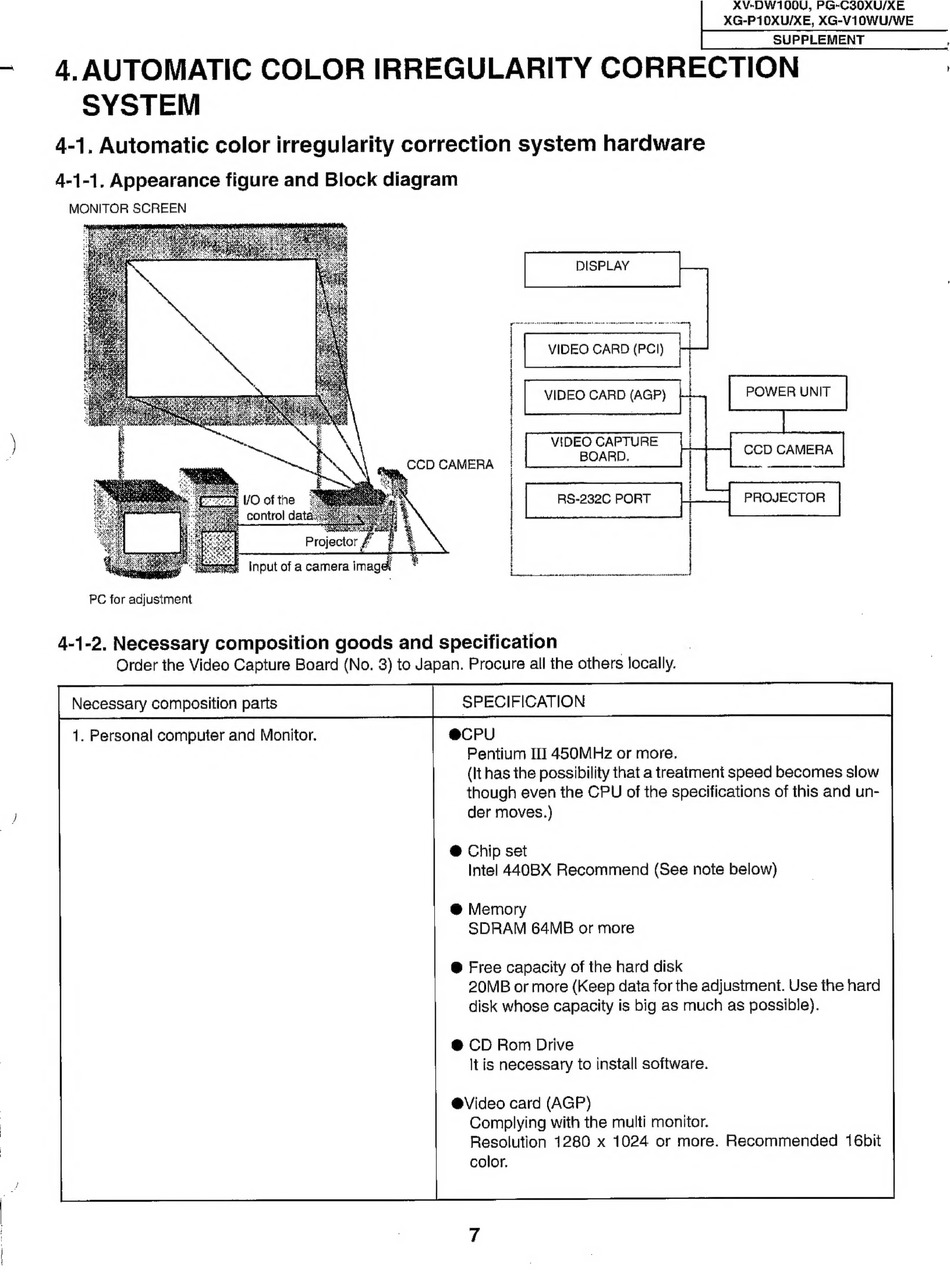

4-1-1. Appearance figure and Block diagram
MONITOR SCREEN
DISPLAY
Anak LAAs att nasanatgnbapertanesbaces.cetaesce esacepracerrset
VIDEO CARD (PCI)
POWER UNIT
en nn Sater nnn Stren bese cena Deeeel eetian Sere neeet
CCD CAMERA
CCD CAMERA
PROJECTOR
tre een ett eter teen eran tne
PC for adjustment
4-1-2. Necessary composition goods and specification |
Order the Video Capture Board (No. 3) to Japan. Procure all the others locally.
Necessary composition parts SPECIFICATION
1. Personal computer and Monitor. @CPU
Pentium I] 450MHz or more.
(Ithas the possibility that a treatment speed becomes slow
though even the CPU of the specifications of this and un-
der moves.)
@ Chip set
Intel 440BX Recommend (See note below)
@® Memory
SDRAM 64MB or more
@ Free capacity of the hard disk
20MB or more (Keep data for the adjustment. Use the hard
disk whose capacity is big as much as possible).
@ CD Rom Drive
It is necessary to install software.
@\Video card (AGP)
Complying with the multi monitor.
Resolution 1280 x 1024 or more. Recommended 16bit
color.
