AV-UWIUUU, PO-CGUAU/AE
XG-P10XU/XE, XG-V10WU/WE

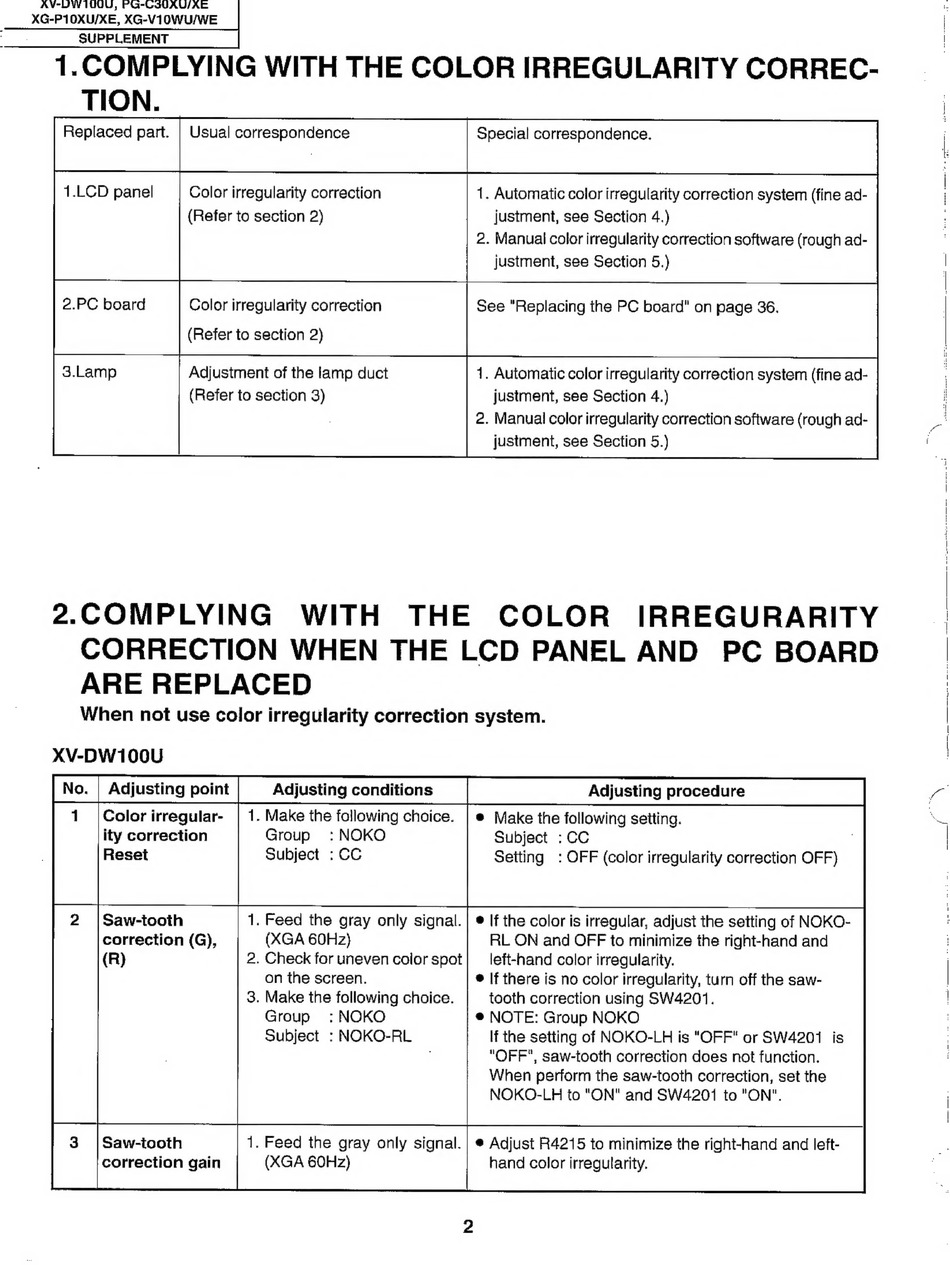

SUPPLEMENT
Replaced part. | Usual correspondence Special correspondence.
1.LCD panel Color irregularity correction
1. Automatic color irregularity correction system (fine ad-
(Refer to section 2) justment, see Section 4.)
2. Manual color irregularity correction software (rough ad-
justment, see Section 5.)
2.PC board
Color irregularity correction See "Replacing the PC board" on page 36.
(Refer to section 2)
Adjustment of the lamp duct
(Refer to section 3)
1. Automatic color irregularity correction system (fine ad-
justment, see Section 4.)
2. Manual color irregularity correction software (rough ad-
justment, see Section 5.)
When not use color irregularity correction system.
XV-DW100U
No. | Adjusting point Adjusting conditions Adjusting procedure
Color irregular- | 1. Make the following choice. | © Make the following setting.
ity correction Group :NOKO Subject : CC
Saw-tooth
correction (G),
(R)
1. Feed the gray only signal.
(XGA 60Hz}
2. Check for uneven color spot
on the screen.
3. Make the following choice.
Group :NOKO
Subject : NOKO-RL
@ If the color is irregular, adjust the setting of NOKO-
RL ON and OFF to minimize the right-hand and
left-hand color irregularity.
® If there is no color irregularity, turn off the saw-
tooth correction using SW4201.
@ NOTE: Group NOKO
If the setting of NOKO-LH is "OFF" or SW42071 is
"OFF", saw-tooth correction does not function.
When perform the saw-tooth correction, set the
NOKO-LH to "ON" and SW4201 to "ON".
Saw-tooth
correction gain
1. Feed the gray only signal.) @ Adjust R4215 to minimize the right-hand and left-
(XGA 60Hz) hand color irregutarity.
