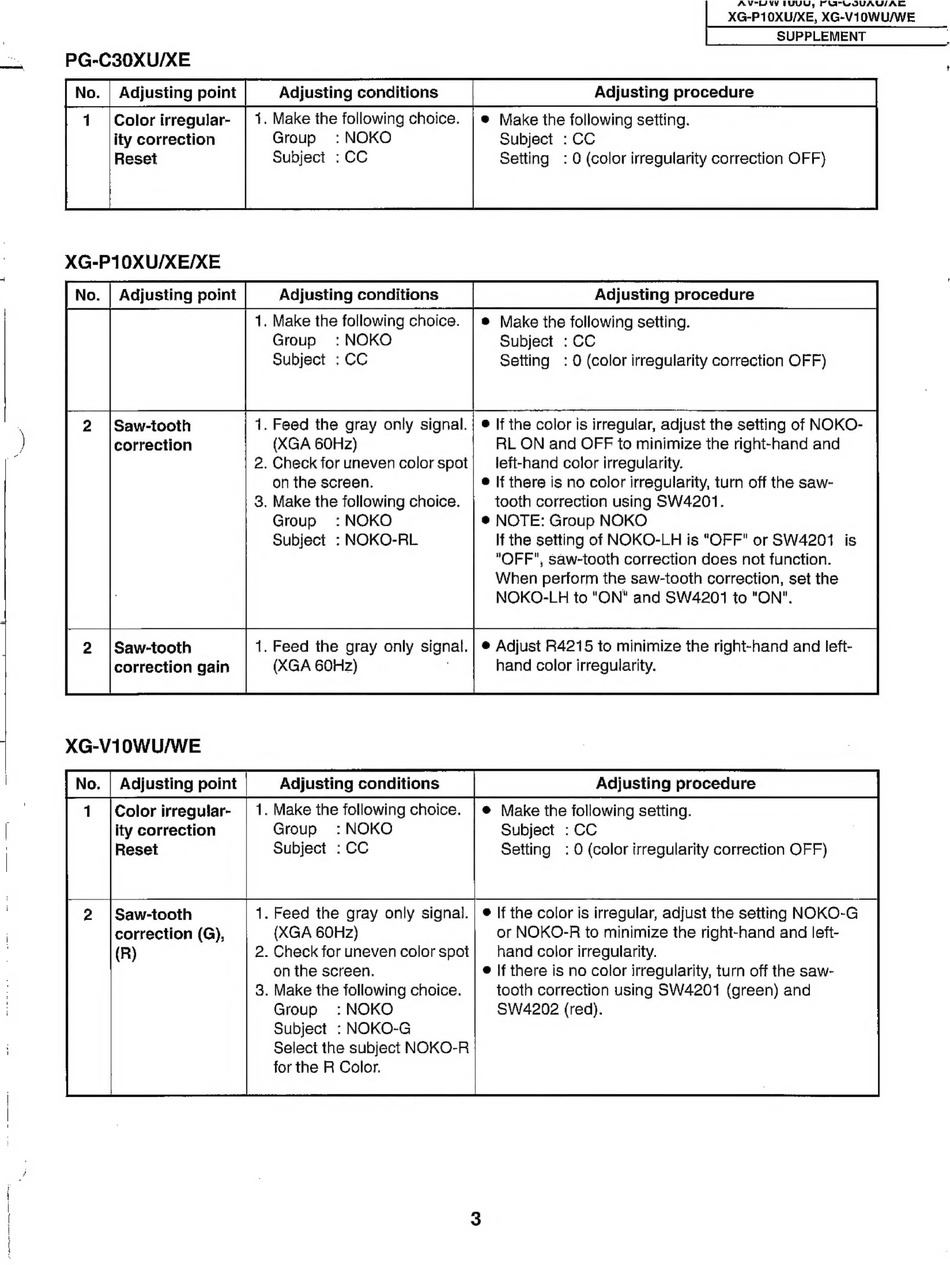

Sharp XV-DW100U Serviceanleitung Seite 3

'
AVS PUUU, PorwoVvAUIAL
XG-P10XU/XE, XG-VIOWU/AWE
SUPPLEMENT
PG-C30XU/XE
| No. Adjusting point Adjusting conditions Adjusting procedure
Color irregular- | 1. Make the following choice. | ¢ Make the following setting.
ity correction Group :NOKO Subject : CC
Reset Subject : CC Setting : 0 (color irregularity correction OFF)
XG-P10XU/XE/XE
| No. | Adjusting point Adjusting conditions Adjusting procedure
1. Make the following choice. | © Make the following setting.
Group :NOKO Subject : CC
Subject : CC Seiting : 0 (color irregularity correction OFF)
Saw-tooth . Feed the gray only signal. | @ If the color is irregular, adjust the setting of NOKO-
correction (XGA 60HZz) RL ON and OFF to minimize the right-hand and
. Check for uneven color spot] left-hand color irregularity.
on the screen. e If there is no color irregularity, turn off the saw-
. Make the following choice. tooth correction using SW4201.
Group :NOKO ® NOTE: Group NOKO
Subject : NOKO-RL If the setting of NOKO-LH is "OFF" or SW4201 is
"OFF", saw-tooth correction does not function.
When perform the saw-tooth correction, set the
NOKO-LH to "ON" and SW4201 to "ON".
Saw-tooth . Feed the gray only signal. @ Adjust R4215 to minimize the right-hand and left-
correction gain (XGA 60HZz) hand color irregularity.
XG-V10WU/WE
| No. | Adjusting point Adjusting conditions Adjusting procedure
Color irreguiar- | 1. Make the following choice. | @ Make the following setting.
ity correction Group :NOKO Subject :CC
Reset Subject : CC Setting : 0 (color irregularity correction OFF)
Saw-tooth . Feed the gray only signal. | @ If the color is irregular, adjust the setting NOKO-G
correction (G), (XGA 60Hz) or NOKO-R to minimize the right-hand and left-
(R) . Check for uneven color spot| hand color irregularity.
on the screen. ® |f there is no color irregularity, turn off the saw-
. Make the following choice. tooth correction using SW4201 (green) and
Group :NOKO SW4202 (red).
Subject : NOKO-G
Select the subject NOKO-R
for the R Color.
