SUPPLEMENT

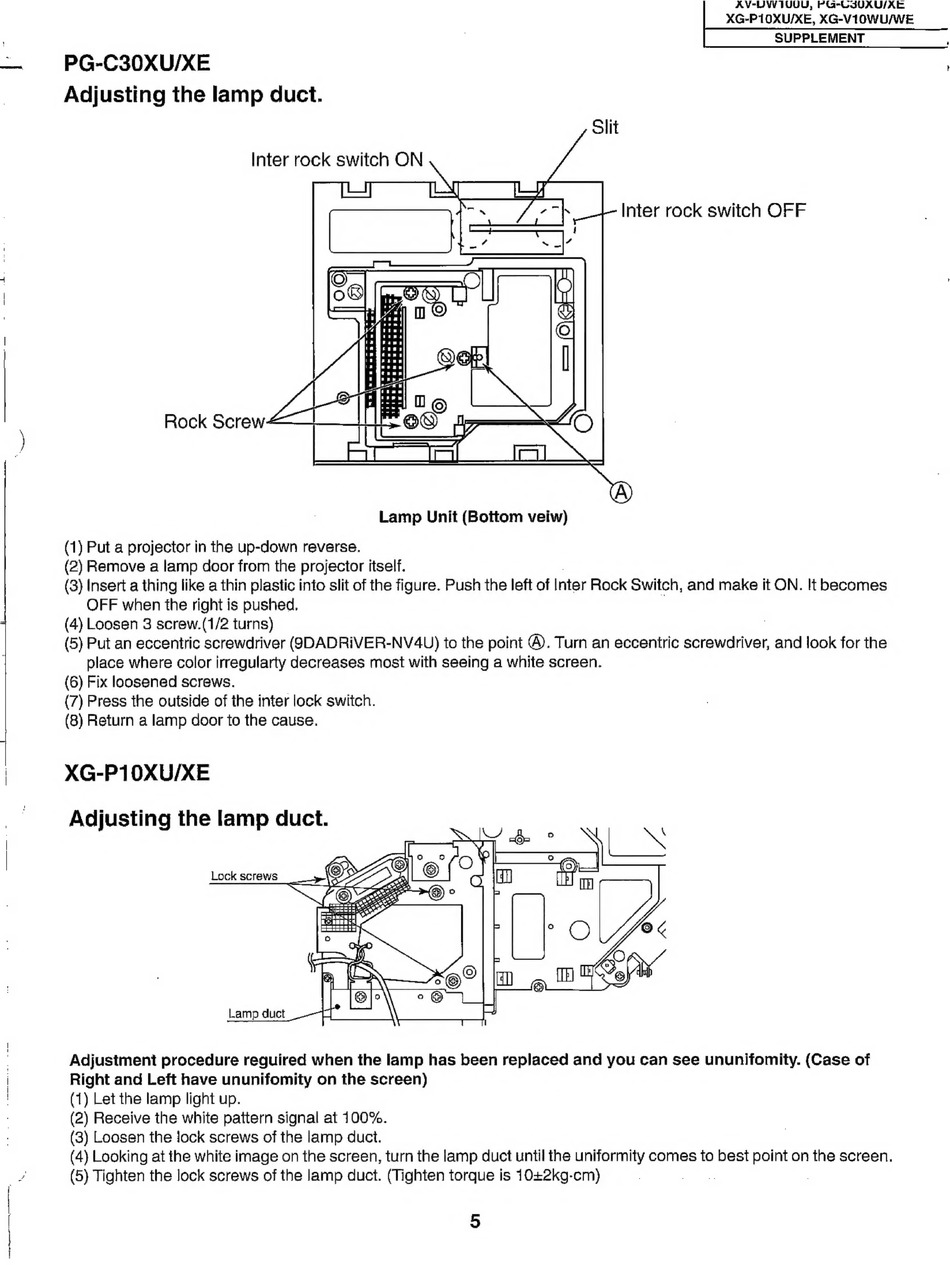

PG-C30XU/XE
Adjusting the lamp duct.
Slit
Inter rock switch ON
Inter rock switch OFF
Rock Screw#<_
Lamp Unit (Bottom veiw)
(1) Put a projector in the up-down reverse.
(2) Remove a lamp door from the projector itself.
(3) Insert a thing like a thin plastic into slit of the figure. Push the left of Inter Rock Switch, and make it ON. It becomes
OFF when the right is pushed.
(4) Loosen 3 screw.(1/2 turns)
(5) Put an eccentric screwdriver (QDADRIVER-NV4V) to the point @. Turn an eccentric screwdriver, and look for the
place where color irregularty decreases most with seeing a white screen.
(6) Fix loosened screws.
(7) Press the outside of the inter lock switch.
(8) Return a lamp door to the cause.
XG-P10XU/XE
Adjusting the lamp duct.
Lock screws
Lamp duct
Adjustment procedure reguired when the lamp has been replaced and you can see ununifomity. (Case of
Right and Left have ununifomity on the screen)
(1) Let the lamp light up.
(2) Receive the white pattern signal at 100%.
(3) Loosen the lock screws of the lamp duct.
(4) Looking at the white image on the screen, turn the lamp duct until the uniformity comes to best point on the screen.
(5) Tighten the lock screws of the lamp duct. (Tighten torque is 10+2kg-cm)
