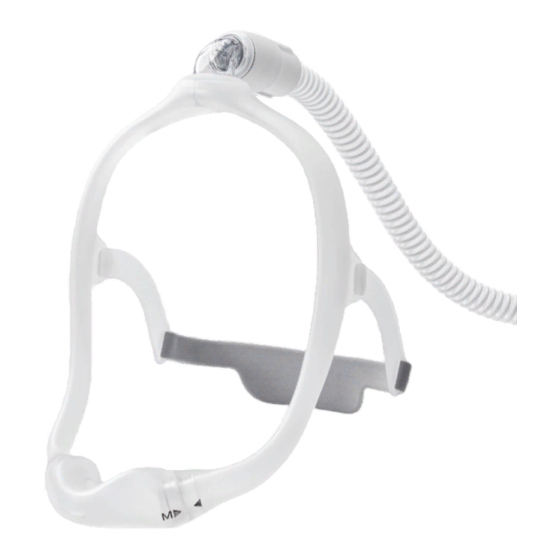

DreamWear
Gel Pillows Mask
Instructions for use - e
1 Safety Information
Intended Use
This mask is intended to provide an interface for application of CPAP or bi-level
therapy to patients. The mask is for single patient use in the home or multi-patient
use in the hospital/institutional environment. The mask is to be used on patients
(>66lbs/30kg) for whom CPAP or bi-level therapy has been prescribed.
Caution: U.S. Federal law restricts this device to sale by or on the order of a
physician.
Note: This mask is not made with natural rubber latex or DEHP.
Warnings
This mask is not intended for patients who are dependent on mechanical
ventilation for their life support.
Use of this mask while the system is not on and operating may cause
rebreathing of exhaled air. Rebreathing of exhaled air for longer than several
minutes can in some circumstances lead to suffocation.
• Discontinue use and contact your healthcare professional if any of the
following symptoms occur: skin redness, irritation, discomfort, blurred vision,
or drying of the eyes.
• Discontinue use and consult your healthcare professional if any of the
following symptoms occur: unusual chest discomfort, shortness of breath,
severe headache, eye pain or eye infections.
• Discontinue use and consult your healthcare professional if any of the
following symptoms occur: tooth, gum, or jaw soreness. Use of a mask may
aggravate an existing dental condition.
