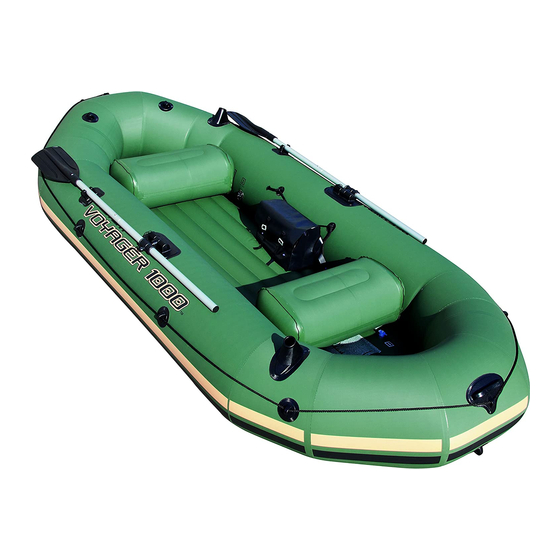

Bestway 65044 Bedienungsanleitung

Boat Oar
Hand Pump
Components:
• Deflation Pipe
• Heavy-duty repair patch
12
11
9
10
1 2 3
Heavy-duty Inflatable Inflatable
Handle Floor Cushion
7 8 9
Integrated Motor Mount Storage Bag
Fishing Grommet
Rod-Holder
EN ISO 6185 - 1 TYPE II
CATEGORY D
= 1.0 kw (1.4 hp) = 2 = 1
+ + = 270 kg (594.0 lbs.)
0.075 bar
HOLDER OF CERTIFICATE:
=
1.0875 psi
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD, 94/25/EC
2003/44/EC
SHANGHAI, 201812, CHINA
MANUFACTURER:
TYPE OF MODEL NUMBER : 65044
COUNTRY OF ORIGIN : CHINA
Design Category D "SHELTERED WATERS": Designed for voyages on sheltered coastal waters, small bays, small
lakes, rivers and canals when conditions up to, and including, wind force 4 and significant wave heights up to, and
including, 0,3m may be experienced, with occasional waves of 0,5m maximum height, for example from passing
vessels.
WARNING: To avoid damage to the boat and injury to passengers, please don't exceed the data given on the
builder's plate.
Technical Specifications
Recommended
Item Inflated Size
working pressure
2.91m x 1.27m
65044; 65056 0.075 bar
(115" x 50" )
IMPORTANT SAFETY INSTRUCTIONS
Follow all the Safety and Operating Instructions. If you don't follow these instructions, it may cause the boat to overturn
or explode and result in drowning.
1. Do not exceed the maximum recommended number of persons. Regardless of the number of persons on board, the
total weight of persons and equipment must never exceed the maximum recommended load. Always use the seats
/seating spaces provided.
2. When loading the craft, never exceed the maximum recommended load: Always load the craft carefully and distribute
loads appropriately to maintain design trim (approximately level). Avoid placing heavy weights high up.
NOTE: The maximum recommended load includes the weight of all persons onboard, all provisions and personal
effects, any equipment not included in the light craft mass, cargo (if any) and all consumable liquids (water, fuel, etc.).
3. When using the boat, life saving devices such as life jackets and buoys should be pre-inspected and used at all times.
4. Before every use, carefully inspect all boat components including air-chambers, grab ropes, oars, and air valves, to
All manuals and user guides at all-guides.com
Rope
• Inflation Scale • Screw Valve x 2
1
2
3
4
5
6
7
8
4 5
Oarlock Oar Clasp
10 11
Screw Valve Rope
Grommet
EN ISO 6185 - 1 TYPE II
CATEGORY D
= 1.0 kw (1.4 hp) = 2
+ + = 270 kg (594.0 lbs.)
0.075 bar
HOLDER OF CERTIFICATE:
=
1.0875 psi
BESTWAY INFLATABLES &
MATERIAL CORP.
NO.3065 CAOAN ROAD,
SHANGHAI, 201812, CHINA
MANUFACTURER:
TYPE OF MODEL NUMBER : 65056
COUNTRY OF ORIGIN : CHINA
Maximum load Maximum number Maximum motor
capacity of persons
270 kg (594 Ibs.) 2 adults + 1 child 1.0 kw (1.4 hp)
Warning
ensure everything is in good condition and tightly secured. If you find any damage, please stop to repair it.
5. Buckets, water scoops and air pumps should always be available in case of air leakage or if the boat takes on water.
6. When the boat is in motion, all passengers must remain seated at all times to avoid falling overboard. Keep the boat
balanced. Uneven distribution of persons or load in the boat may cause the boat to overturn and result in drowning.
7. Use the boat near the shore and beware of natural factors such as wind, tide waters and tidal waves.
BE AWARE OF OFFSHORE WINDS AND CURRENTS.
8. If one chamber is punctured when the boat is in the water, it may be necessary to fully inflate the other air chamber
to prevent the boat from sinking.
9. Be careful when landing on the shore. Sharp and rough objects such as rocks, cement, shells, glass, etc. may
puncture the boat. To avoid damage, do not drag the boat on rough surfaces.
10. When choosing an outboard motor, refer to the technical specifications section of this manual to determine
acceptable horsepower ratings.
11. For electrical motors equipped with batteries, note that battery acid can be caustic, which can cause damage to both
skin and boat materials.
12. For motors which use fuels such as gas, oil or petrol, since fuel is a flammable substance, it should be kept away
from open flames. Further, clean the boat material immediately if fuel spatters onto the boat surface. Be aware of the
potential harmful effects of liquids such as battery acid, oil or petrol.The liquids may damage your boat.
13. Inflate according to the numbered air chamber and rated pressure of the boat, or it will cause over-inflation and
potential and boat explosion. Exceeding the data given on the capacity plate may cause the craft to be damaged,
overturn and lead to drowning.
14. If you use the tow rings to tow the boat, go slowly to avoid over-towing as damage may occur.
15. Know how to operate a boat. Check in your local area for information and/or training as needed. Inform yourself
about local regulations and dangers related to boating and/or other water activities.
Inflation
NEVER USE HIGH PRESSURE AIR TO INFLATE INFLATABLES. THIS CAN DAMAGE YOUR PRODUCT AND VOID
YOUR WARRANTY
1. Screw Valve
Screw the screw valve onto the air intake valve on the boat. Open the top cover of the screw valve, insert the inflation
hose and inflate. Once inflation is finished, fasten the top cover of the screw valve.
If over inflation occurs, open the top cover of the screw valve, simply use the provided deflation pipe to deflate slightly.
Hold the pipe until the desired pressure is reached and then fasten the top cover of the screw valve.
2. Safety Valve
Open the safety valves and inflate. Close the safety
valves after inflation and press them into the air
chambers.
When inflating your boat, never let anyone sit, step or
even lean on the boat.
#65044
#65056
6
Deflation
1. Screw Valve
Oar
Unscrew the screw valve from the boat.
12
Safety-grab
Rope
Assembling of the boat
NEVER USE THE AIR PRESSURE MACHINE TO INFLATE
• Spread the boat on a level and even ground.
= 1
• Inflate the air chambers with a HAND air pump.
• Pay careful attention to the inflation pressure gauge during inflation. An inflation scale is provided with the product.
Inflate the product until the printed scale is charged up to the same level as that of the supplied scale. (refer the
belowing Table and Illustration)
Caution: Under and over-inflation of the boat will result in safety hazards. It is better to check the pressure of the boat
each time before using. If you use other pressure gauge, the boat pressure should not be more than 0.075 bar.
• Never stand on or rest objects on the boat during inflation.
• Inflate bottom chamber and other accessories such as seat until it is stiff to the touch but NOT hard.
94/25/EC
2003/44/EC
Item Product Inflated Size
65044; 65056
2.91m x 1.27m (115" x 50")
power
1
SAVE THESE INSTRUCTIONS
2. Safety Valve
Pull out the safety valves from the air chambers. Open the safety
valves and pinch the bottom to deflate.
Deflated Size
10cm
NOTE: All drawings for illustration purpose only. May not reflect
actual product.
Inflated Size
10.4cm
