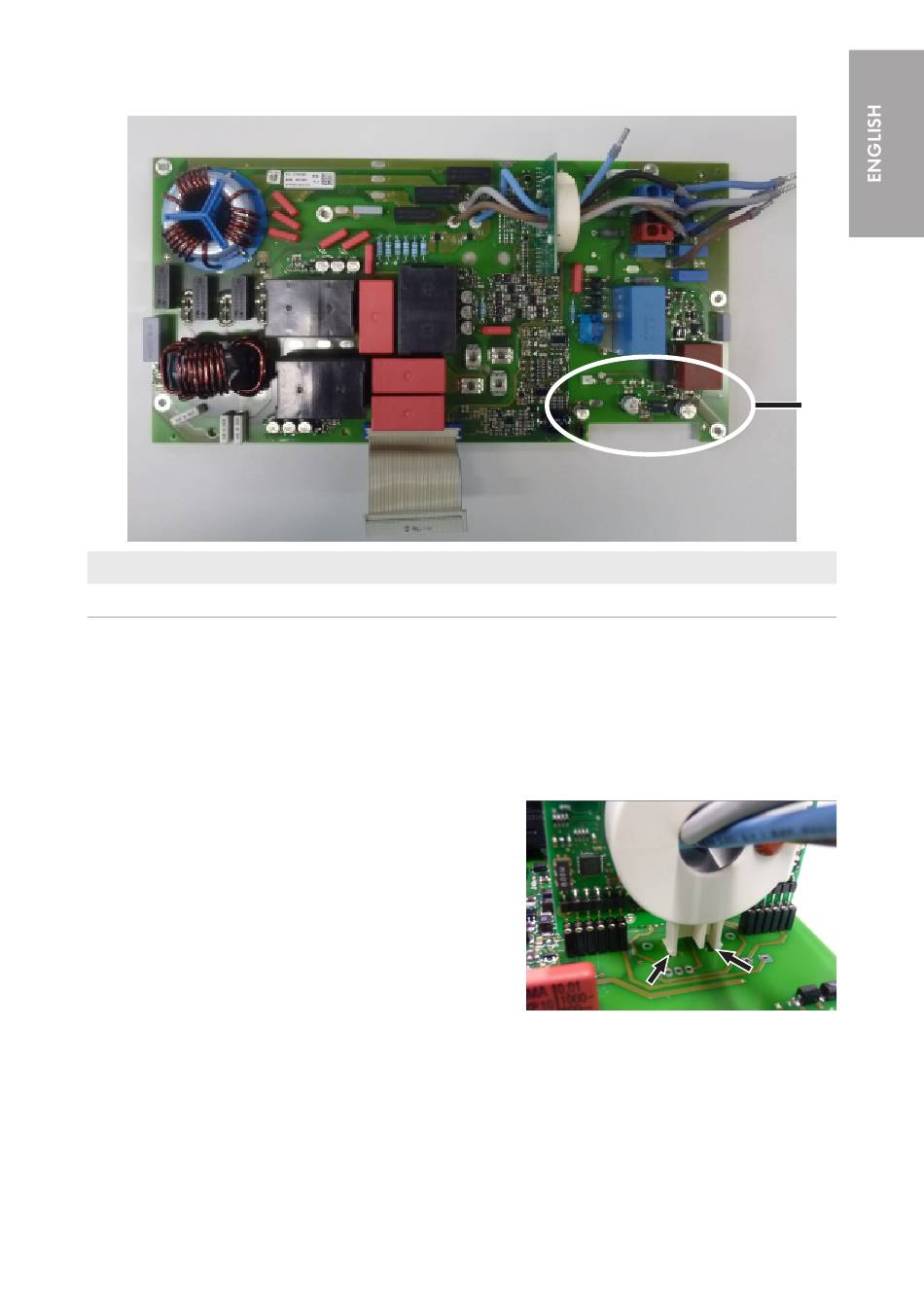

Position Designation
A SELV circuit
Procedure:
1. Disconnect the inverter from all voltage sources (see Section 5, page 11).
2. Check the SELV circuits for visible dirt before mounting the assembly. If dust or other deposits
cover the assembly, do not use it and contact the Service.
3. If the new AC-CON is delivered without RCMU, mount the old RCMU on the new AC-CON:
• Align the RCMU and lead the 4 AC-CON cables through the opening of the RCMU.
• Plug the locking tabs of the RCMU into the
mounting holes of the AC-CON. When doing
so, the RCMU snaps into place in the mounting
holes.
• Ensure that the RCMU is securely attached.
