Test pressure
MAX. 25 bar
Warning

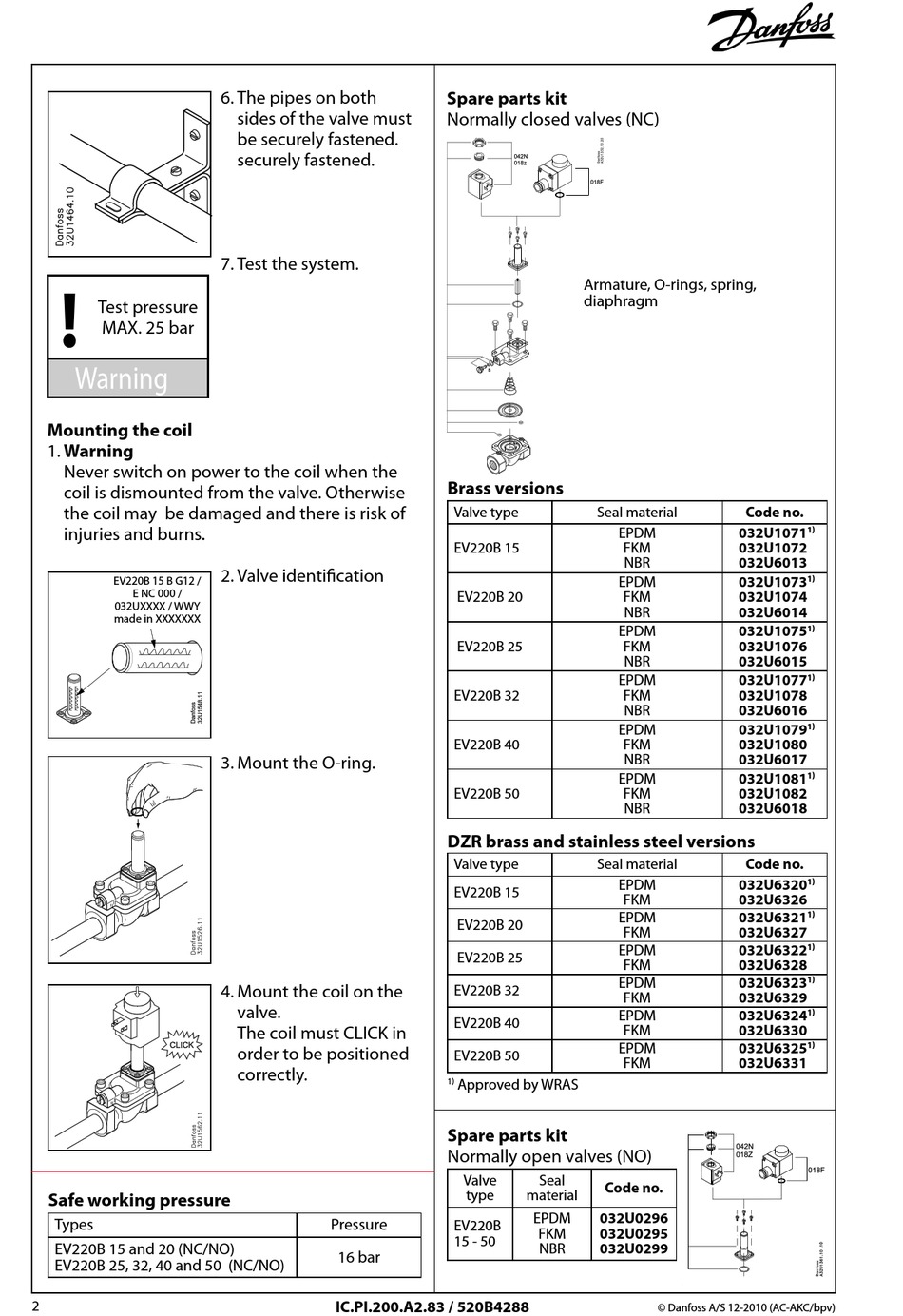

Mounting the coil
1. Warning
Never switch on power to the coil when the
coil is dismounted from the valve. Otherwise
the coil may be damaged and there is risk of
injuries and burns.
EV220B 15 B G12 /
E NC 000 /
032UXXXX / WWY
made in XXXXXXX
Safe working pressure
Types
EV220B 15 and 20 (NC/NO)
EV220B 25, 32, 40 and 50 (NC/NO)
2
6. The pipes on both
sides of the valve must
be securely fastened.
securely fastened.
7. Test the system.
2. Valve identi cation
3. Mount the O-ring.
4. Mount the coil on the
valve.
The coil must CLICK in
order to be positioned
correctly.
Pressure
16 bar
IC.PI.200.A2.83 / 520B4288
Spare parts kit
Normally closed valves (NC)
Armature, O-rings, spring,
diaphragm
Brass versions
Valve type
Seal material
EV220B 15
EV220B 20
EV220B 25
EV220B 32
EV220B 40
EV220B 50
DZR brass and stainless steel versions
Valve type
Seal material
EV220B 15
EV220B 20
EV220B 25
EV220B 32
EV220B 40
EV220B 50
1)
Approved by WRAS
Spare parts kit
Normally open valves (NO)
Valve
Seal
Code no.
type
material
EPDM
032U0296
EV220B
FKM
032U0295
15 - 50
NBR
032U0299
Code no.
EPDM
032U1071
FKM
032U1072
NBR
032U6013
EPDM
032U1073
FKM
032U1074
NBR
032U6014
EPDM
032U1075
FKM
032U1076
NBR
032U6015
EPDM
032U1077
FKM
032U1078
NBR
032U6016
EPDM
032U1079
FKM
032U1080
NBR
032U6017
EPDM
032U1081
FKM
032U1082
NBR
032U6018
Code no.
EPDM
032U6320
FKM
032U6326
EPDM
032U6321
FKM
032U6327
EPDM
032U6322
FKM
032U6328
EPDM
032U6323
FKM
032U6329
EPDM
032U6324
FKM
032U6330
EPDM
032U6325
FKM
032U6331
© Danfoss A/S 12-2010 (AC-AKC/bpv)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
1)
