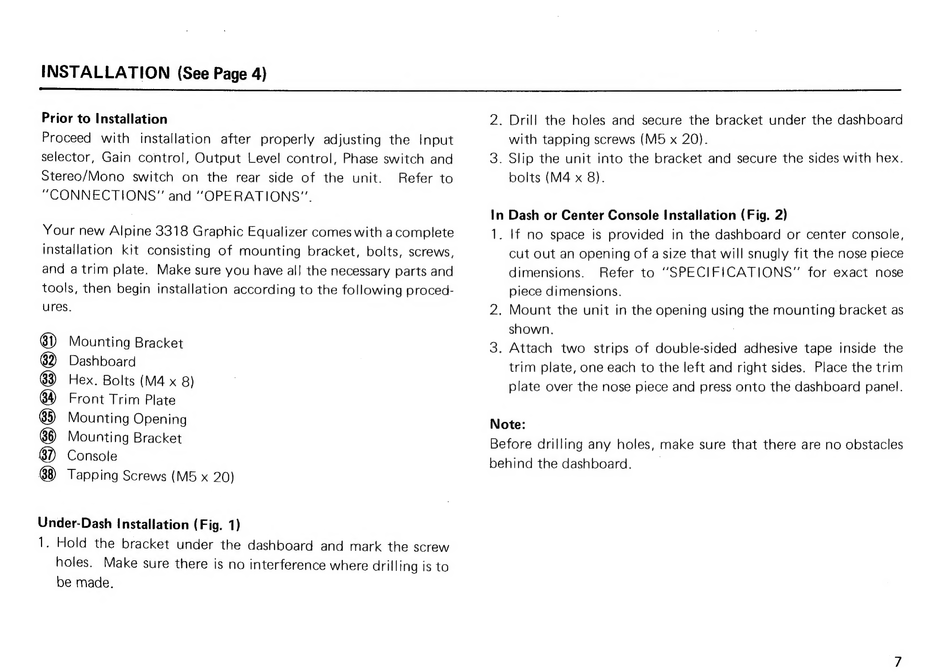

Alpine 3318 Bedienungsanleitung Seite 7

Prior to Installation
87) Console
SOOSee9
2. Drill the holes and secure the bracket under the dashboard
with tapping screws (M5 x 20).
3. Slip the unit into the bracket and secure the sides with hex.
bolts (M4 x 8).
In Dash or Center Console Installation (Fig. 2)
1. If no space is provided in the dashboard or center console,
cut out an opening of a size that will snugly fit the nose piece
dimensions. Refer to "SPECIFICATIONS" for exact nose
piece dimensions.
2. Mount the unit in the opening using the mounting bracket as
shown.
3. Attach two strips of double-sided adhesive tape inside the
trim plate, one each to the left and right sides. Place the trim
plate over the nose piece and press onto the dashboard panel.
Note:
Before drilling any holes, make sure that there are no obstacles
behind the dashboard.
