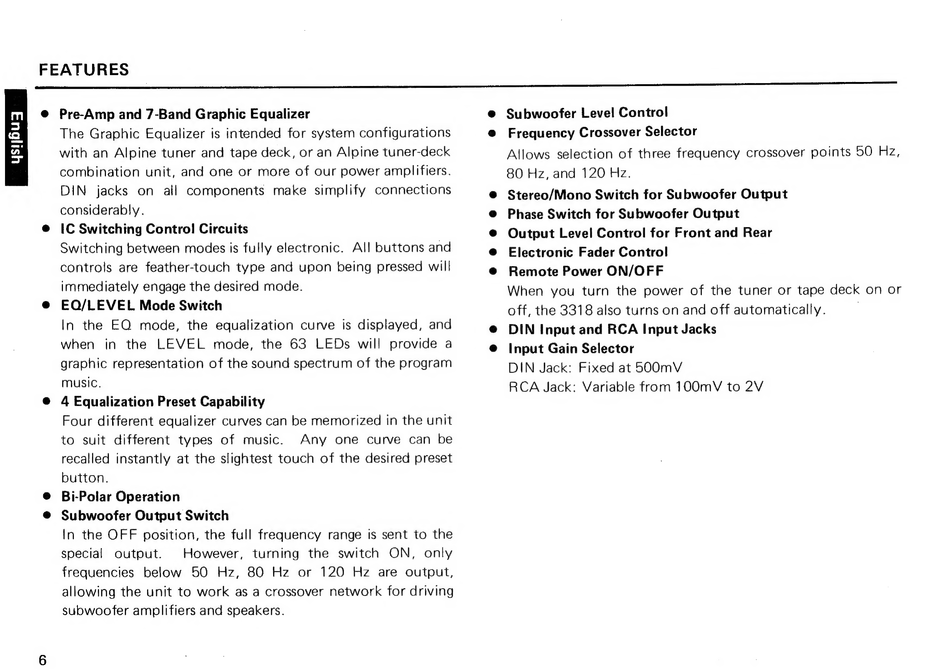

FEATURES
Pre-Amp and 7-Band Graphic Equalizer
The Graphic Equalizer is intended for system configurations
with an Alpine tuner and tape deck, or an Alpine tuner-deck
combination unit, and one or more of our power amplifiers.
DIN jacks on all components make simplify connections
considerably.
IC Switching Control Circuits
Switching between modes is fully electronic. All buttons and
controls are feather-touch type and upon being pressed will
immediately engage the desired mode.
EQ/LEVEL Mode Switch
In the EQ mode, the equalization curve is displayed, and
when in the LEVEL mode, the 63 LEDs will provide a
graphic representation of the sound spectrum of the program
music.
4 Equalization Preset Capability
Four different equalizer curves can be memorized in the unit
to suit different types of music. Any one curve can be
recalled instantly at the slightest touch of the desired preset
button.
Bi-Polar Operation
Subwoofer Output Switch
In the OFF position, the full frequency range is sent to the
special output. However, turning the switch ON, only
frequencies below 50 Hz, 80 Hz or 120 Hz are output,
allowing the unit to work as a crossover network for driving
subwoofer amplifiers and speakers.
Stereo/Mono Switch for Subwoofer Output
Phase Switch for Subwoofer Output
Output Level Control for Front and Rear
Electronic Fader Control
Remote Power ON/OFF
DIN Input and RCA Input Jacks
Input Gain Selector
DIN Jack: Fixed at 500mV
RCA Jack: Variable from 100mV to 2V
