5.0 Features and nomenclature – JWL-1015/1015VS lathes
1. Headstock
2. Headstock handwheel
3. Index pin
4. Speed chart
5. Upper pulley access door
6. Spindle pulley
7. Spur center
8. Tool Rest
9. Tailstock lock handle
10. Tailstock quill lock handle
11. Tailstock handwheel
12. Tailstock
All manuals and user guides at all-guides.com

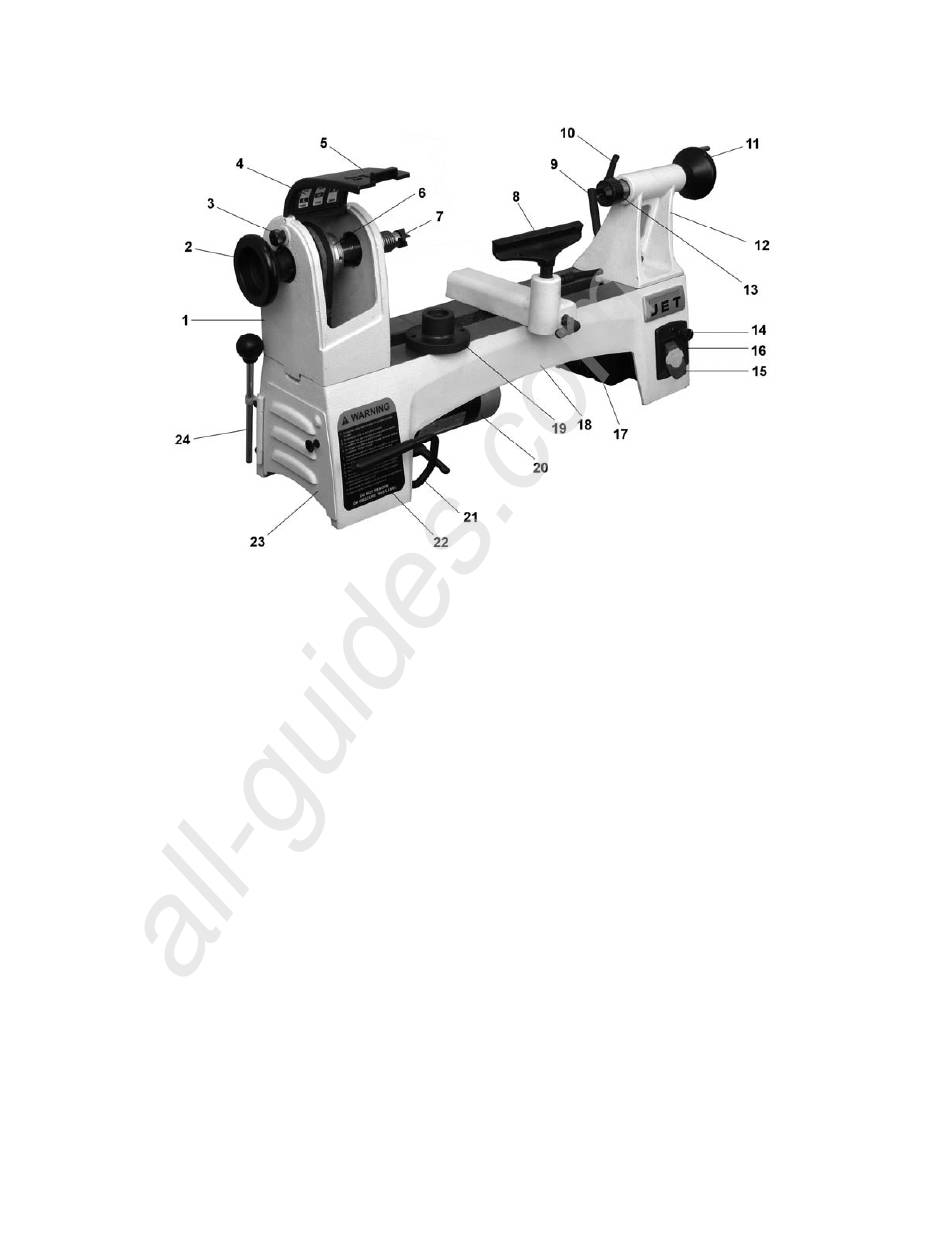

Figure 1: Variable speed model shown
6
13. Live center
14. Variable speed dial (potentiometer)
15. On/Off switch with safety key
16. LED light
17. Controller assembly
18. Bed assembly
19. Face plate 3"
20. DC motor
21. Belt tension handle
22. Warning label
23. Lower pulley access door
24. Knockout rod
