(D)

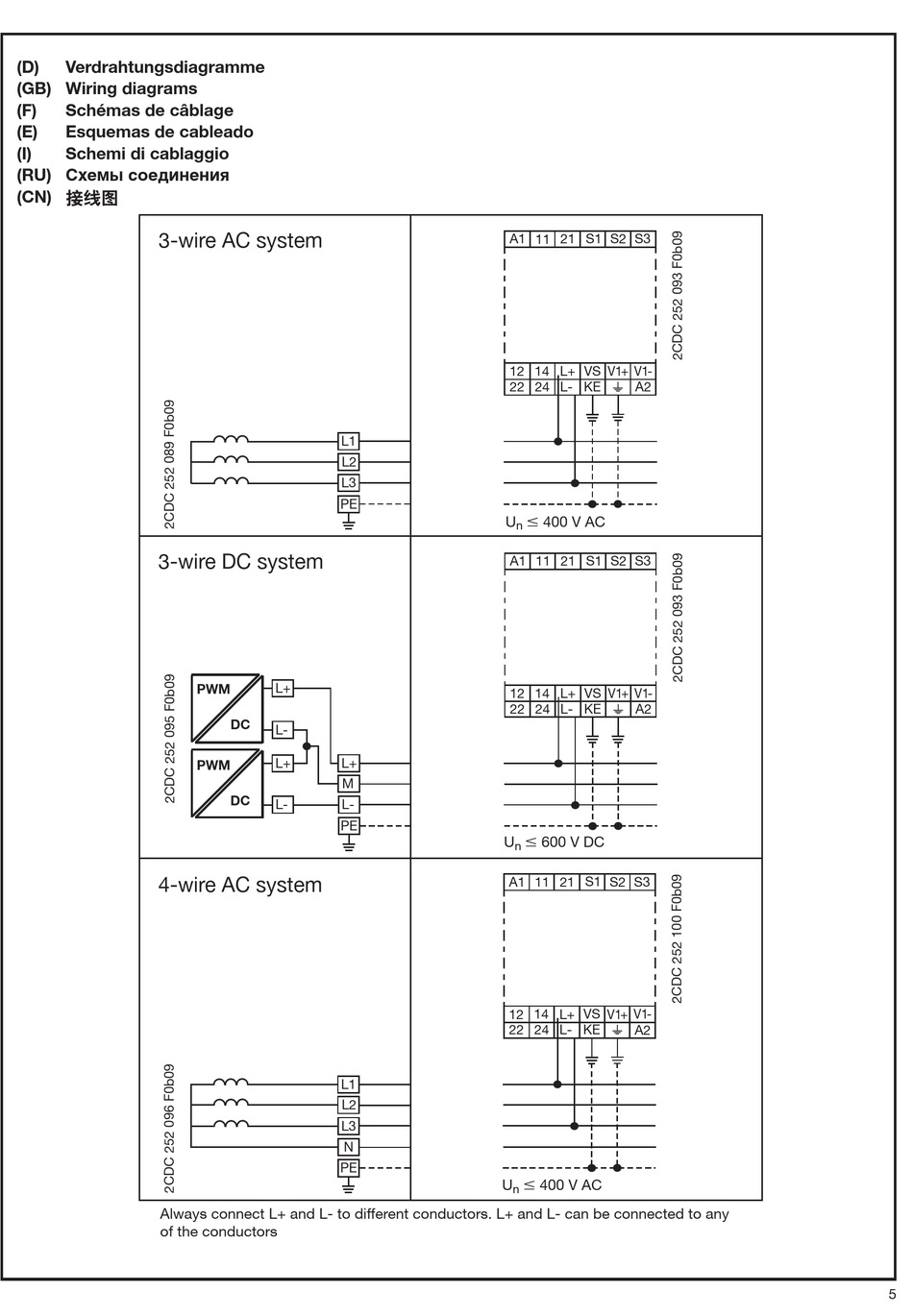

Verdrahtungsdiagramme
(GB) Wiring diagrams
(F)
Schémas de câblage
(E)
Esquemas de cableado
(I)
Schemi di cablaggio
(RU)
(CN)
3-wire AC system
3-wire DC system
4-wire AC system
Always connect L+ and L- to different conductors. L+ and L- can be connected to any
of the conductors
L1
L2
L3
PE
L+
PWM
DC
L-
L+
L+
PWM
M
DC
L-
L-
PE
L1
L2
L3
N
PE
A1 11
21 S1
S2 S3
12 14
L+ VS
V1+
V1-
w
22 24 L- KE
A2
U
400 V AC
n
A1 11
21 S1
S2 S3
12 14
L+ VS
V1-
V1+
w
22 24 L- KE
A2
U
600 V DC
n
A1 11
21 S1
S2 S3
12 14
L+ VS
V1+
V1-
w
22 24 L- KE
A2
U
400 V AC
n
5
