POWER SWITCH

• This equipment is supplied with a 32 A EN 60309-1 socket and should only be used on a three phase, 400 V (50-60 Hz), four wire, earthed electrical
system. The actual absorbed current (I1eff) for optimal operating conditions is indicated on the equipment. Check that the power supply and its safe-
guards (fuses and/or circuit breakers) are compatible with the current required to use the machine. For optimum functionality in certain countries, it
may be necessary to change the plug.
• The power source is designed to operate at 400 V +/- 15%. • The machine will go into protection mode if the supply voltage falls below 330 Veff (rated
insulation voltage) or goes above 490 Veff, (an error code will appear on the display screen).
• To switch the machine on, turn the on/off switch (I-1) to position I, whereas switching it off is done by turning the switch to position 0. Caution! Never
disconnect the machine from the power supply while the machine is charging.
• Ventilation fan performance: This equipment is fitted with smart ventilation management system in order to minimise the noise made by the machine.
The fans will adjust their speed according to useage and the surrounding temperature. They can be switched off in MIG or TIG mode.
CONNECTING TO A POWER SOURCE
This equipment can be operated with electric generators provided that the auxiliary power supply meets the following requirements:
- The voltage must be alternating with an RMS value of 400 V +/- 15% and a peak voltage of less than 700 V.
- The frequency must be between 50 and 60 Hz.
It is vital to check these conditions as many generators produce high voltage peaks that can damage equipment.
USING EXTENSION LEADS
All extension leads must be of a suitable length and width that is appropriate to the equipment's voltage. Use an extension lead that complies with
national safety regulations.
Input voltage
400 V

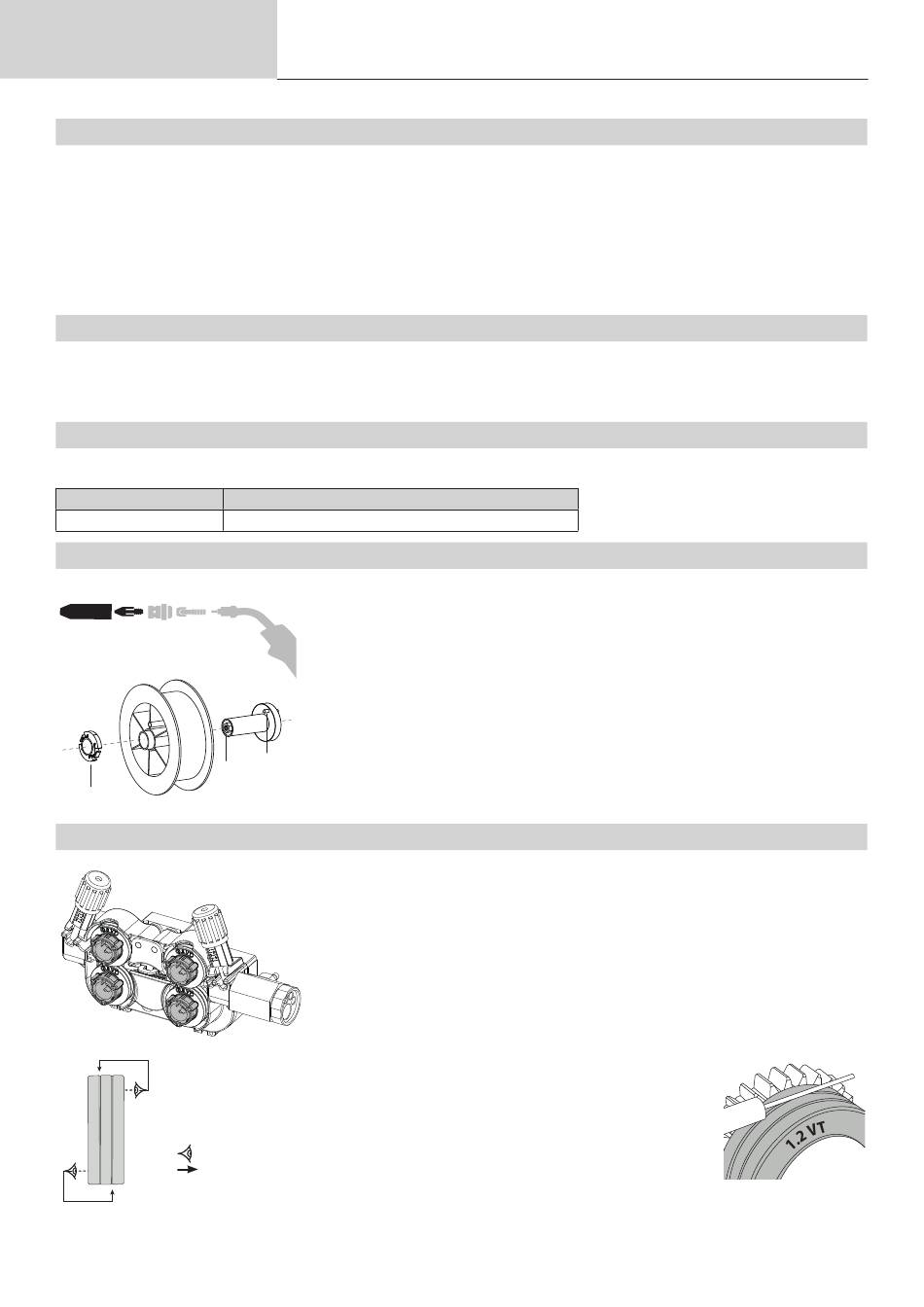

SETTING UP THE REEL
a b
a
LOADING THE FILLER WIRE
a
b
- Check the inscription on the roller to ensure that the rollers are suitable for the wire diameter and
the wire material (for a Ø 1.2 wire, use the Ø 1.2 groove).
- Use V-grooved rollers for steel and other hard wires.
- Use U-grooved rollers for aluminium and other soft, alloyed wires.
: visible inscription on the roller (example: 1.2 VT)
: groove to use
26
Translation of the original
instructions
Length - Size of the extension cord (Length < 45m)
4 mm²
- Remove the nozzle (a) and contact tube (b) from your MIG/MAG torch.
Open the power source's hatch.
- Position the reel on its holder.
- Take into consideration the reel stands's drive lug (c). To fit a 200 mm reel, tighten the
plastic reel holder (a) to the maximum.
c
b - Adjust the brake wheel (b) to prevent the non-moving spool from tangling the wire when
the welding stops. In general, do not overtighten, as this will cause the motor to overheat.
a
To change the rollers, do the following:
- Loosen the knobs (a) to the maximum and lower them.
- Unlock the rollers by turning the retaining rings (b) by a quarter turn.
- Fit the correct drive rollers for your use and lock the retaining rings in place.
The rollers supplied are double groove steel rollers (1.0 and 1.2).
NEOPULSE 320 C
