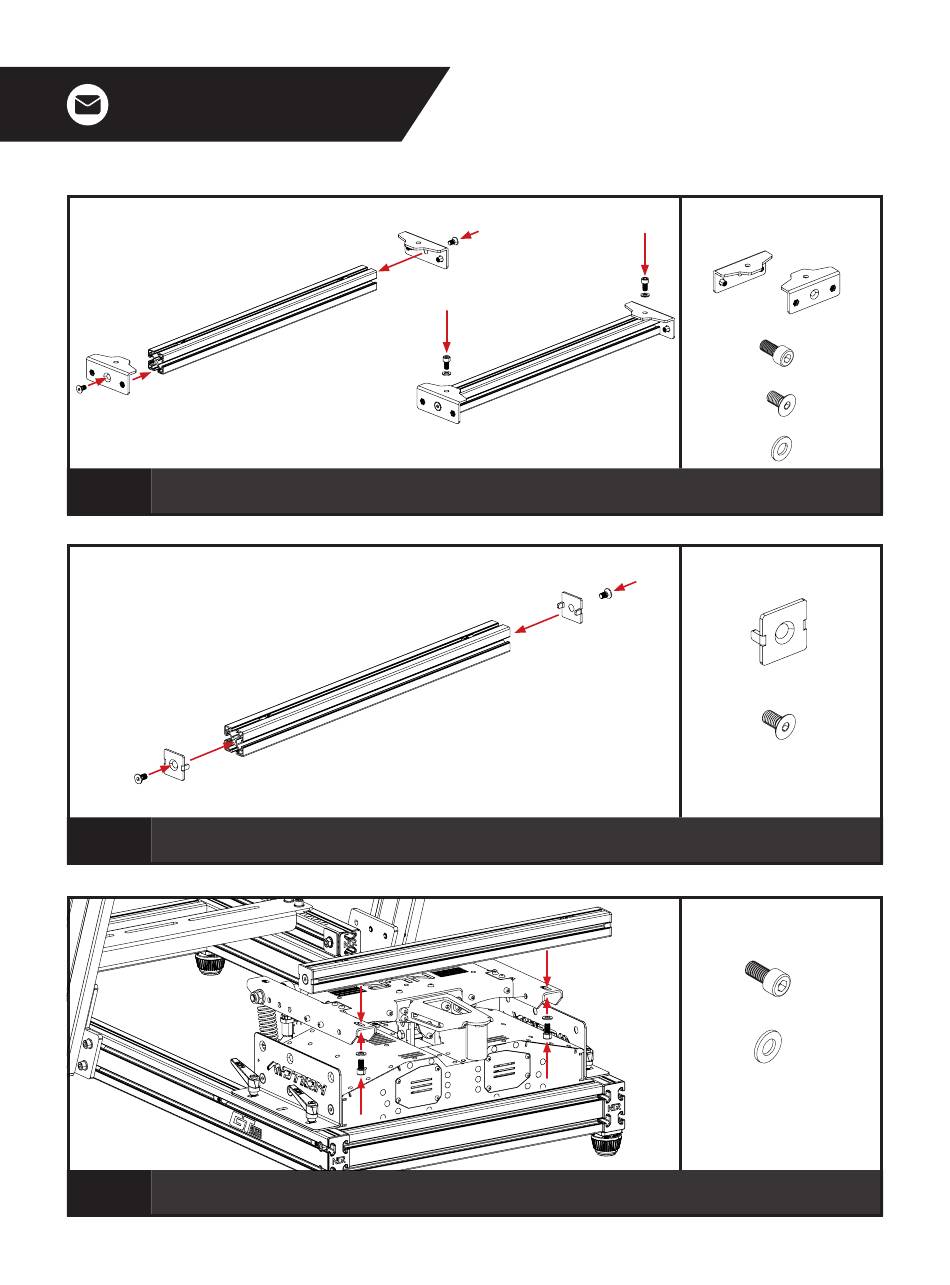

40 A) Align the holes on the Flight Arm Mounting Plates with the T-Nuts previously installed in Step 39 (and the threaded holes on
the front seat slider member). Bolt through the countersunk holes and secure with 2 x Countersunk bolts.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
41
Align the countersunk holes on the Extrusion End Plates with the threaded holes on the rear Seat
Slider. Bolt through and secure with 2 x M8 Countersunk Bolts.
42
Align the Rear Seat Slider assembly with the mounting slots on the Next Level Racing Motion V3
platform. Bolt through and secure with 2 x M8 Bolts and Washers.
)
B
24
PARTS:
• • 2 x Flight Arm Mounting Plates
• • 2 x M8 16mm Bolts
• • 2 x M8 Countersunk Bolts
• • 2 x M8 Washers
PARTS:
• • 2 x Extrusion End Plates
• • 2 x M8 Countersunk Bolts
PARTS:
• • 2 x M8 16mm Bolts
• • 2 x M8 Washers
