Centre Hotas Pole - Next Level Racing ELITE Serie Montageanleitung

)
A
Repeat
on Other
Side
13

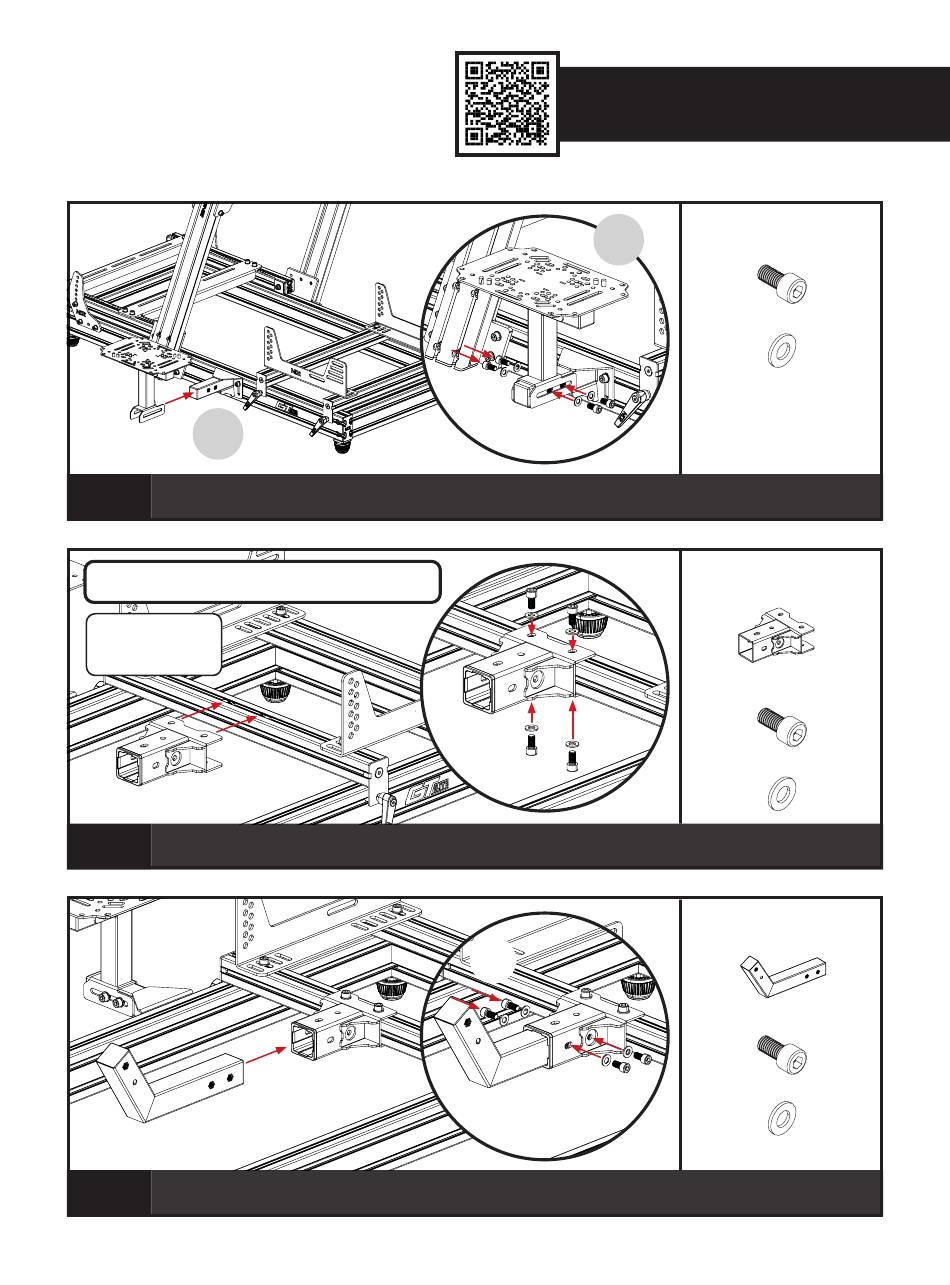

A) Align the slots on the Flight Arm assembly with the threaded inserts on the Flight Arm Mount.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
CENTRE HOTAS POLE INSTALLATION
For instructions on
how to install T-Nuts
go to Steps 7 to 10
)
A
14 A) Align the holes on the Centre Pole Adaptor with the T-Nuts previously installed in Step 8(b).
B) Bolt through and secure with 4 x M8 Bolts and Washers.
)
A
15
A) Align the holes on the Centre Pole Mounting Arm with the holes on the Centre Pole Adaptor.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
)
B
)
B
)
B
15
Video Instruction: bit.ly/nlrbuild
PARTS:
Repeat
on Other
• • 4 x M8 16mm Bolts
Side
• • 4 x M8 Washers
PARTS:
• • 1 x Centre Pole Adaptor
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Centre Pole Mounting Arm
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
