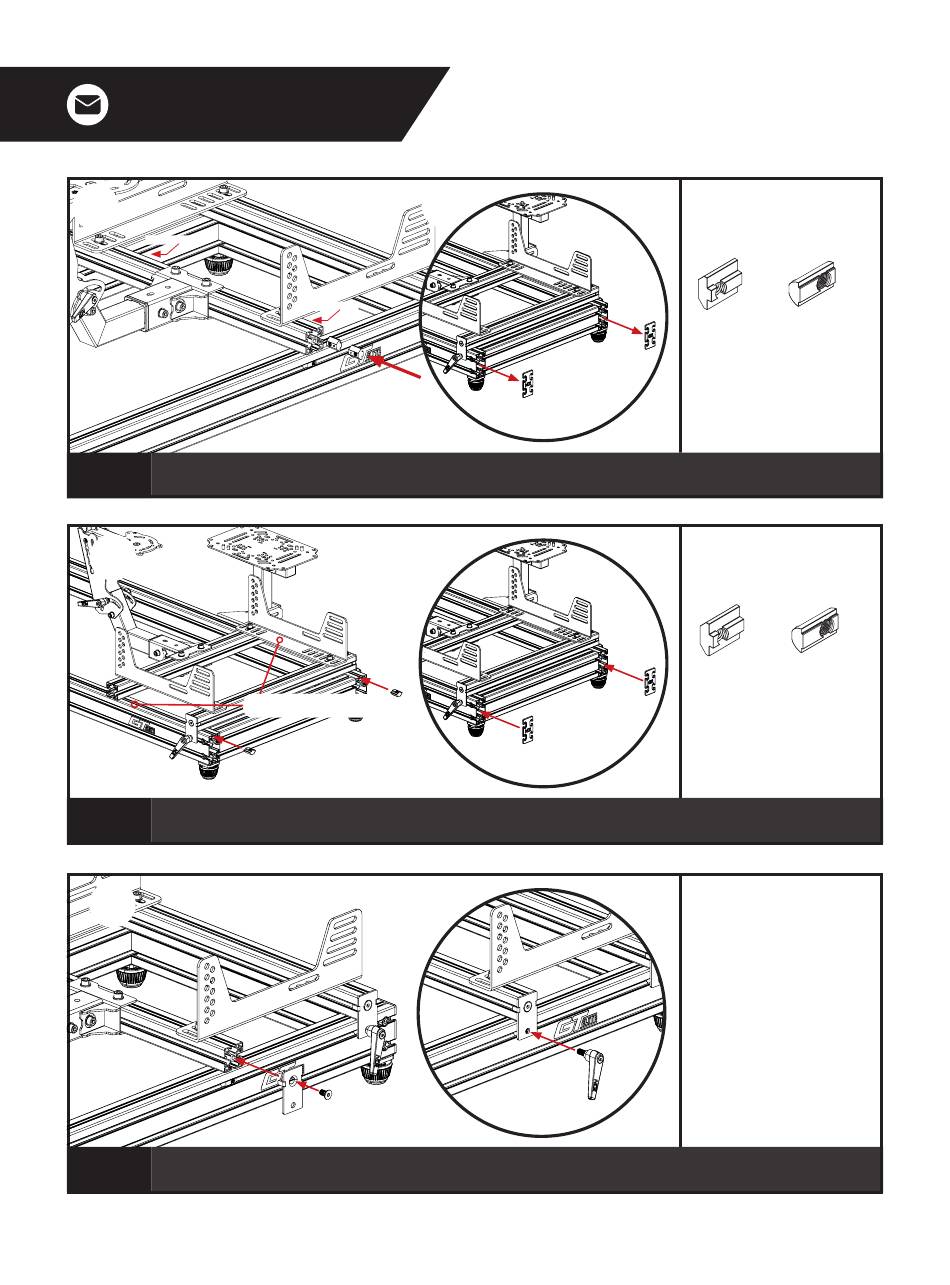

T-Nut Location
22 A) Install 2 x T-Nuts into the side channel and slide them to the marked locations.
B) Uninstall the End Caps from the back of the Base Members.
)
A
(T-Nut Location)
23
A) Install 1 x T-Nut into the top channel of each Side Member. Slide T-Nuts to the marked location.
B) Install End Caps previously uninstalled in Step 22(b).
)
A
24
A) Install the Countersunk Bolts and End Plate previously uninstalled in Step 21(b).
B) Install Ratchet Handle previously uninstalled in Step 21(a).
)
B
( )
T-Nut Location
)
B
)
B
18
PARTS:
• • 2 x T-Nuts
(Use T-Nuts compatible with the channel of your cockpit)
OR
PARTS:
• • 2 x T-Nuts
(Use T-Nuts compatible with the channel of your cockpit)
OR
PARTS:
• • NIL
