Yoke Plate Installation; For Side Mount Cockpits - Next Level Racing ELITE Serie Montageanleitung

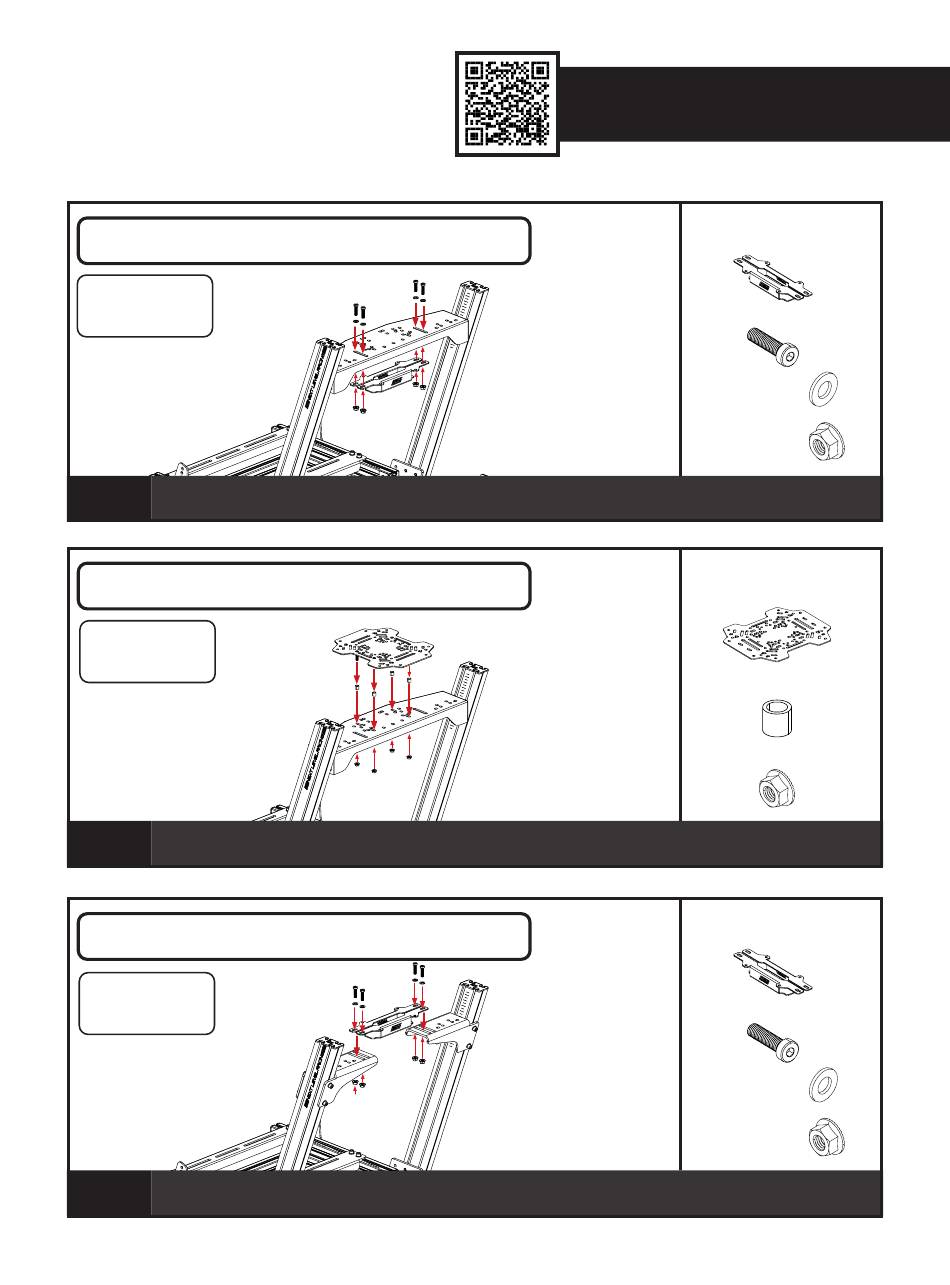

SPACER PLATE INSTALLATION (Wheel Plate)
(Recommended for
Yokes with
Mounting Clamps)
01
Align the slots on the Spacer Plate with the mounting holes on the Wheel Plate.
Bolt through and secure with 4 x M8 Bolts, Flange Nuts and Washers.
YOKE PLATE INSTALLATION (Wheel Plate)
(Recommended for
Bottom Mounted
Yokes)
02
Install 4 x Nylon Spacers on the Yoke Plate's pressed studs and align the assembly with the holes on
the Wheel Plate. Bolt through and secure with 4 x M6 Flange Nuts.
SPACER PLATE INSTALLATION (Side Mount)
(Recommended for
Yokes with
Mounting Clamps)
03
Align the slots on the Spacer Plate with the slots on the cockpit Mounting Arms.
Bolt through and secure with 4 x M8 Bolts, Washers and Flange Nuts.
Video Instruction: bit.ly/nlrbuild
11
PARTS:
• • 1 x Spacer Plate
• • 4 x M8 35mm Low Profile Bolts
• • 4 x M8 Washers
• • 4 x M8 Flange Nuts
PARTS:
• • 1 x Yoke Plate
• • 4 x Nylon Spacers
• • 4 x M6 Flange Nuts
PARTS:
• • 1 x Spacer Plate
• • 4 x M8 35mm Low Profile Bolts
• • 4 x M8 Washers
• • 4 x M8 Flange Nuts
