Next Level Racing ELITE Serie Montageanleitung Seite 14

support@nextlevelracing.com
`
)
A

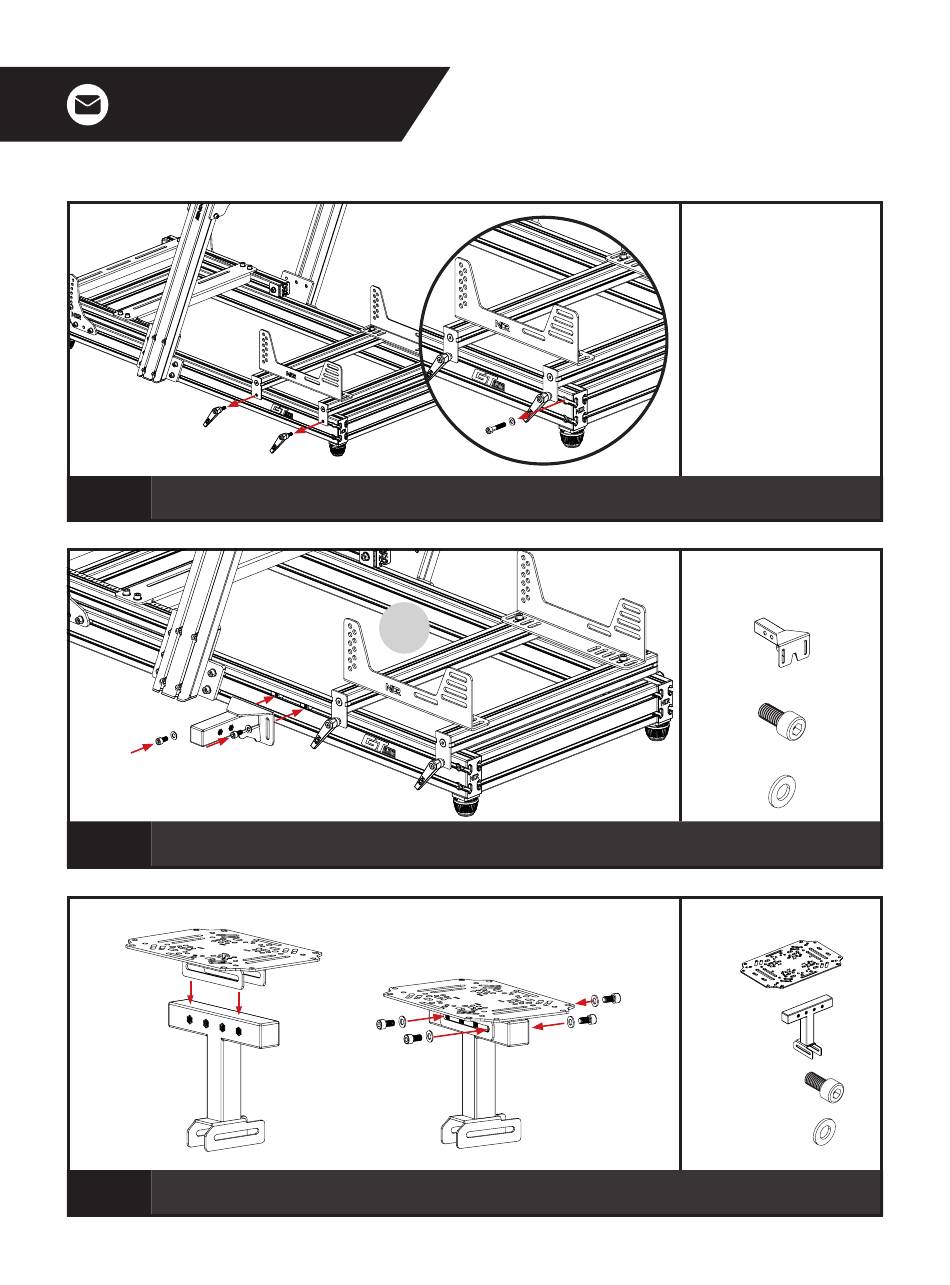

10
A) Install the Ratchet Handles previously uninstalled in Step 5(b).
B) Install the Bolts and Washers previously uninstalled in Step 5(a).
11
Align the slots on the Flight Arm Mount with the T-Nuts previously installed in Step 6.
Bolt through and secure with 4 x M8 Bolts and Washers.
)
A
12
A) Align the slots on the Flight Plate with the threaded inserts on the Flight Arm.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
)
B
Repeat
on Other
Side
)
B
14
PARTS:
• • NIL
PARTS:
• • 1 x Flight Arm Mount
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Flight Plate
• • 1 x Flight Arm
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
