Steering wheel setting menu
•
Enter "Setup" on main menu and then "SWC" and "Study" tab for steering wheel control
learning menu.
•
To program the buttons:
1. Press and hold the functional button of the steering wheel, and then press and hold
selected function key icon on the steering wheel setting interface.
2. After the learning is successful, the learning box will be lightened, which indicates
successful learning.
3. Set subsequent buttons to be set as described until setting is completed.
4. After successful learning, click the icon
5. To reprogram the buttons or remove the mistaken learning, click
cancel the learning function of all keys.

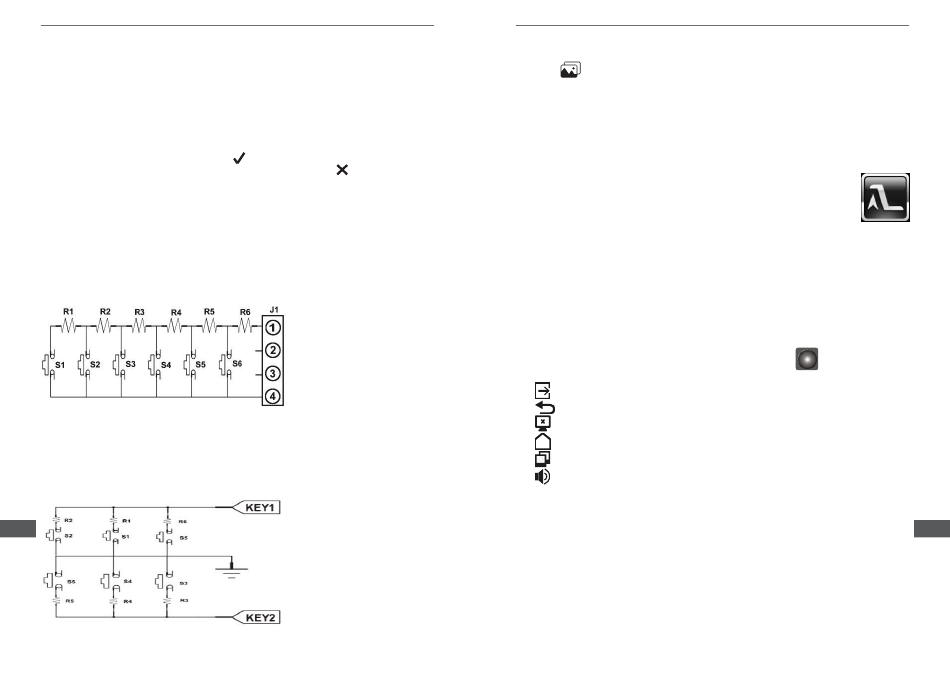

Wiring operation for steering wheel control
Single wiring for steering wheel control: connect KEY1 (brown) and KEYGND (black) in the wire
bundle of power cord of the system with KEY1 (brown) and KEYGND (black) in steering wheel of
cars. The schematic diagram is as the following:
Double wiring for steering wheel control: connect KEY1 (brown) KEY2 (brownish black), KEYGND
(black) in the wire bundle of power cord with KEY1 (brown), KEY2 (brownish black) and KEYGND
(black) in steering wheel of cars.The schematic diagram is as the following:
EN
26
Owner's manual
to save the learning result automatically.
icon. The system will
Steering wheel control KEY1
Steering wheel control GND
Steering wheel control KEY1
Steering wheel control GND
Steering wheel control KEY2
Owner's manual
Wallpaper picture change
•
Press
on the main menu to change background picture.
PHONE LINK
Note:
• app is compatible with mobile devices running Android 5.0 (and higher). It's not compatible with
iOS devices.
• USB debugging of your mobile device shall be turned on.
1. Download and install Vehicle multimedia entertainment APP Autolink from Google
Play Store.
•
Enter "Phone link" on the main menu of the radio receiver to scan the QR
code, or go directly to the Google Play Store on your mobile phone to download the app.
•
Note: If the installation has failed, check whether security apps on your mobile device
have stopped the installation.
2. Connect your mobile device to the radio receiver via USB cable. A notification will show on your
mobile device: "Open Autolink when this USB accessory is connected?" Please click "OK".
User can also enable the default usage here.
3. On your mobile device screen a note may appear about capturing everything that is displayed
on your screen. Approve to proceed.
4. The radio receiver screen will display what's on your mobile phone's screen.
Description of Phone Link Menu:
1. When the Phone Link has been connected successfully,you'll see
menu. You can close the Phone Link menu by clicking areas outside the menu.
2.
: Exit Phone Link and return to the main menu.
3.
: Back
4.
: Turn on or off the screen display.
5.
: Go to main screen of your phone.
6.
: Allow screen rotation (screen rotation on your phone must be enabled first).
7.
: Adjust volume and mute.
. Press it and you'll see
EN
27
