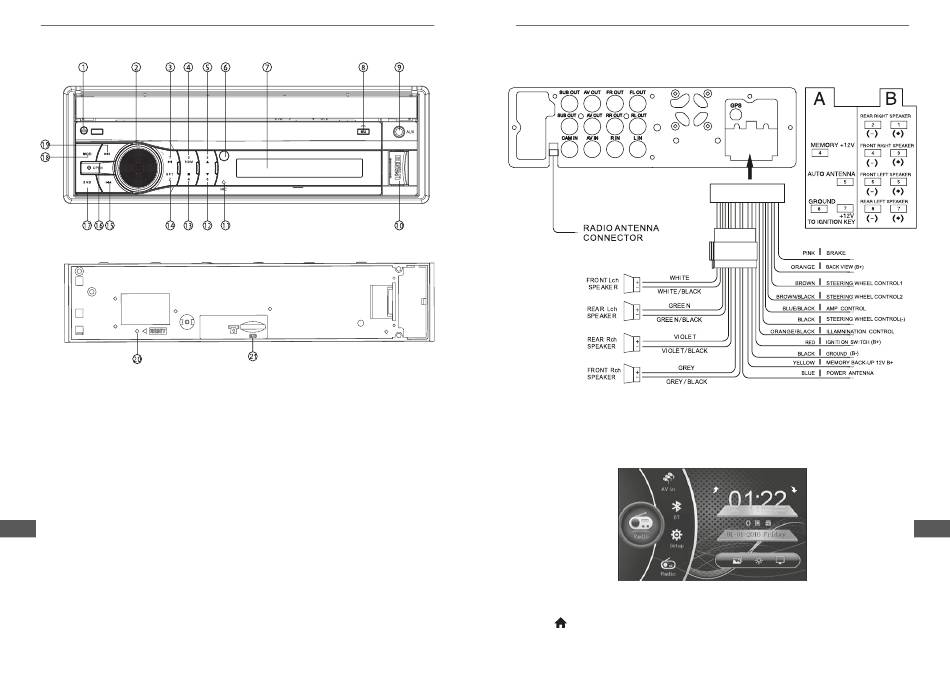

Description of front panel buttons
1. Release button
2. Knob / Left and right adjustment button / Answer/redial last number in Blueooth mode / Press
and hold to adjust panel tilt angle downwards / upwards
3. Number key 1 / play and pause
4. Number key 3 / random play
5. Number key 5 / adjust the angle of the display screen upwards.
6. IR sensor
7. LCD window
8. Mute / hang up for bluetooth mode
9. AUX input
10.USB port
11. MIC (bluetooth option only)
12.Number key 6 / adjust the angle of the display screen downwards.
13.Number key 4 / ready-to-be-stop
EN
14.Number key 2 / repeated play
15.Prev
16.Power off (long press) / Press any button to start the unit and in or out of telescopic screen
(short press)
17.Under the radio mode, AM / FM band switch
18.Press to change mode
19.Next
20.Reset
21.SD/MMC card slot
20
Owner's manual
Owner's manual
Wiring diagram
Operation
Operation of the main menu on the device's display is based on touch function. Touch/slide to
perform desired actions. Here are some basic movements in general operation of the radio:
• Press
to return to the main menu.
EN
21
