4

Structure

2

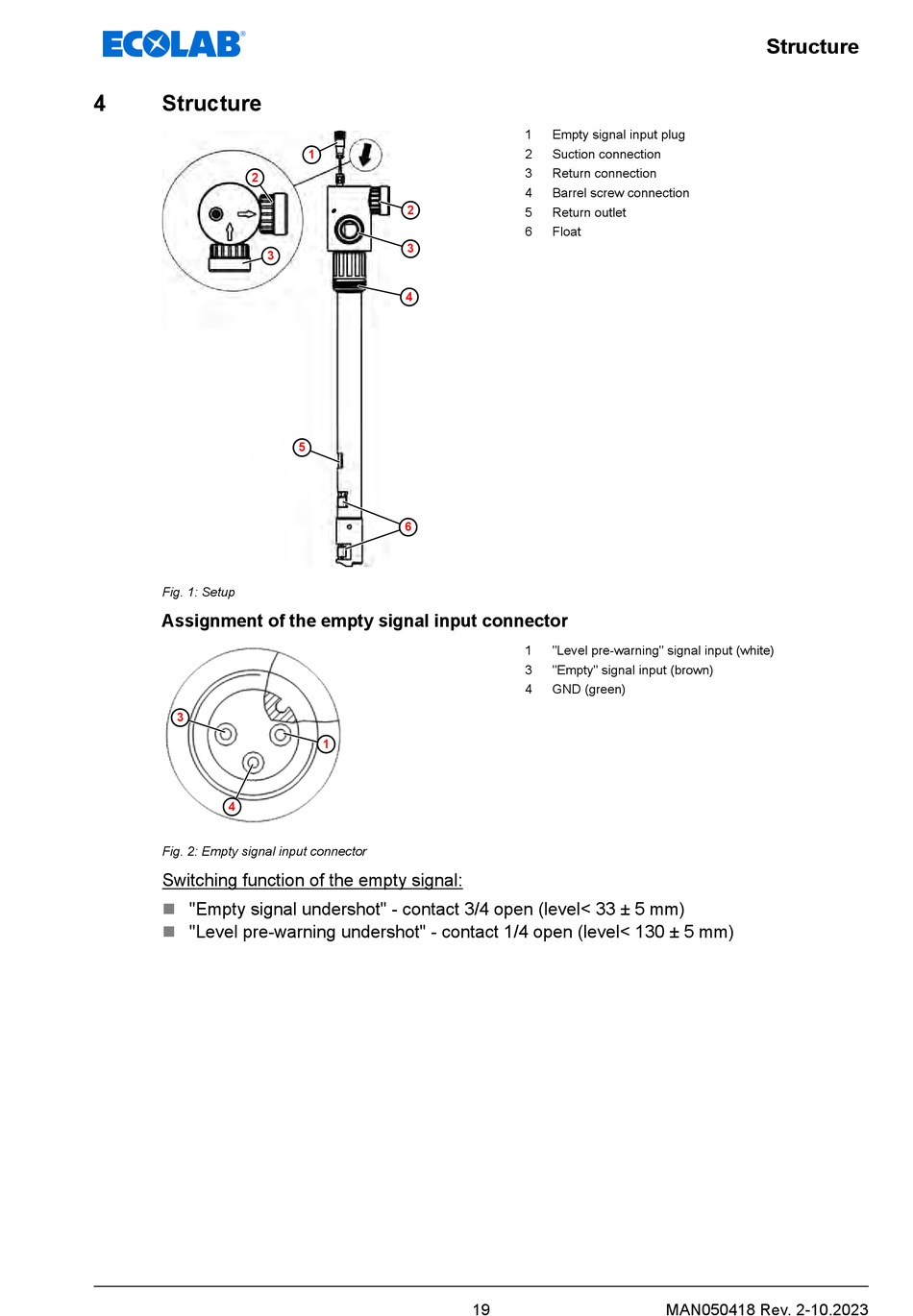

Fig. 1: Setup
Assignment of the empty signal input connector
3
4
Fig. 2: Empty signal input connector
Switching function of the empty signal:
n "Empty signal undershot" - contact 3/4 open (level< 33 ± 5 mm)
"Level pre-warning undershot" - contact 1/4 open (level< 130 ± 5 mm)
n
1
2
3
3
4
5
6
1
1 Empty signal input plug
2 Suction connection
3 Return connection
4 Barrel screw connection
5 Return outlet
6 Float
1 "Level pre-warning" signal input (white)
3 "Empty" signal input (brown)
4 GND (green)
19
