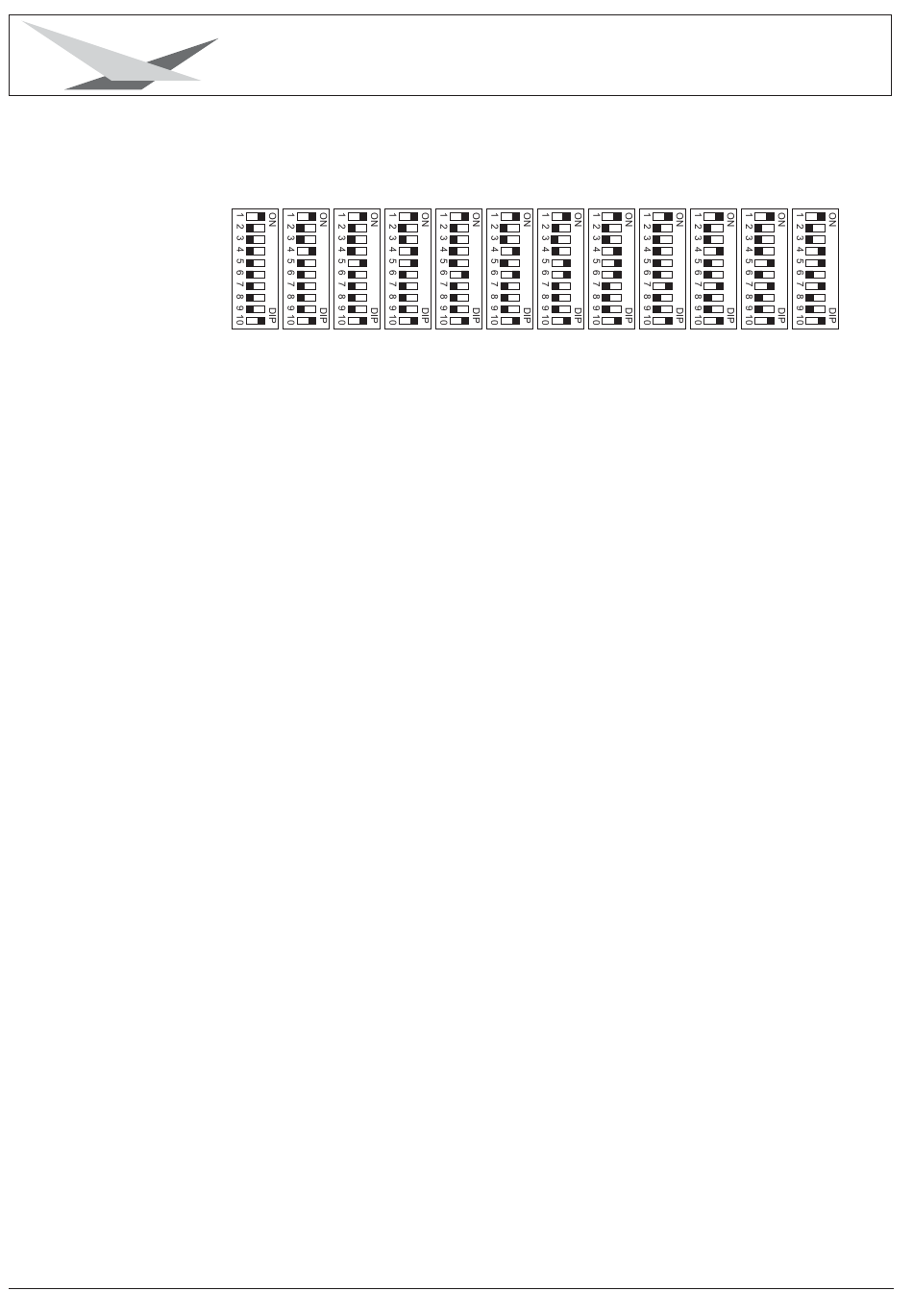

Assignment of the first 12 Varyscan in line (8 channel mode)
Varyscan No.
DMX address
3.4 DMX protocol
6 channel mode
channel no. 1
channel no.
channel no.
channel no.
channel no.
channel no.
JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Tel. ++49-7304-9617-0
20
1 2 3
1 9 17
Pan movement
2 Tilt movement
3 gobo+effect wheel
4 colour
5 shutter+dimmer
6 Special: no function
Special Plus: gobo rotation
Varyscan 3 Special 250MSD
4 5 6 7
25 33 41 49
8 channel mode
channel no.
channel no.
channel no.
channel no.
channel no.
channel no.
channel no.
channel no.
8 9 10 11
57 65 73 81
1 Pan movement
2 Tilt movement
3 gobo
4 colour
5 shutter+dimmer
6 no function
7 Special: no function
Special Plus: gobo rotation
8 effect wheel
12
89
