Ersatzteilliste - Sincro R80 Serie Bedienungs- Und Wartungsanleitung

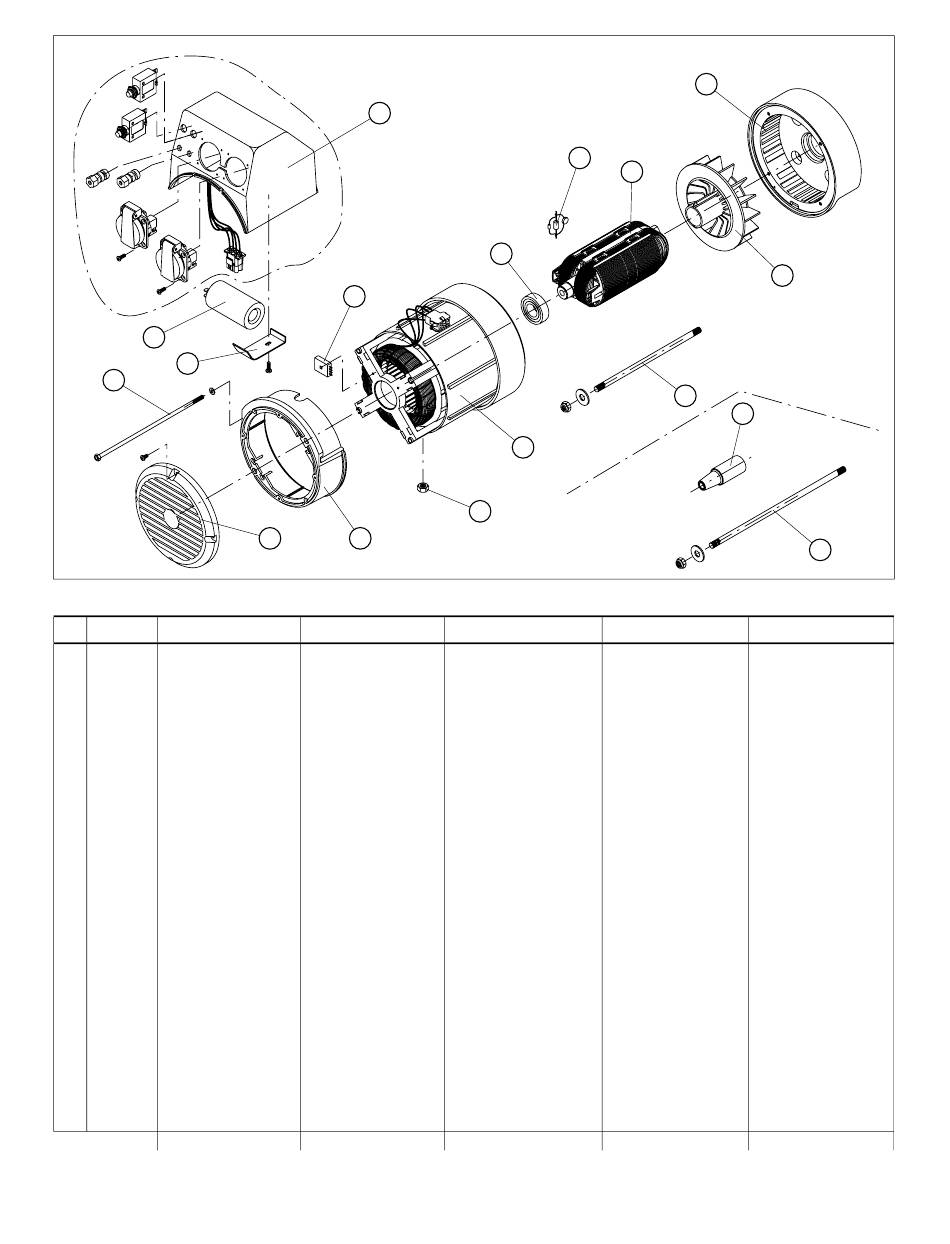

Disegno esploso
7
6
10
Parti di ricambio Spare parts list
N.RIF CODICE SINCRO DESCRIZIONE
1 406101111 Scudo anteriore R80 IMB35 J609A
Ventola foro ∅20 R80
2 266083006
3(*) 524210.... Rotore R80
524240.... Rotore R80 low dist.
4 79061 Diodo+Varistore+Condens.EMC
5 1750016004 Cuscinetto 6004 2RS C3
6 17900551 Molla portacondensatore R80 zincata
7(*) 300100010 Condensat. 10mF 450V (R80 1,2)
3001000125 Condensat. 12,5mF 450V (R80 1,6)
300100016 Condensat. 16mF 450V (R80 2,2)
8(*) 266014001 Coperchio R80 rosso cieco
266024004 Coperchio R80 nero cieco
7001-- Quadretto R80 (vedi...)
9 3004070250200 Ponte raddrizzatore per carica batteria Rectifier bridge for battery charger
10 176032164 Tirante TE M5x164 (R80 1,2)
176032204 Tirante TE M5x204 (R80 1,6-2,2)
11 266012001 Griglia posteriore IP23 R80 rossa
266022001 Griglia posteriore IP23 R80 nera
12 266054001 Coperchio supporto griglia R80 rosso
266064004 Coperchio supporto griglia R80 nero
13 17100308 Dado M8 zincato
14(*) 664360..... Carcassa M + Stat. R 80
664363..... Carcassa M + Stat. R80 low dist.
15(*) 176001160 Tirante 160x5/16 24UNF (J609A)
176001200 Tirante 200x5/16 24UNF (J609A)
16 161008016 Bussola: da (J609A c.19) a (B9 c.23)
17(*) 176002210 Tirante albero M8x210
176002250 Tirante albero M8x250 (B9c.23)
(1) Comprende il particolare 4
(*) Includere nella richiesta di pezzi di ricambio la descrizione dell'oggetto, il codice, il numero di matricola e le caratteristiche della macchina (rilevabili dalla targhetta).
(*) When ordering spare parts, please indicate the alternator code-number and machine serial number and characteristics (they are available on the label)
(*) Nous vous prons d'indiquer, dans vos demandes de pièces de rechange, la description de la pièce, le numéro de code et de série et les caractéristiques de la machine
(*) In den Ersatzteilanfrage sind die Gegenstandbeschreibung, die Materialnummer, die Kennummer und die Eigenschaften der Maschine (vom Schild zu entnehmen) anzugeben.
(*) Solicitar las piezas de recambio siempre indicando la descripción del objeto, el código, el número de matrícula y las características de la máquina (descritas en la placa de identificación).
