COMPACT 1.4
EN ES
Take care not to invert polarities when connecting the unit. If this were to happen, the control plate
will not come on, the unit will not work.
Centrifugal
blower
Blue
Az
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT NOTE!
Electronic
control
Battery
Compressor
12

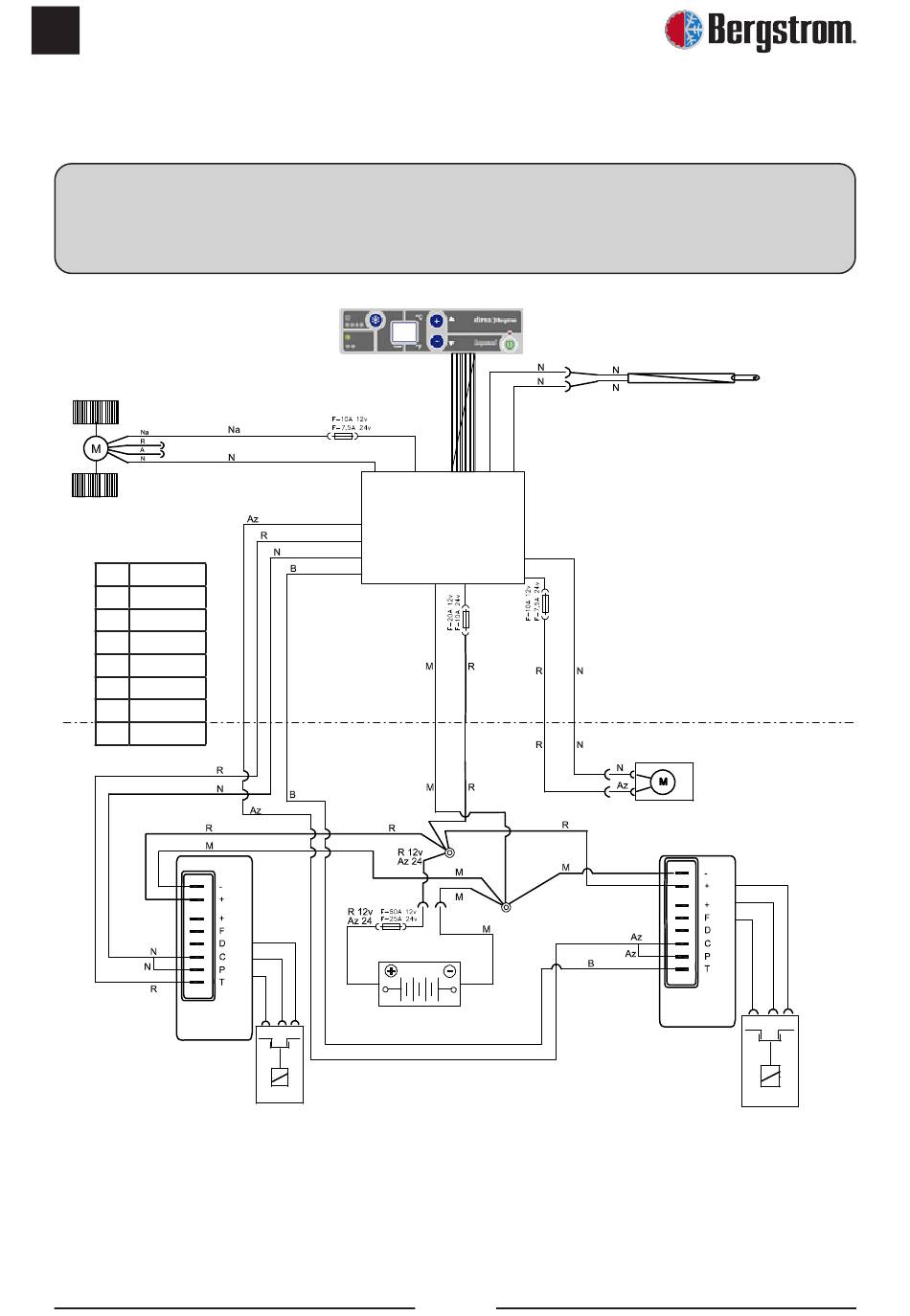

Wiring Diagram

Return
air sensor
Condenser
fan
Compressor
electronic
module
Compressor
