ASSEMBLY WITH FREESTANDING BASES

UTILITIES
2 people
no. 17 spanner
no. 4 - 5 hex key
+/- 30 min.
3
2. Put the weights (11) onto the freestanding bases (10) with their cut-outs facing downwards.
4
5
3. Insert the poles (1) in the base (10).
facing outwards. Position the pole (1) in the base (10) in such a manner that you can put the bolt (4) through the
hole in the base and through the hole in the pole (1). Tighten the nut (5) on the bolt (4) with a wrench 17.
Proceed to STEP 4 of the "combined with hopper" assembly instructions on the previous pages.
4a
1) assembleer de zijprofielen (5) zoals beschreven op pagina ...
2
Hopper Shade 360 cm (10 personen) x = 3515mm
4
Hopper Shade 300 cm (8 personen) x = 2915mm
Hopper Shade 240 cm (6 personen) x = 2315mm
x

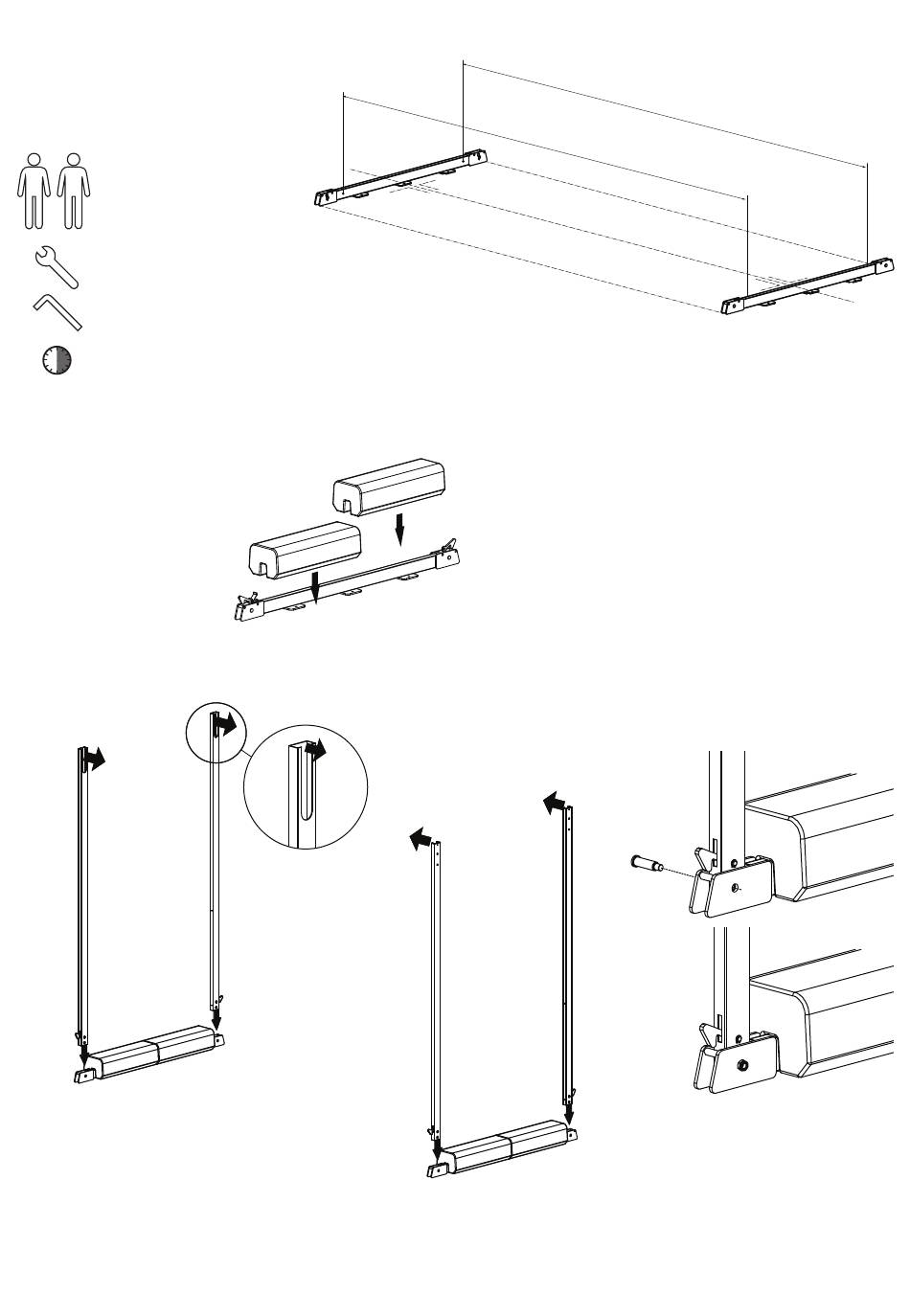

1. Position the 2 freestanding bases
(10) parallel to each other, at a
distance of x between the inside of
the 2 bases.
x
Hopper Shade 360 cm (10 personen) x = 3515mm
Hopper Shade 300 cm (8 personen) x = 2915mm
Hopper Shade 240 cm (6 personen) x = 2315mm
4a
3
CAUTION!
7
5
x
The cut-out at the top should be facing inwards the hook should be
4b
4
X
X
In case of HS10 people X = 353 cm
x
In case of HS8 people X = 293 cm
In case of HS6 people X = 233 cm
x
4a
4b
7
