ASSEMBLY WITH FLOOR FASTENING

UTILITIES
2 people
no. 17 spanner
no. 4 - 5 hex key
+/- 30 min.
2. Mark the spots to drill the 4 holes for each of the
ground anchors (12).
3. Drill holes at the marked spots.
4. Perfectly align the holes in the ground anchor (12)
with the holes in the floor.
10 assembly with floor fastening
2) plaats de grondverankering (12) op de ondergrond op de h
aangegeven afstanden

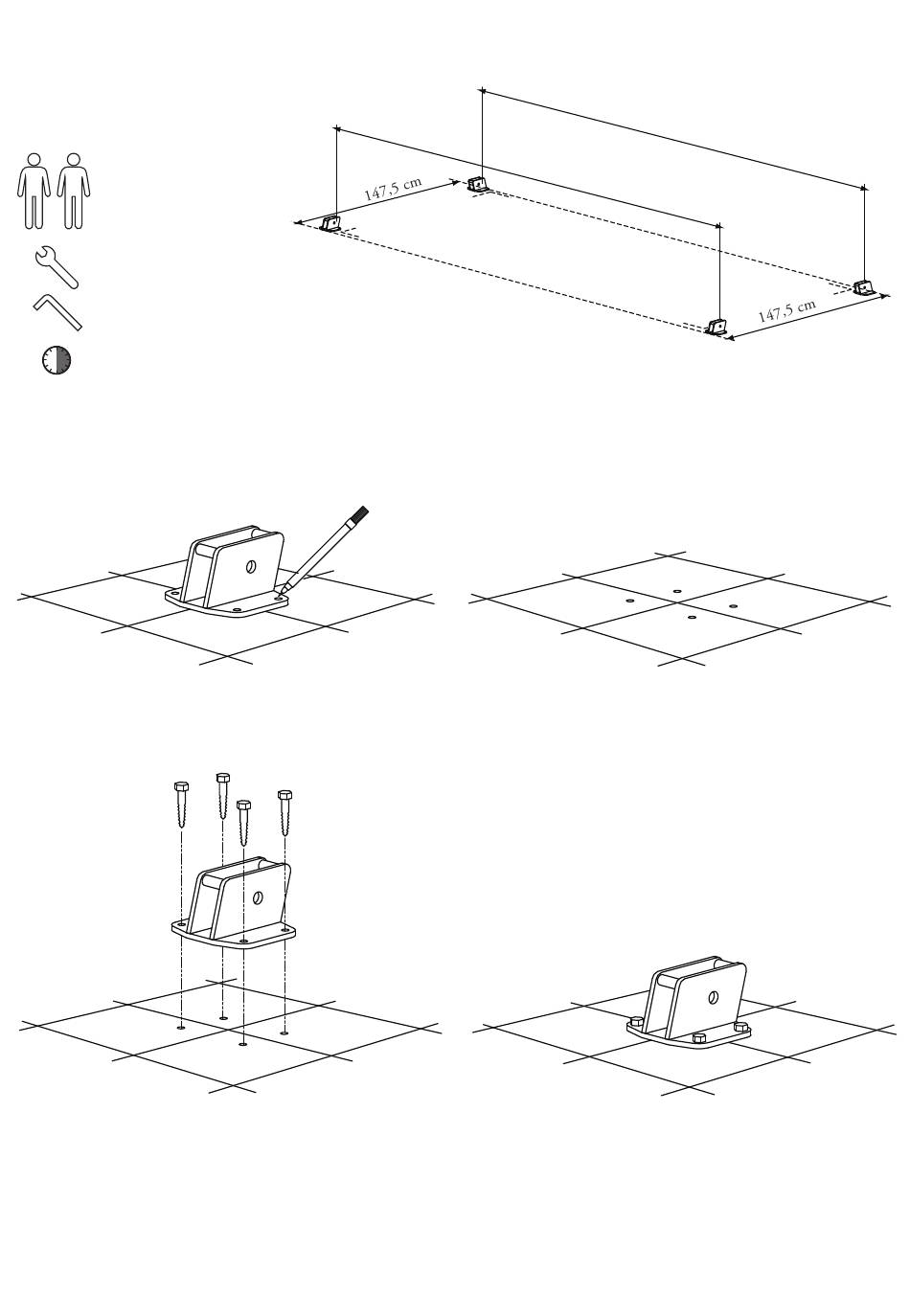

1. Position the ground anchors (12)
on the floor as shown in the
drawing, at a distance of x.
Hopper Shade 360 cm (10 personen) x = 3515mm
Hopper Shade 300 cm (8 personen) x = 2915mm
Hopper Shade 240 cm (6 personen) x = 2315mm
7
X
In case of HS10 people X = 351.5 cm
In case of HS8 people X = 291.5 cm
x
In case of HS6 people X = 231.5 cm
x
5. You can now attach each ground anchor (12) to the
floor by means of bolts (use the fixing media most
suited to the type of ground on which you intend to
install the Hopper Shade).
X
