Extremis HOPPER SHADE Montageanleitung Seite 7

6

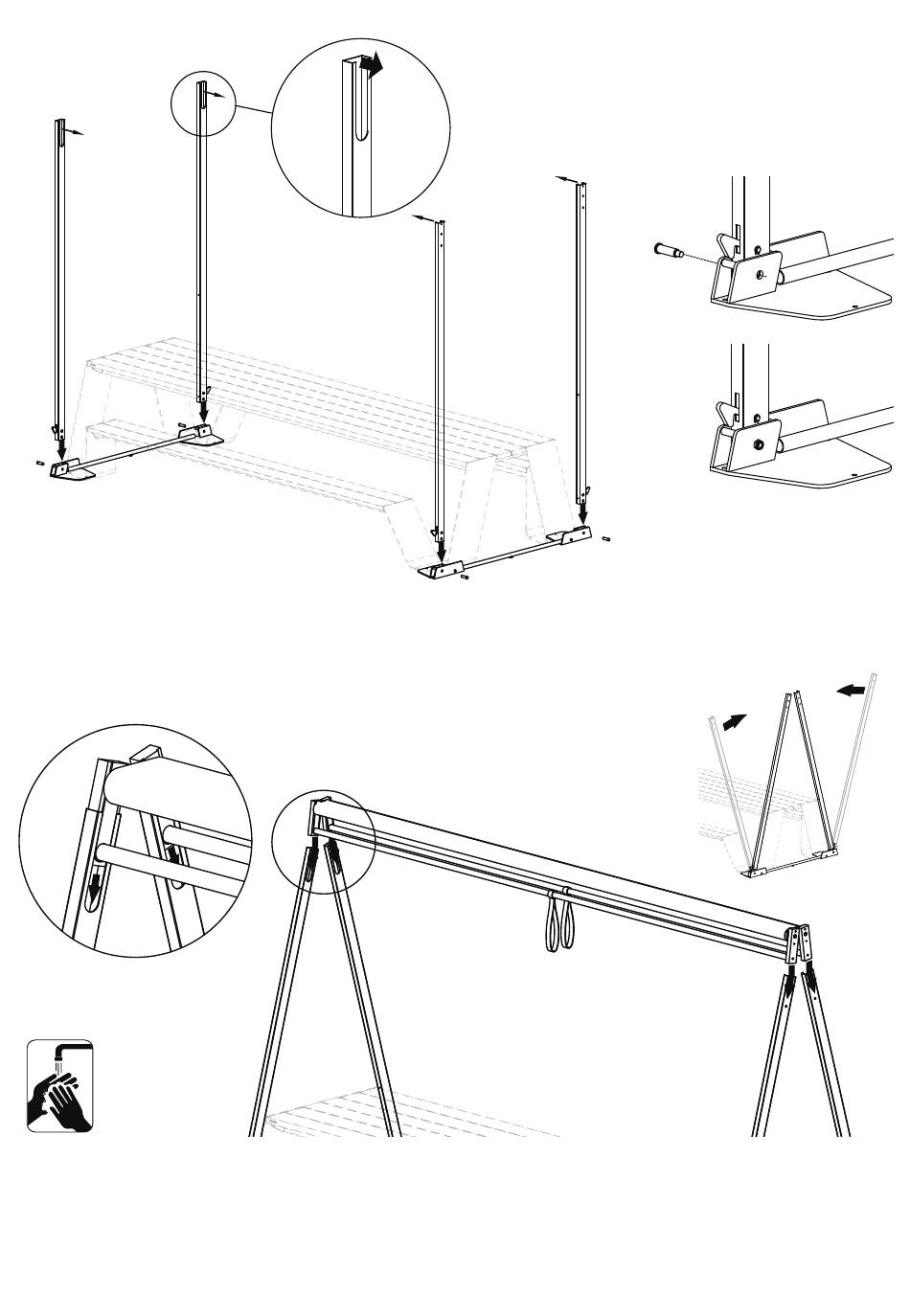

3. Insert the poles (1) into the base plates. Caution! The cut-out at the top should be facing inwards and the hook
should be facing outwards. Position the pole (1) in the base plate (6,7) in such a manner that you can put the bolt (4)
through the hole in the base plate and through the hole in the pole. Tighten the nut (5) on the bolt (6) with an open-
end spanner 17.
4. Tilt the poles (1) inwards and slide the fabric roller tubes (2) into the poles.
heavy. Use a stable ladder or step stool.
hands.
4a
4b
7
: in order not to soil the fabric, we recommend that you first wash your
TIP
8
3
5
6
CAUTION
7
8
: the fabric roller tubes are
english
4a
4b
7
