Floor Fastening With Hopper Table - Extremis HOPPER SHADE Montageanleitung

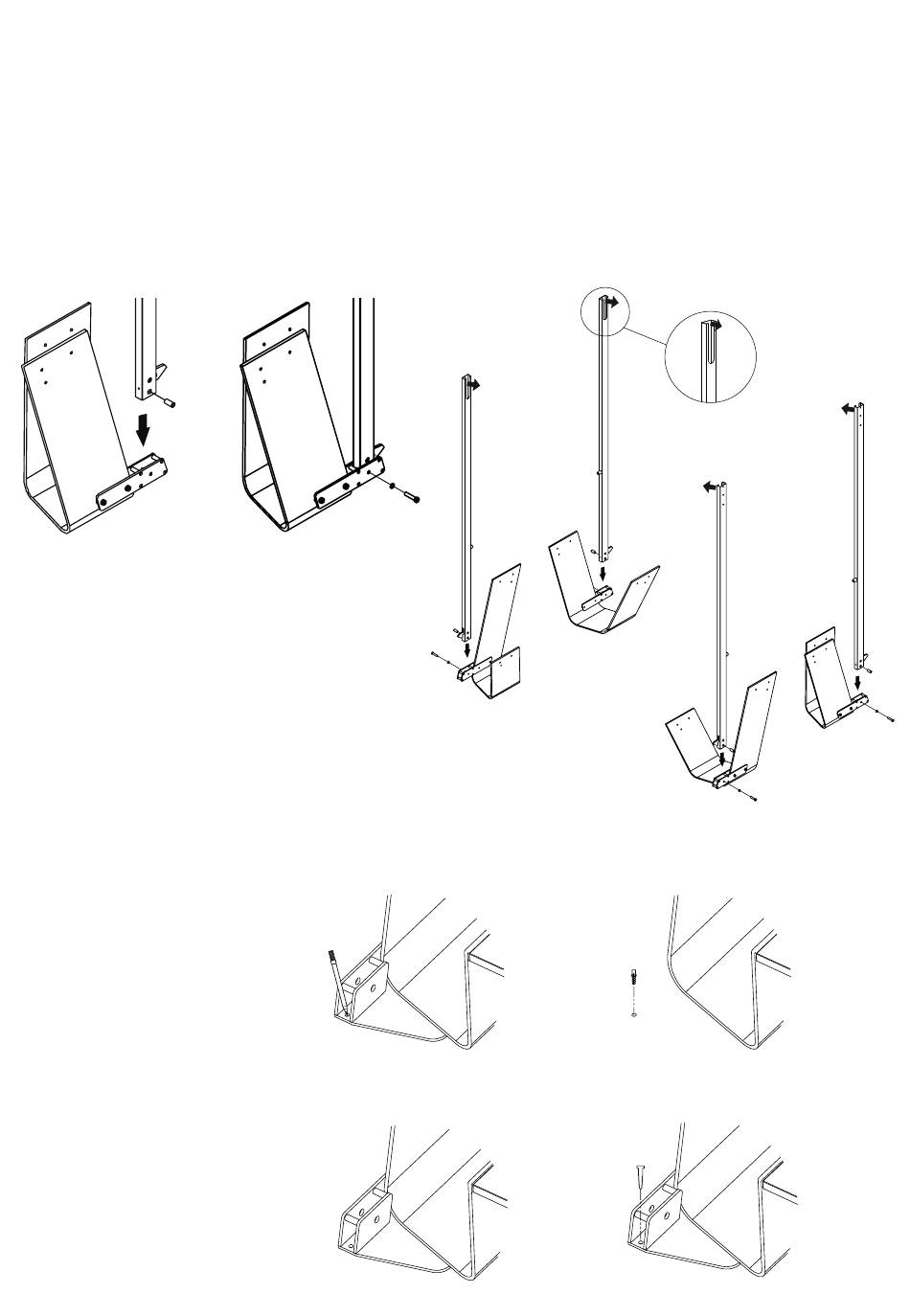

3. Insert the tubes Ø14 x 2 x 30 (19) in the bottom hole of the 4 poles and insert the poles into the fastening plates.
The cut-outs at the top should be facing inwards and the latches at the bottom should be facing outwards.
CAUTION!
Position the pole in the fastening plate in such a manner that you can put the M10 x 45 bolt (20) with its spring
washer (21) through the hole in the fastening plate and in the pole. Tighten the bolt using a socket head wrench
size 7.
4. Proceed to STEP 4 of the
"combined with hopper"
assembly instructions on the
previous pages.

FLOOR FASTENING WITH HOPPER TABLE

IF THE SHADE IS COMBINED
WITH THE HOPPER
THE WEIGHT OF THE TABLE IS
SUFFICIENT TO KEEP THE SHADE
IN PLACE. WE NEVERTHELESS
RECOMMEND THAT
ANCHOR THE BASE PLATE TO
THE FLOOR, IF POSSIBLE.
1. Mark the spot to drill the hole,
TABLE,
through the hole in the base plate.
YOU
3. Perfectly align the hole in the
base plate with the hole drilled in
the floor.
2. Drill a hole on the spot you
marked. If necessary, use the
plugs.
4. Fasten the base plate to the floor
using the anchor bolts.
english 13
