ASSEMBLY TO HOPPER LEGS

UTILITIES
2 people
no. 17 spanner
no. 4 - 5 hex key
+/- 45 min.

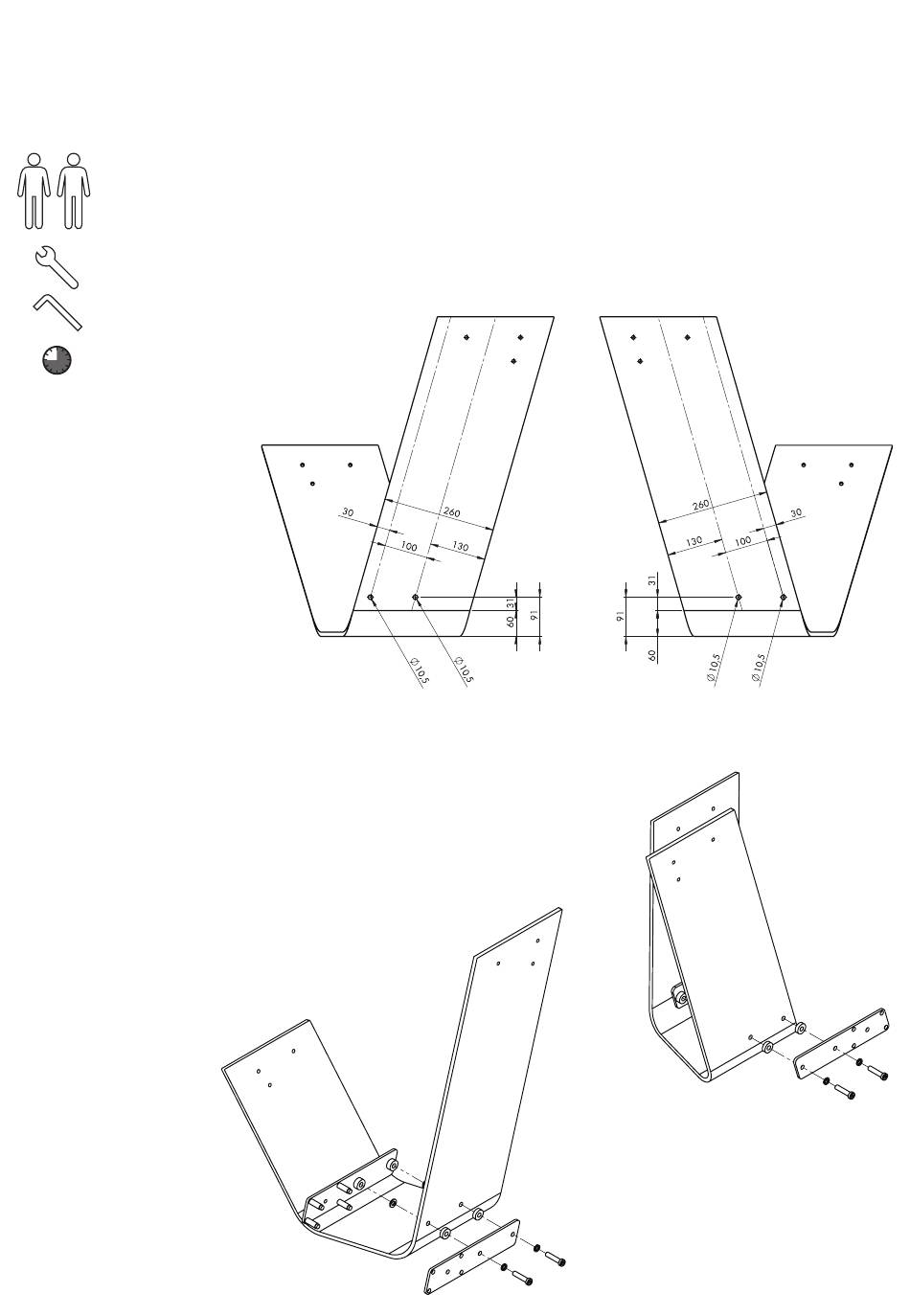

2. Fasten the fastening plates (14/15 & 16) to the 4 legs as shown
in the diagram below. Make sure that the plastic rings are
positioned correctly, i.e. the thick rings (17) on the outside
and the thin rings (18) on the inside!! Only use 1 thin ring
per bolt on the aluminium legs. Use two thin rings per bolt
on the iron legs!
12 assembly to hopper legs
1. If necessary, first drill holes in the 4 Hopper legs as shown in the diagrams
and assembly the Hopper table as explained in the Hopper manual.
