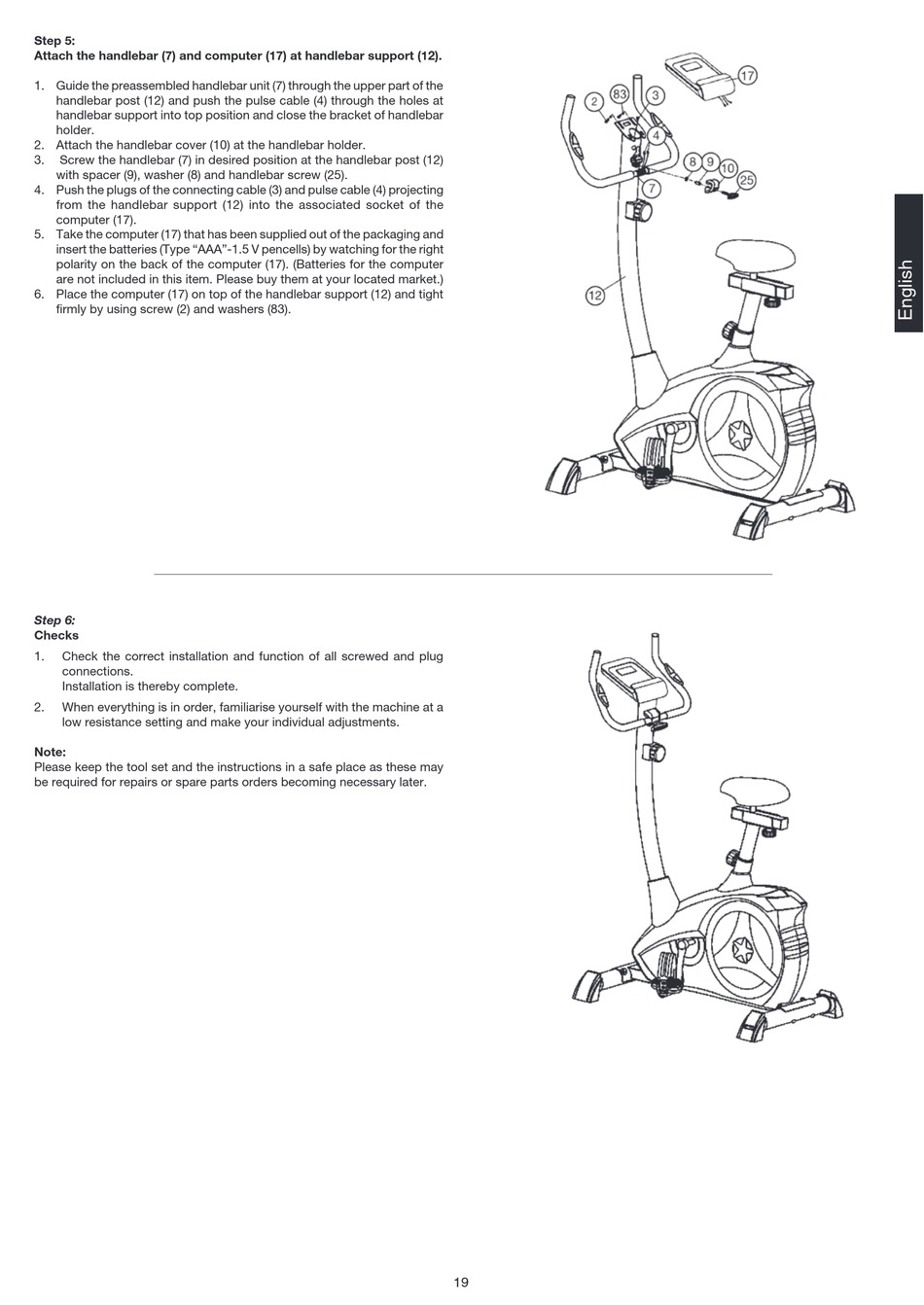

Step 5:
Attach the handlebar (7) and computer (17) at handlebar support (12).
1. Guide the preassembled handlebar unit (7) through the upper part o the
handlebar post (12) and push the pulse cable (4) through the holes at
handlebar support into top position and close the bracket o handlebar
holder.
2. Attach the handlebar cover (10) at the handlebar holder.
3. Screw the handlebar (7) in desired position at the handlebar post (12)
with spacer (9), washer (8) and handlebar screw (25).
4. Push the plugs o the connecting cable (3) and pulse cable (4) projecting
rom the handlebar support (12) into the associated socket o the
computer (17).
5. Take the computer (17) that has been supplied out o the packaging and
insert the batteries (Type "AAA"-1.5 V pencells) by watching or the right
polarity on the back o the computer (17). (Batteries or the computer
are not included in this item. Please buy them at your located market.)
6. Place the computer (17) on top o the handlebar support (12) and tight
frmly by using screw (2) and washers (83).
Step 6:
Checks
1. Check the correct installation and unction o all screwed and plug
connections.
Installation is thereby complete.
2. When everything is in order, amiliarise yoursel with the machine at a
low resistance setting and make your individual adjustments.
Note:
Please keep the tool set and the instructions in a sae place as these may
be required or repairs or spare parts orders becoming necessary later.
