Pin Assignment - SICK deTem2 Core Montageanleitung

6

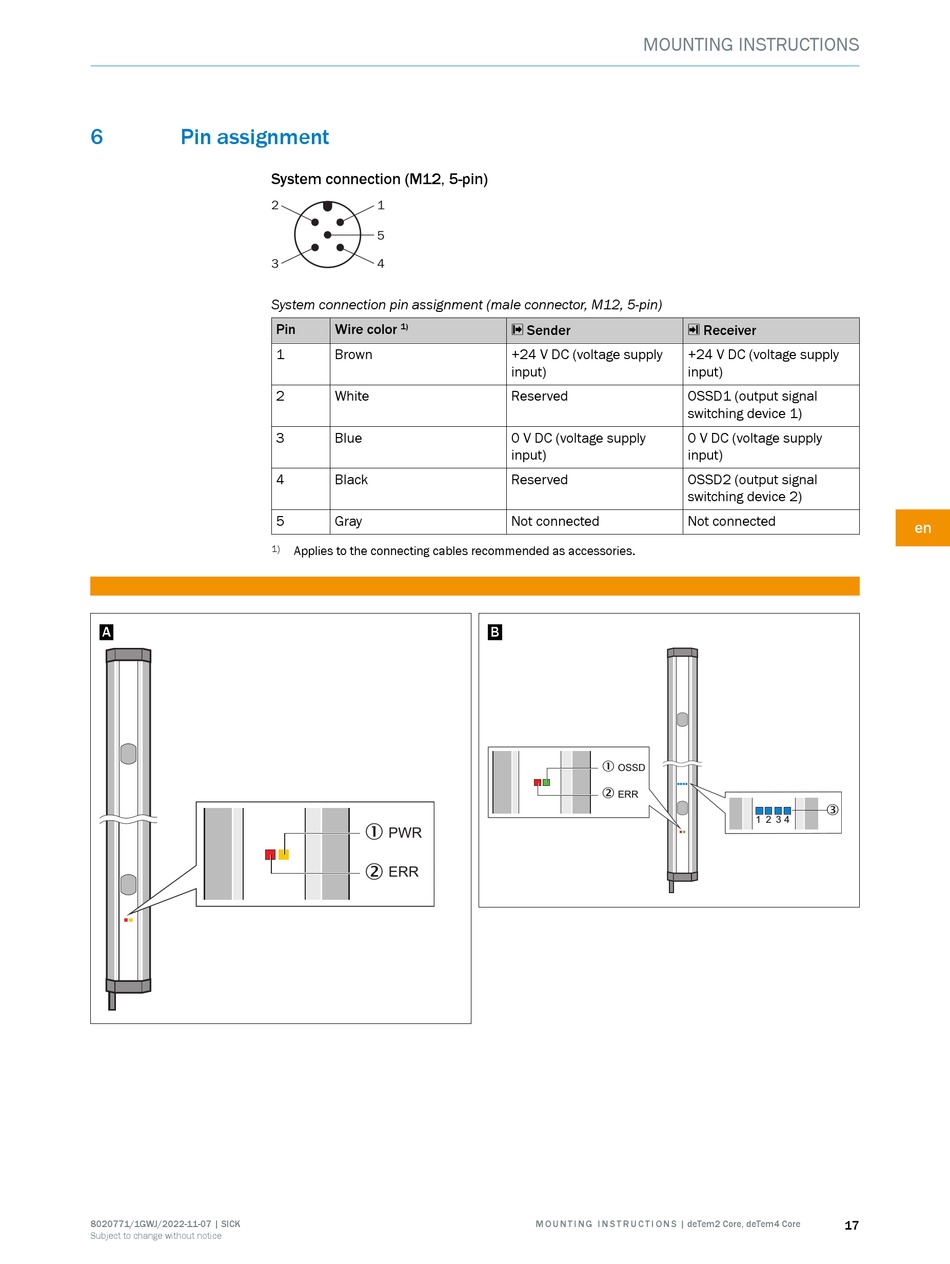

Pin assignment

A
8020771/1GWJ/2022-11-07 | SICK
Subject to change without notice
System connection (M12, 5-pin)
2 1
5
3 4
System connection pin assignment (male connector, M12, 5-pin)
Pin Wire color 1)
1 Brown
2 White
3 Blue
4 Black
5 Gray
1) Applies to the connecting cables recommended as accessories.
1
PWR
2
ERR
MOUNTING INSTRUCTIONS
s Sender
+24 V DC (voltage supply
input)
Reserved
0 V DC (voltage supply
input)
Reserved
Not connected
B
1
OSSD
2
ERR
M O U N T I N G I N S T R U C T I O N S | deTem2 Core, deTem4 Core
r Receiver
+24 V DC (voltage supply
input)
OSSD1 (output signal
switching device 1)
0 V DC (voltage supply
input)
OSSD2 (output signal
switching device 2)
Not connected
3
1 2 3 4
17
