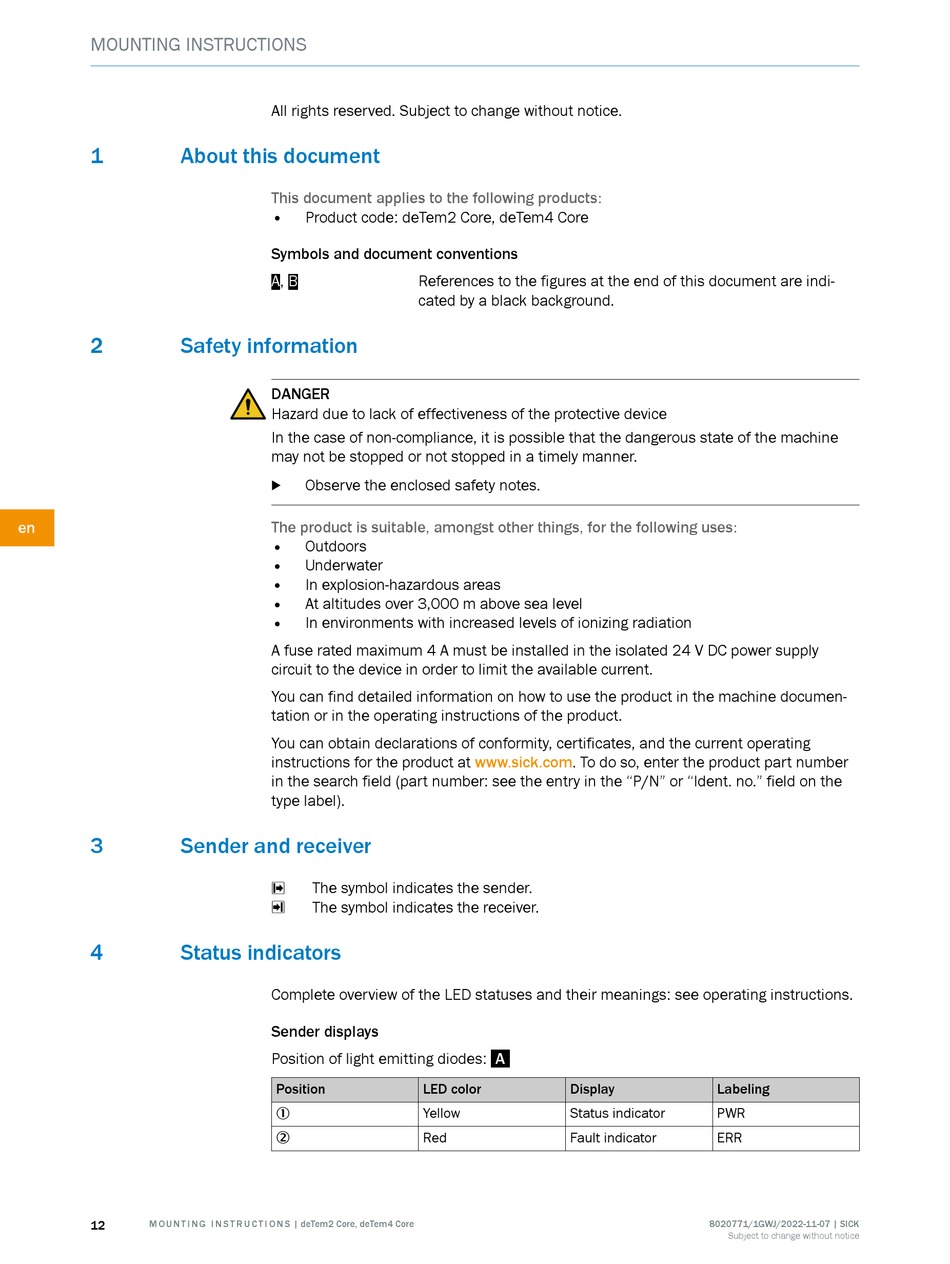

MOUNTING INSTRUCTIONS
1

About this document

2

Safety information

en
3 Sender and receiver
4

Status indicators

12 M O U N T I N G I N S T R U C T I O N S | deTem2 Core, deTem4 Core
All rights reserved. Subject to change without notice.
This document applies to the following products:
• Product code: deTem2 Core, deTem4 Core
Symbols and document conventions
A, B References to the figures at the end of this document are indi‐
cated by a black background.
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Observe the enclosed safety notes.
b
The product is suitable, amongst other things, for the following uses:
• Outdoors
• Underwater
• In explosion-hazardous areas
• At altitudes over 3,000 m above sea level
• In environments with increased levels of ionizing radiation
A fuse rated maximum 4 A must be installed in the isolated 24 V DC power supply
circuit to the device in order to limit the available current.
You can find detailed information on how to use the product in the machine documen‐
tation or in the operating instructions of the product.
You can obtain declarations of conformity, certificates, and the current operating
instructions for the product at www.sick.com. To do so, enter the product part number
in the search field (part number: see the entry in the "P/N" or "Ident. no." field on the
type label).
The symbol indicates the sender.
s
The symbol indicates the receiver.
r
Complete overview of the LED statuses and their meanings: see operating instructions.
Sender displays
Position of light emitting diodes:
Position LED color
Yellow
1
Red
2
A
Display
Status indicator
Fault indicator
Labeling
PWR
ERR
8020771/1GWJ/2022-11-07 | SICK
Subject to change without notice
