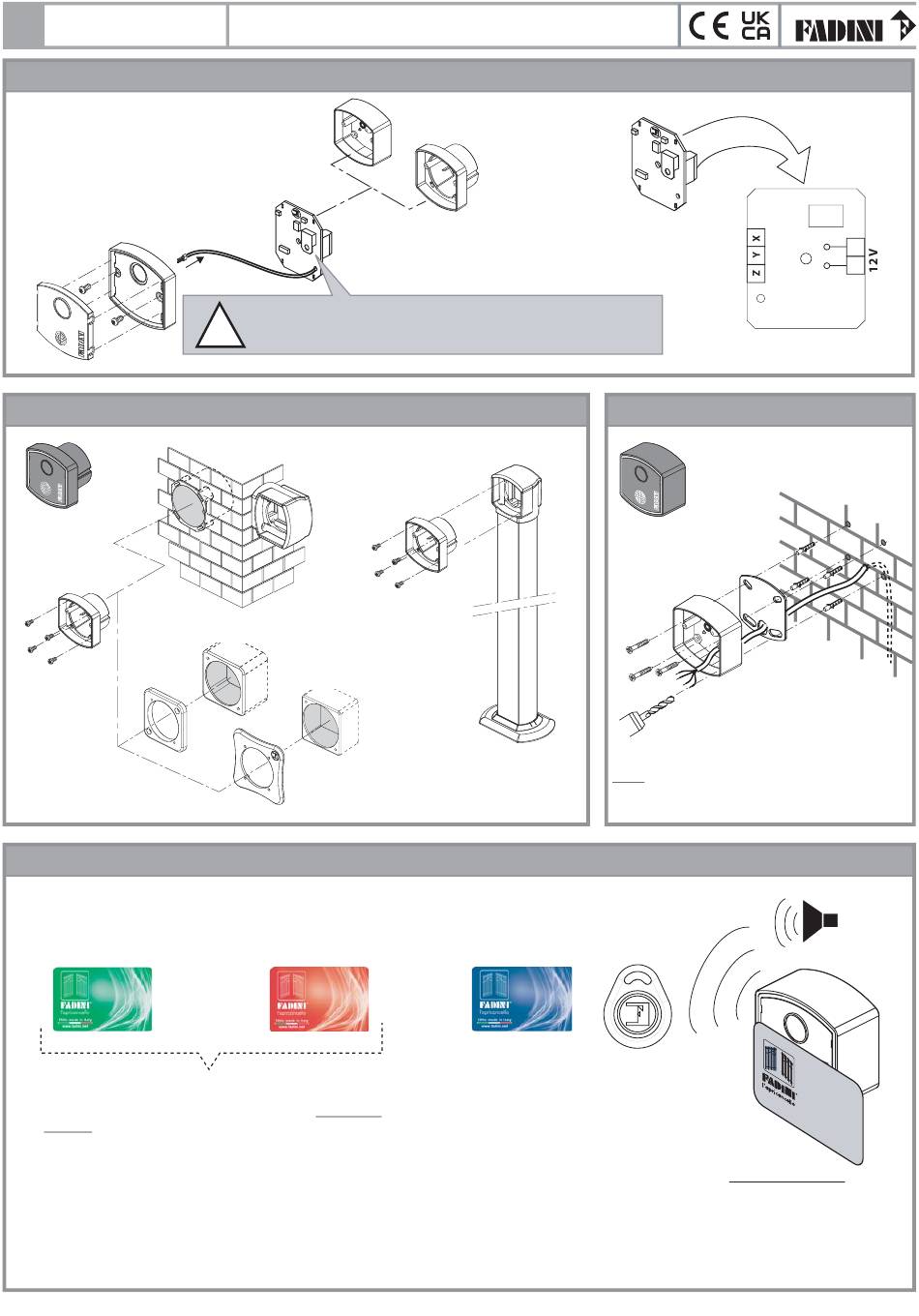

BRINGING THE CARD READER APART
FITTING ACCESSORIES FOR THE PARTIALLY RECESSED APPLICATION
item 149L
item. 560L
PROGRAMMING AND READING CARDS
GREEN (*) card:
to memorize the Blue cards
and the keyrings
(*): Cards to be used by the installation technician.
The two cards (Red and Green), at the time when the equipment
is first installed, are both memorized into the Removable
memory.
Blanking or replacing them can only be carried out by the
manufacturer Meccanica Fadini after returning the removable
memory.
Should a duplicate of the two cards (Red and Green) be
required,the number printed on the back is to be provided.
PROXIMITY CARD ACCESS CONTROL
surface
mount
reader
pcb
IMPORTANT: It is possible to connect 2 readers maximum to one
!
Receiver.
item. 552L item. 162L
Prit 19
Sech 15
item. 553L
RED (*) card:
to cancel the Blue cards
and the keyrings
partial recess
mount
SURFACE APPLICATION
item. 153L
NOTE: screws and expanding bolts not supplied by us.
Pic. 2
BLUE card or keyring:
for the end user to open and
close the access
The cards or the keyrings are actually read on touching the reader;
confirmation of the reading is indicated by a buzzer sound from the receiver.
9
cod. cod. 148L
Pic. 1
Pic. 3
Buzzer
G R
E E
N
R E
D
B L
U E
Pic. 4
