ZERO.SAPE
GB
SOFTWARE SAPE 69 FOR PC MANAGEMENT
General description
The ZERO.SAPE system, previously described as a simple electronic system operated through cards or keyrings, can be integrated with a software allowing the
user to create a data base of the entire installation.
The software allows the management of the two users' lists, once the user's cards and keyrings have been entered: it is possible to identify each single
card/keyring by including the end user's data (name and address), enable/disable each single card/keyring, remove any single card/keyring from the lists and
specify the period of use of any card/keyring by indicating an expiry date.
Important: memorizing the cards/keyrings is only by means of the GREEN card, whereas cancelling is made possible only by means of the RED card or by PC.
ELECTRONIC
CONTROL BOX
230 V - 50 Hz from
the mains
Connections of
the system

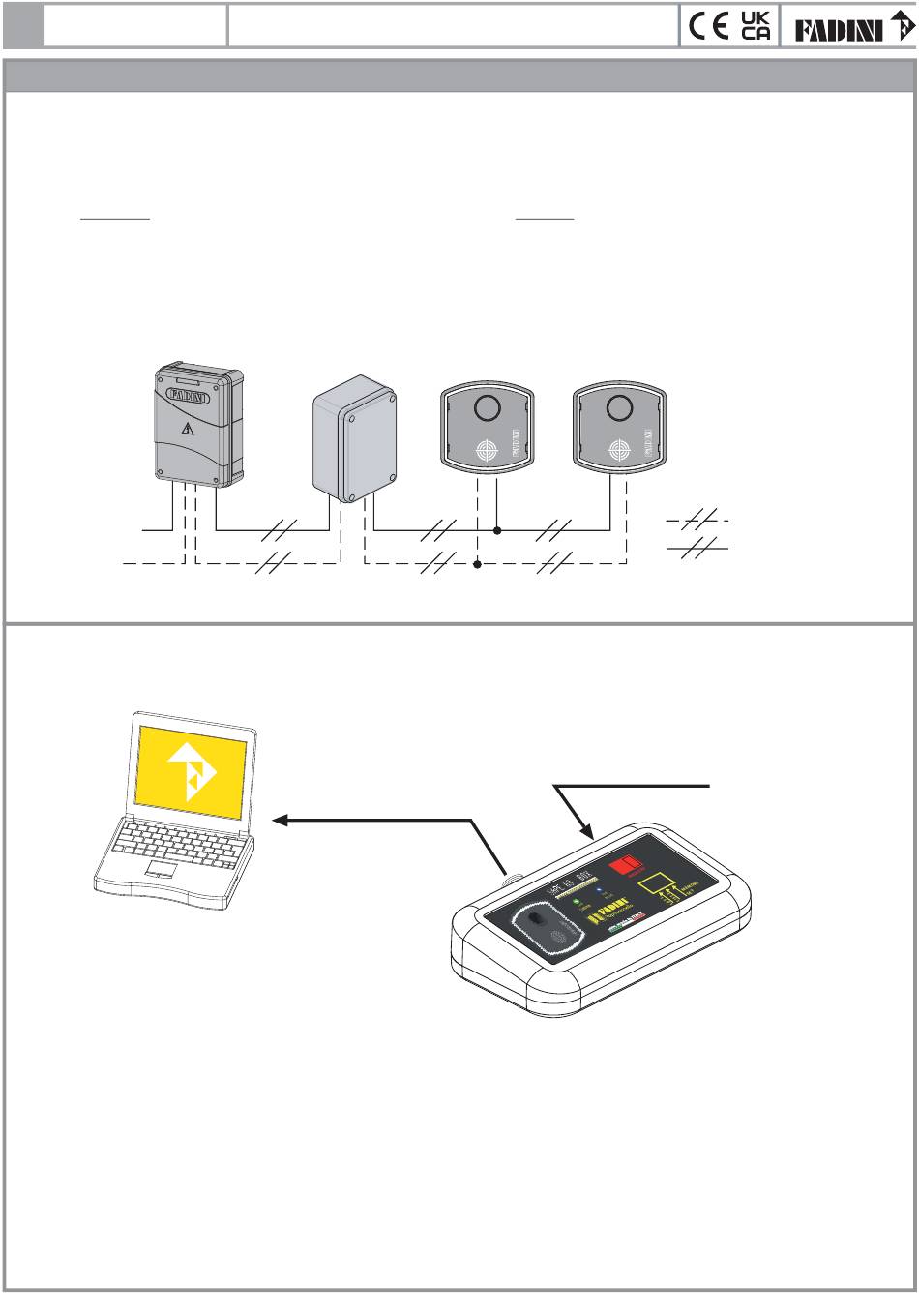

Diagram of the connection of the SAPE BOX to a PC to manage the memory of the installation.
All the instructions allowing for the use of the software are contained in the manual enclosed in the SAPE BOX.
SAPE BOX is a device to control the memory of a ZERO.SAPEsystem, on a PC by means of the dedicated ZERO.SAPE Software.
Software ZERO.SAPE Setup program, that can be downloaded from www.fadini.net/download
PROXIMITY CARD ACCESS CONTROL
ZERO.SAPE SYSTEM: SIMPLE INSTALLATION WITHOUT THE HELP OF THE
(see Pic.5 for the electrical connections)
RECEIVER
Connection cable
USB - mini USB to a PC
SOFTWARE
ENTRY
READER READER
Connection to the electric mains
12
EXIT
communication 2x0,5 mm²
power supply 2x0,5 mm²
230 V - 50 Hz
