EDK84VHCE222
.Jy\
L−force Drives
Montageanleitung
Mounting Instructions
Instructions de montage
Instrucciones para el montaje
Istruzioni per il montaggio
8400
0.25 ... 3.0 kW

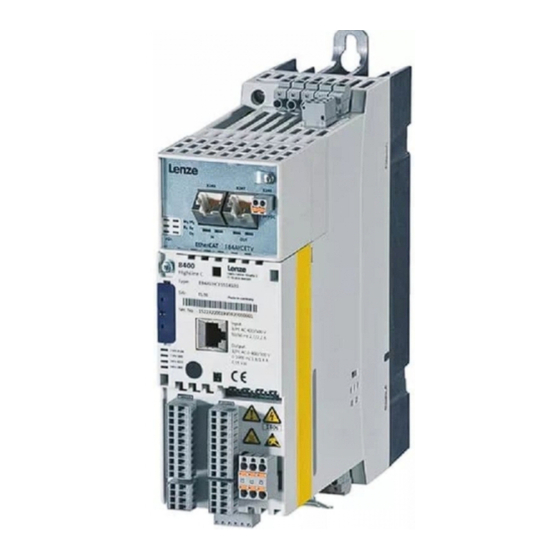

E84AVHCExxxx HighLine C
Frequenzumrichter
Frequency Inverter
Convertisseur de fréquence
Convertidor de frecuencia
Inverter di frequenza
l
Werbung
Verwandte Anleitungen für Lenze E84AVHCE HighLine C Serie
Inhaltszusammenfassung für Lenze E84AVHCE HighLine C Serie

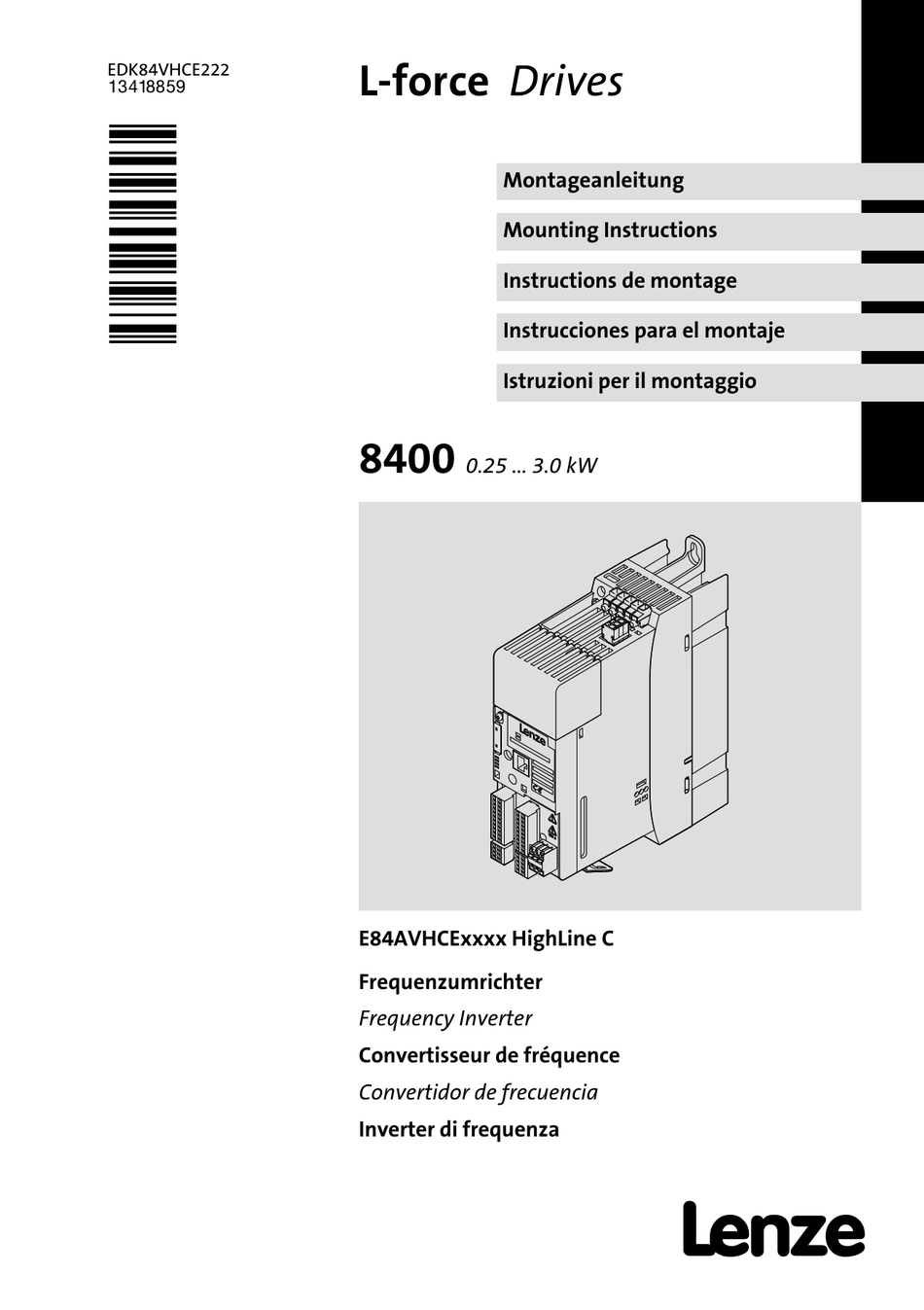

- Seite 1 EDK84VHCE222 L−force Drives .Jy\ Montageanleitung Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio 8400 0.25 ... 3.0 kW E84AVHCExxxx HighLine C Frequenzumrichter Frequency Inverter Convertisseur de fréquence Convertidor de frecuencia Inverter di frequenza...
- Seite 2 Warnings! Operation of this equipment requires detailed installation and operation instructions provided in the Hardware manual intended for use with this product. This information is provided on the CD−ROM included in the container this device was packaged in. It should be retained with this device at all times. A hard copy of this information may be ordered by phone or e−mail, printed on the back of this document.
- Seite 3 Danger! Dangerous voltage The power terminals X100 and X105 carry dangerous voltages for up to 3 minutes ƒ after mains disconnection. Possible consequences: Death or severe injury if the power terminals are touched. ƒ Protective measures: Switch off the mains voltage and wait at least 3 minutes before starting to work on ƒ...
- Seite 4 y de seguridad incluida en el CD−ROM adjunto! Pericolo! Tensione elettrica pericolosa I collegamenti di potenza X100 e X105 presentano una tensione elettrica pericolosa ƒ fino a 3 minuti dopo la disinserzione della rete. Possibili conseguenze: Morte o gravi lesioni in caso di contatto con i collegamenti di potenza. ƒ...
- Seite 5 0.25 … 3.0 kW ) 0.25 … 3.0 kW 8400HLC030 EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 6 0.25 … 3.0 kW 8400HLC060 EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 7 0.25 … 3.0 kW [mm] [mm] 0.25 … 3.0 kW 8400GG105m [kW] [mm] 0.25 E84AVHCE2512xXx 0.37 E84AVHCE3712xXx 0.37 E84AVHCE3714xXx E84AVHCE551xxXx 0.55 E84AVHCE751xxXx 0.75 E84AVHCE112xxXx E84AVHCE152xxXx E84AVHCE222xxXx E84AVHCE3024xXS E84AVHCE2512xBx 0.25 E84AVHCE3712xBx 0.37 E84AVHCE3714xBx 0.37 E84AVHCE551xxBx 0.55 0.75 E84AVHCE751xxBx E84AVHCE112xxBx E84AVHCE152xxBx E84AVHCE222xxBx E84AVHCE3024xBS EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 8 0.25 … 3.0 kW [mm] 8400GG105k [kW] [mm] [kg] E84AVHCE2512xXx 0.25 > 95 > 95 E84AVHCE3712xXx 0.37 E84AVHCE3714xXx 0.37 E84AVHCE551xxXx 0.55 > 95 > 95 E84AVHCE751xxXx 0.75 E84AVHCE112xxXx E84AVHCE152xxXx > 95 > 95 E84AVHCE222xxXx E84AVHCE3024xXS E84AVHCE2512xBx 0.25 > 95 > 95 E84AVHCE3712xBx 0.37 E84AVHCE3714xBx...
- Seite 9 0.25 … 2.2 kW X100 (230 V) X100 (230 V) 0.25 … 2.2 kW X100 − TN, TT 1/N/PE AC 230 V N L1 X100 8400GG001 8400GG003 X100 − IT 1/N/PE AC 230 V N L1 X100 8400GG002 8400GG004 L1, N EN 60204 [mm] [Nm]...
- Seite 10 0.37 … 3.0 kW X100 (400 V) X100 (400 V) 0.37 … 3.0 kW X100 − TN, TT 3/N/PE AC 400 V / 500 V F1 … F3 +UG -UG X100 8400GG005 8400GG007 X100 − IT 3/N/PE AC 400 V / 500 V F1 …...
- Seite 11 0.25 … 3.0 kW X101 X101 0.25 … 3.0 kW X101 X101 8400GG009 8400GG010 COM, NC, NO [mm] [AWG] E84AVHCE2512 0.2 ... 1.5 E84AVHCE3712 24 ... 16 E84AVHCE3714 0.2 ... 1.5 E84AVHCE551x 24 ... 16 E84AVHCE751x E84AVHCE112x E84AVHCE152x 0.2 ... 1.5 E84AVHCE222x 24 ...
- Seite 12 0.25 … 3.0 kW X105, X106 X105, X106 0.25 … 3.0 kW 8400GG011 X105 X106 84MOTL001_a 84MOTL001_b U, V, W T1, T2 [mm] [Nm] [mm] [Nm] [mm] [AWG] [lb−in] [AWG] [lb−in] [AWG] E84AVHCE2512 1 ... 2.5 1 ... 6 0.2 ... 1.5 E84AVHCE3712 18 ...
- Seite 13 0.25 … 3.0 kW X105, X106 X105 − TN, TT " X105 J> 8400GG012 8400GG013 X105 − IT " X105 J> 8400GG014 8400GG013 X106 " X106 T1 T2 J> 8400GG016 8400GG017 EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 14 E84A...xxBx E84A...xxBx 8400HLC087 [mm] [AWG] 0.2 ... 1.5 24 ... 16 84MOTL001_g DC 24 V (+19.2... +28.8 V) 8400HLC061 8400HLC045 EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 15 HighLine X1, X3, X4, X5, X107 X1, X3, X4, X5, X107 HighLine 8400HLC038 X3, X107 X4, X5 84MOTL001_e 84MOTL001_d 84MOTL001_f X4, X5 X107 min. max. min. max. min. max. [mm] [mm] [AWG] [mm] [mm] [AWG] [AWG] [mm] [mm] [AWG] 0.2 ... 1.5 0.2 ...
- Seite 16 HighLine X3, X4 X3, X4 GND-A +10 V / 10 mA " 0 ...10 V 1k ... 10k 8400HLC034 8400HLC012 GND-O DC 24 V (+19.2...+28.8 V) 8400HLC035 8400HLC045 EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 17 HighLine X5, X107 X5, X107 GND-I 24 V int. DC 24 V (+19.2... +28.8 V) 8400HLC036 8400HLC045 X107 X107 " DC 24 V (+19.2...+28.8 V) 8400HLC037 8400HLC045 EDK84VHCE222 DE/EN/FR/ES/IT 5.2...
- Seite 18 ã K Q © 09/2014 Lenze Drives GmbH Service Lenze Service GmbH Postfach 10 13 52, D−31763 Hameln Breslauer Straße 3, D−32699 Extertal Breslauer Straße 3, D−32699 Extertal Germany Germany +49 5154 82−0 008000 2446877 (24 h helpline) Ê Ê...
