8

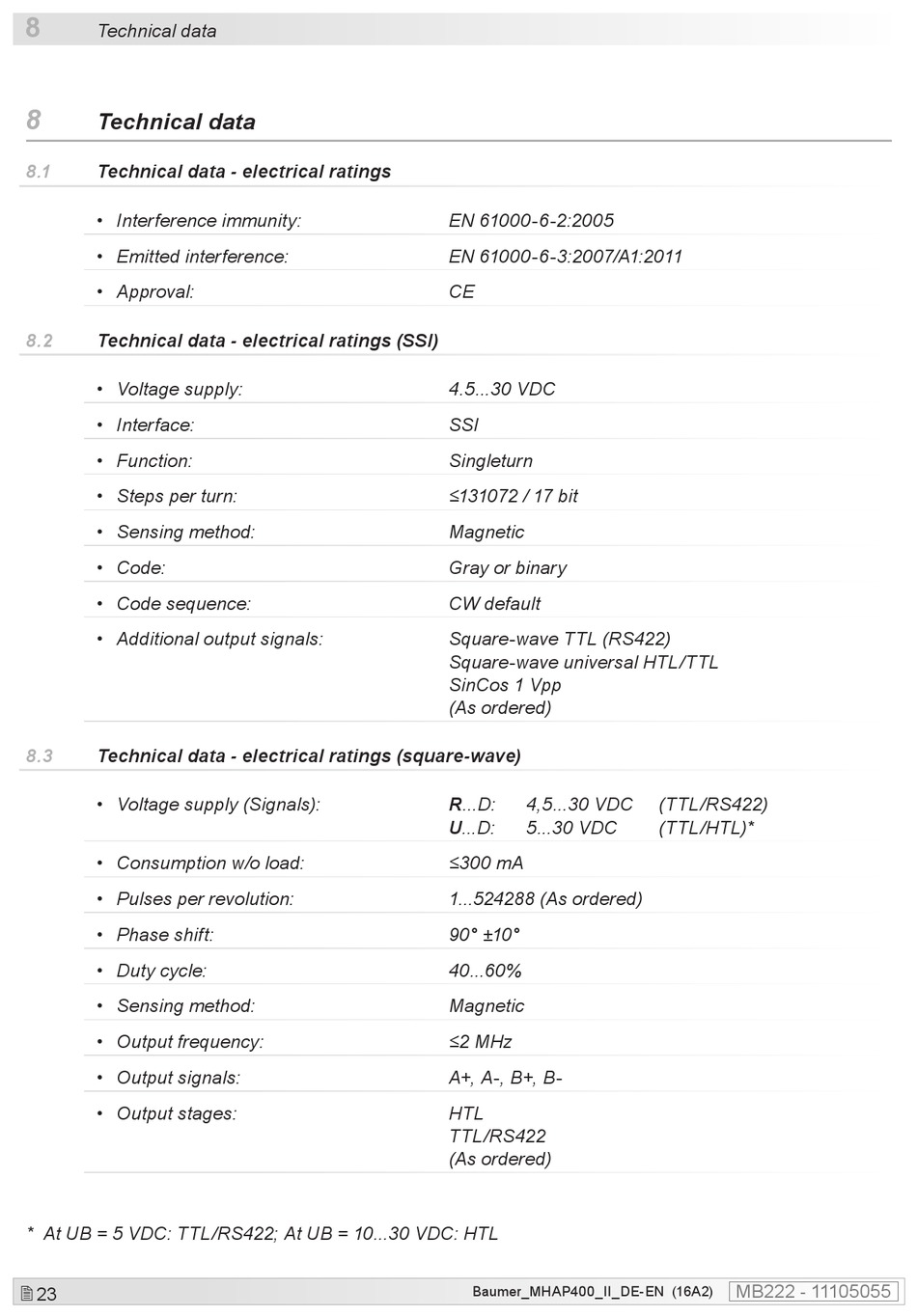

Technical data

8
Technical data
8.1

Technical data - electrical ratings

• Interference immunity:
• Emitted interference:
• Approval:
8.2

Technical data - electrical ratings (SSI)

• Voltage supply:
• Interface:
• Function:
• Steps per turn:
• Sensing method:
• Code:
• Code sequence:
• Additional output signals:
8.3

Technical data - electrical ratings (square-wave)

• Voltage supply (Signals):
• Consumption w/o load:
• Pulses per revolution:
• Phase shift:
• Duty cycle:
• Sensing method:
• Output frequency:
• Output signals:
• Output stages:
* At UB = 5 VDC: TTL/RS422; At UB = 10...30 VDC: HTL
 23
EN 61000-6-2:2005
EN 61000-6-3:2007/A1:2011
CE
4.5...30 VDC
SSI
Singleturn
≤131072 / 17 bit
Magnetic
Gray or binary
CW default
Square-wave TTL (RS422)
Square-wave universal HTL/TTL
SinCos 1 Vpp
(As ordered)
R...D: 4,5...30 VDC
U...D: 5...30 VDC
≤300 mA
1...524288 (As ordered)
90° ±10°
40...60%
Magnetic
≤2 MHz
A+, A-, B+, B-
HTL
TTL/RS422
(As ordered)
Baumer_MHAP400_II_DE-EN (16A2)
(TTL/RS422)
(TTL/HTL)*
MB222 - 11105055
