Mounting the laser to a SainSmart 3018-PROVer
First disconnect the spindle motor by removing the motor connection from the router Main board. Then remove
the spindle motor from the motor mount.
Do not operate your router with both, the laser and the spindle motor connected.
Mount the Laser Control Module on the rear of the CNC machine on the aluminium profile to the right of the
motherboard of the CNC machine using the M3 T-nuts and screws supplied. Make sure that the cables to the
Laser Head can move freely so that the laser can move in all axes to the limits of its travel. Mounting the Module
vertically using just a single screw can give freer cable movement.
Move the motor mount towards its lowest height using Jog controls.

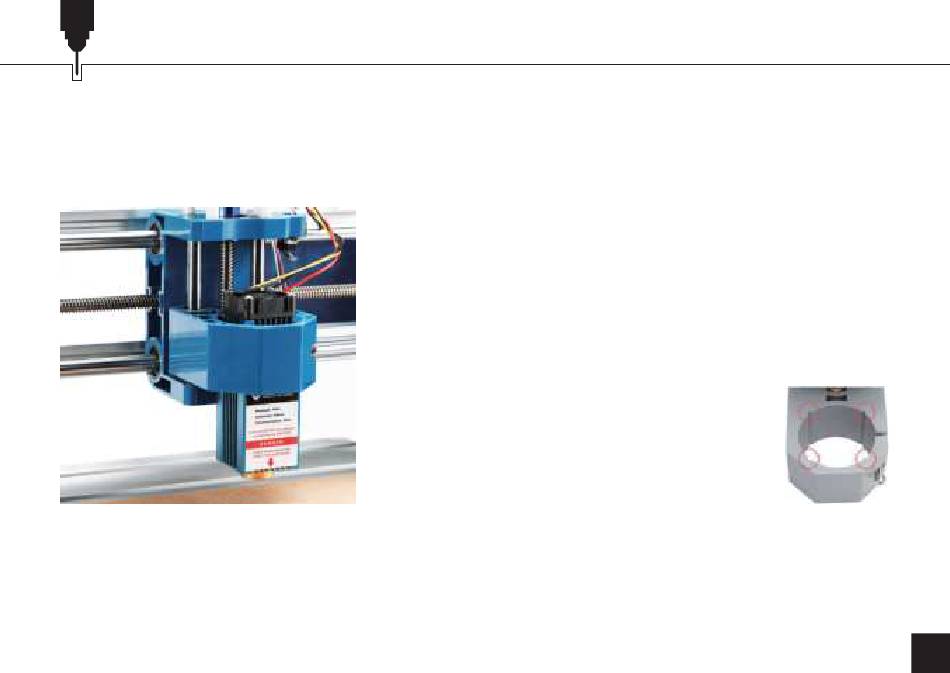

Slide the Laser Head into the motor mount so that the corners are in
the slots of the motor mount and the cooling fan of the Laser Head
pointing upwards. Align the top of the heat sink with the top of the
motor mount. Tighten the clamping screw on the motor mount, do not
over tighten, it just needs to be secure.
Plug both connecting cables into the sockets of the
Laser Control Module as described above.
