Use LaserGRBL to set the laser height

To cut or engrave efficiently we want the laser beam to be tightly focused into the smallest possible point at the
top of the stock. Although the focus point of the Laser is fixed the height of the laser above the stock needs to
be set correctly. Do not forget to wear the Safety Googles.

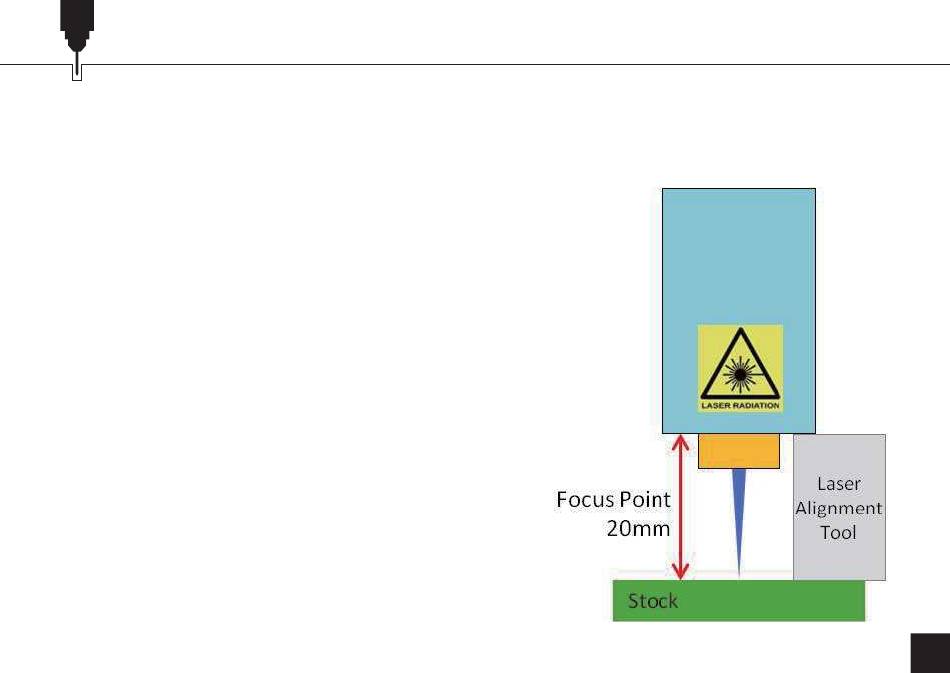

• Place the Laser Alignment tool on the top of the stock at
the side of the Laser, not underneath.
• Using the Z axis jog buttons move the Laser up and down
until the Laser alignment tool will just slide underneath the
heatsink. (hover over the Z jog buttons in LaserGrbl to see
how far each will move the Laser) until the heat sink will
just slide between the bottom of the heatsink and the stock.
• Set the zero point at this position by clicking the globe icon.
If using very thin stock place a flat material underneath it to
bring the top of the stock higher and in the range of the Laser.
If using a thick stock it is possible to slacken the bolt clamping
the laser in the motor mount and slide it upwards to give more
clearance.
