Description of the individual components

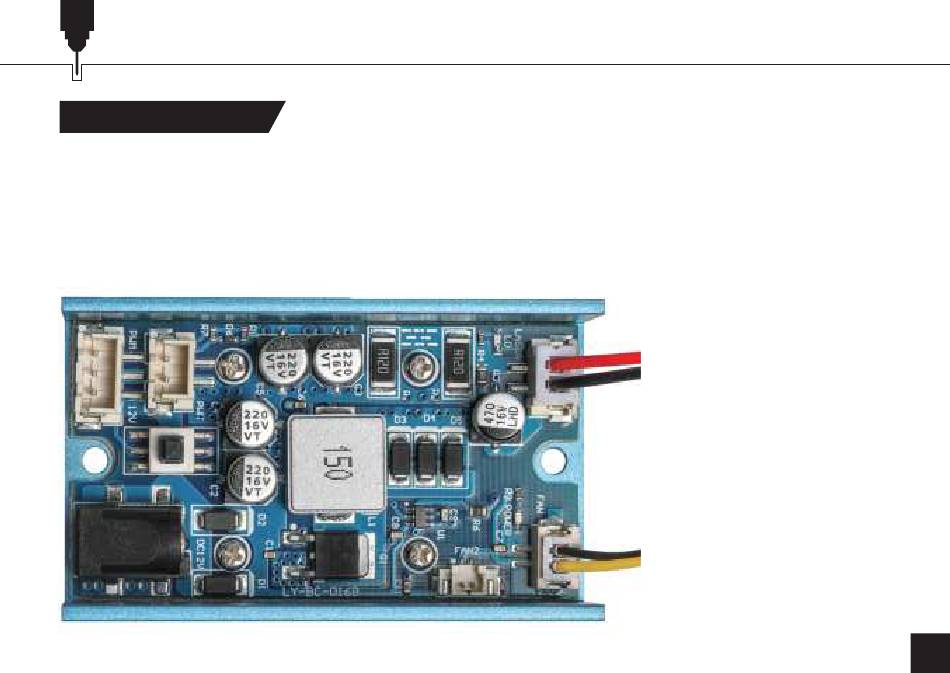

Laser Control Module
The Laser Control Module matching the Laser Head contains the necessary control electronics for processing
the PWM signal applied to the input. This results in the laser being supplied with the required voltage at the right
time. The Laser Control Module can be mounted to the 2020 aluminum profiles normally used on milling and
engraving machines by means of the supplied T-nuts and M3 screws. A 2.5mm hexagon wrench is required for
mounting those screws.
The right side of the Laser
Control Module hosts
connections to the laser head.
The sockets are different and
match the plugs on the Laser
Head wires so they can only
be connected correctly. There
is a Red Power LED on the
board close to the connector
marked PWM, it is on when
power is supplied to the Laser
Control Module.
