Genmitsu CNC 3018-PROVer Benutzerhandbuch Seite 8

Description of the individual components

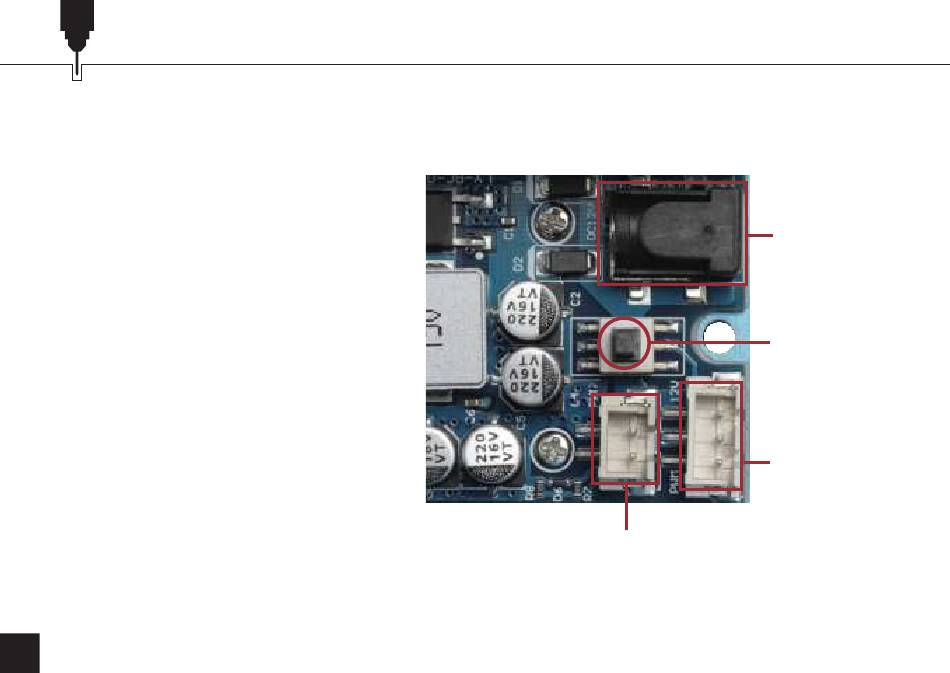

On the other side of the Laser Control Module there are a number if connectors and a press switch.
• External 12V DC 5A power source.
• Fire / PWM Button, when in this is pressed
in the laser is permanently on at 100%
power, when out the laser power is
controlled by the PWM signal.
It should be out for normal operation!
• 2 pin connector for PWM Control signals.
• 3 Pin connector for PWM Control signals
and 12V Power.
Please see later descriptions for connecting
to your specific router for which ones to use.
Before switching on for the first time, make sure that the signals are connected to the correct pins.
06
12V
Gnd
Gnd
PWM
PWM
PWM Control
12V DC power
Fire Button
12V Power and
PWM Control
