Description of the individual components

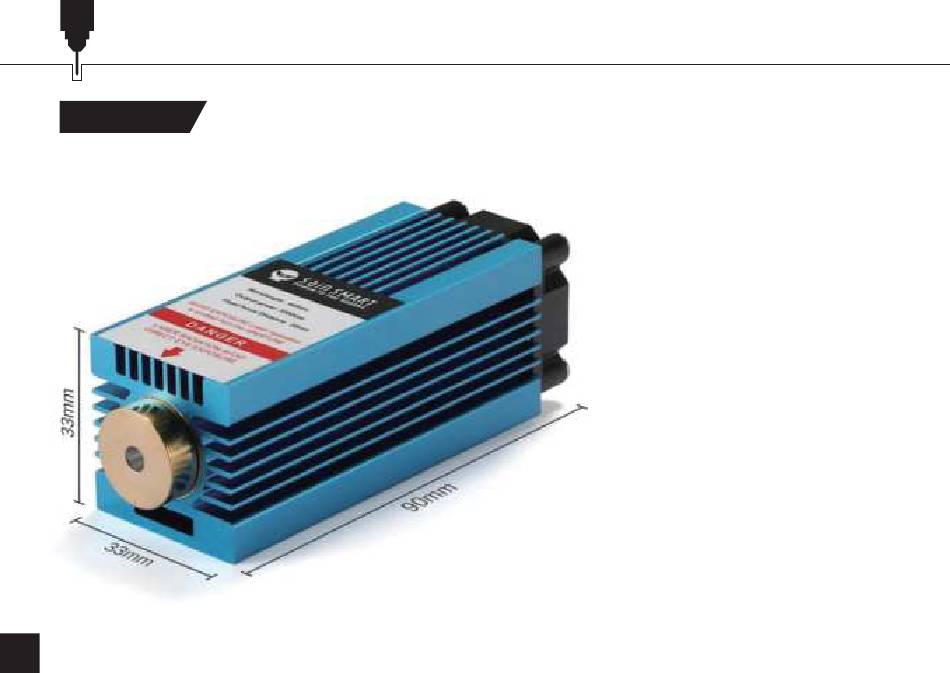

Laser Head
A 5.5W blue diode laser with a
wavelength of 445nm. In order
to ensure sufficient cooling, the
laser is mounted in a heat sink,
which is additionally equipped
with a powerful yet quiet cooling
fan. The laser has a fixed focus
with a focal length of 20mm The
Laser Head is connected to the
laser control unit by cables of
about 30cm length. The plugs
which fit into the Laser Control
Module are different to ensure
correct connections to the cooling
fan and the Laser Diode.
