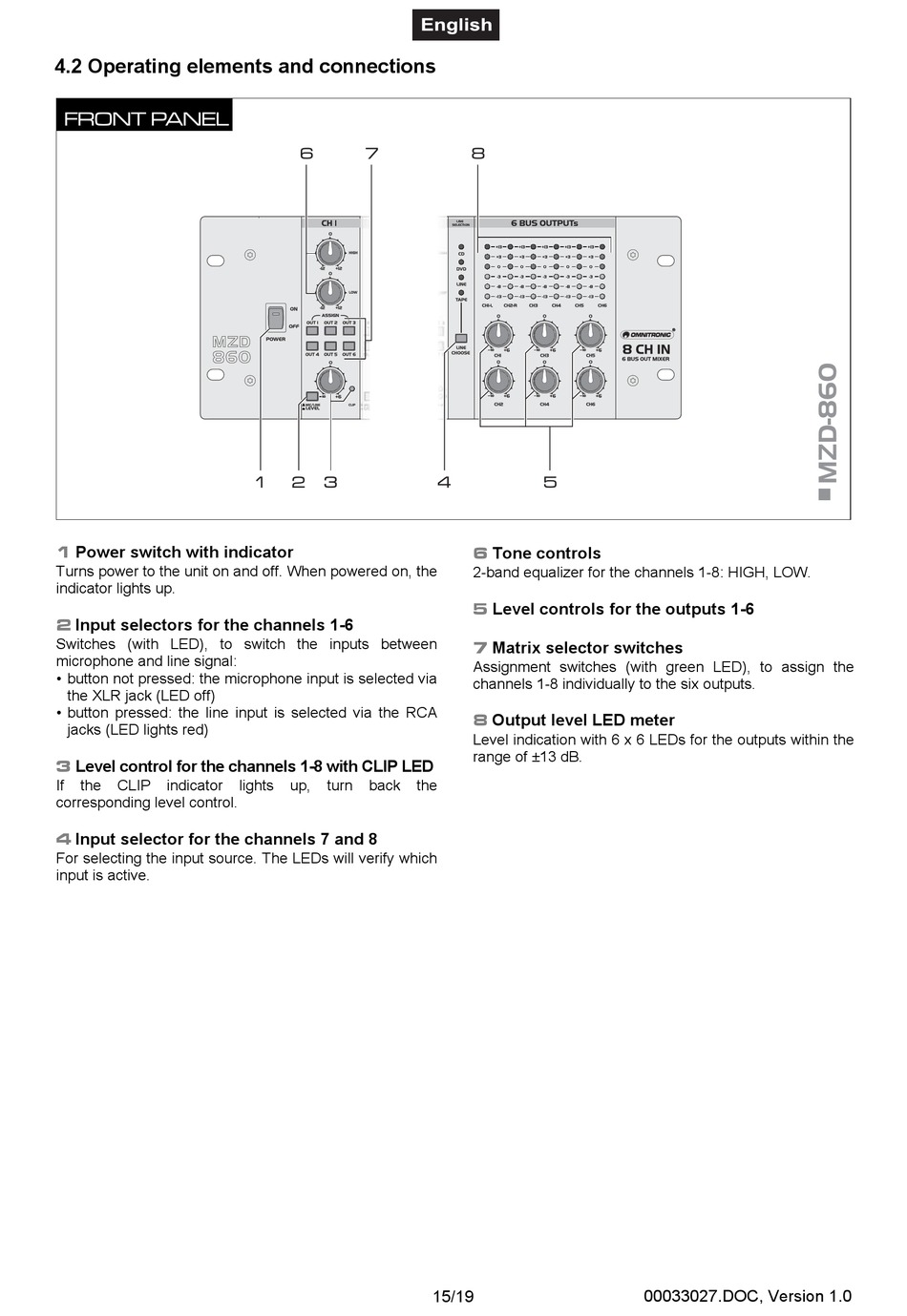

4.2 Operating elements and connections

1
Power switch with indicator
Turns power to the unit on and off. When powered on, the
indicator lights up.
2 Input selectors for the channels 1-6
Switches (with LED), to switch the inputs between
microphone and line signal:
• button not pressed: the microphone input is selected via
the XLR jack (LED off)
• button pressed: the line input is selected via the RCA
jacks (LED lights red)
3 Level control for the channels 1-8 with CLIP LED
If the CLIP indicator
corresponding level control.
4
Input selector for the channels 7 and 8
For selecting the input source. The LEDs will verify which
input is active.
lights up, turn back
6 Tone controls
2-band equalizer for the channels 1-8: HIGH, LOW.
5 Level controls for the outputs 1-6
7 Matrix selector switches
Assignment switches (with green LED), to assign the
channels 1-8 individually to the six outputs.
8 Output level LED meter
Level indication with 6 x 6 LEDs for the outputs within the
range of ±13 dB.
the
