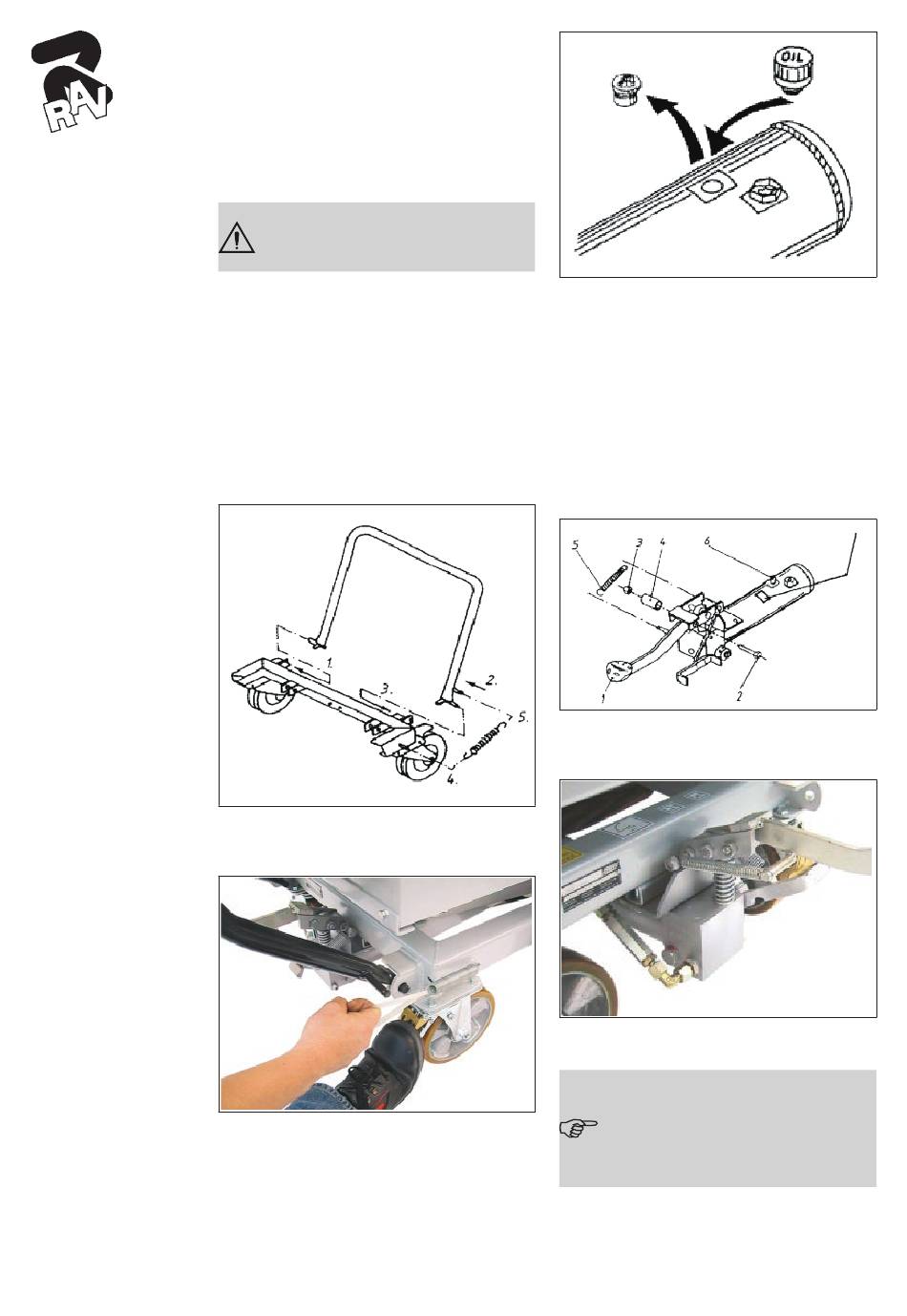

Taking into use

For technical details see dimension she-
et in appendix

3.1 Setting up / Assembly

Caution
Wear protective gloves when
as-sembling the spring.
• Put the wheel brake on.
• Assemble the handle and spring us-ing
the drawing as a guide. Please use the
enclosed cable binder in ac-cordance
with Fig. 5.
• Both ends of the shaft swivel points are
to be provided with the enclosed cover
caps.
Fig. 4:
Fig. 5:
• Assemble the components in the en-
closed packet using the drawing as a
guide
• Exchange the tank plug for the or-ange
breather plug
KT100_KT100XT_(0970M00100)_R1_UN_00
Fig. 6:
The component packet contains:
• Pos. 1 - Foot pedal
• Pos. 2 - Hex' bolt
• Pos. 3 - Hex' nut
• Pos. 4 - Bush
• Pos. 5 - Spring dia ø 15x87
• Pos. 6 – Breather plug R 3/8"
Handle
Fig. 7:
Spring
Fig. 8:
Have you read the operating
in-structions and above all the
safety points and above all
understood them? Then you
can take the ma-chine into use
