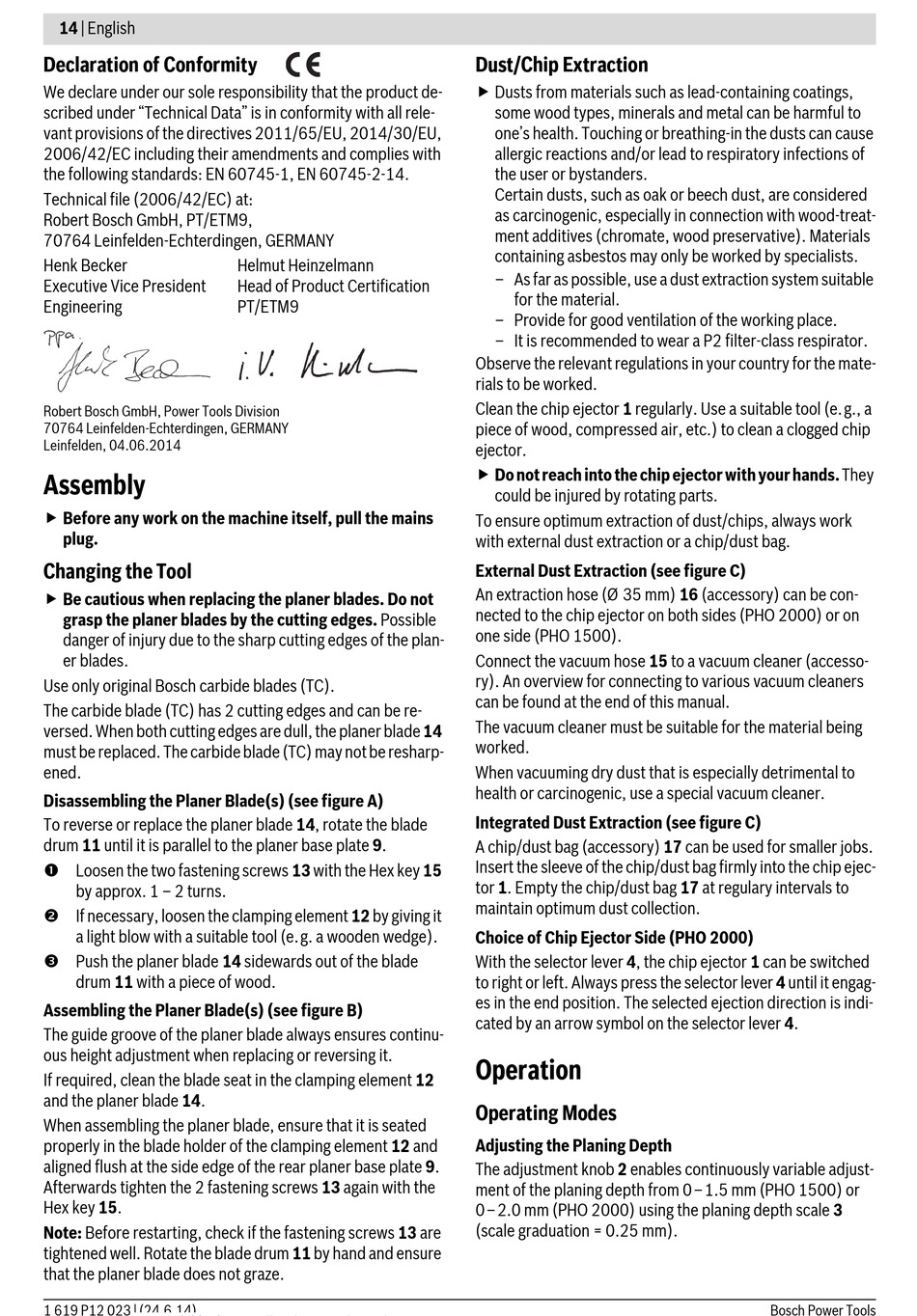

14 | English

Declaration of Conformity

We declare under our sole responsibility that the product de-
scribed under "Technical Data" is in conformity with all rele-
vant provisions of the directives 2011/65/EU, 2014/30/EU,
2006/42/EC including their amendments and complies with
the following standards: EN 60745-1, EN 60745-2-14.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
70764 Leinfelden-Echterdingen, GERMANY
Henk Becker
Executive Vice President
Engineering
Robert Bosch GmbH, Power Tools Division
70764 Leinfelden-Echterdingen, GERMANY
Leinfelden, 04.06.2014
Assembly
 Before any work on the machine itself, pull the mains
plug.
Changing the Tool
 Be cautious when replacing the planer blades. Do not
grasp the planer blades by the cutting edges. Possible
danger of injury due to the sharp cutting edges of the plan-
er blades.
Use only original Bosch carbide blades (TC).
The carbide blade (TC) has 2 cutting edges and can be re-
versed. When both cutting edges are dull, the planer blade 14
must be replaced. The carbide blade (TC) may not be resharp-
ened.
Disassembling the Planer Blade(s) (see figure A)
To reverse or replace the planer blade 14, rotate the blade
drum 11 until it is parallel to the planer base plate 9.
 Loosen the two fastening screws 13 with the Hex key 15
by approx. 1 – 2 turns.
 If necessary, loosen the clamping element 12 by giving it
a light blow with a suitable tool (e.g. a wooden wedge).
 Push the planer blade 14 sidewards out of the blade
drum 11 with a piece of wood.
Assembling the Planer Blade(s) (see figure B)
The guide groove of the planer blade always ensures continu-
ous height adjustment when replacing or reversing it.
If required, clean the blade seat in the clamping element 12
and the planer blade 14.
When assembling the planer blade, ensure that it is seated
properly in the blade holder of the clamping element 12 and
aligned flush at the side edge of the rear planer base plate 9.
Afterwards tighten the 2 fastening screws 13 again with the
Hex key 15.
Note: Before restarting, check if the fastening screws 13 are
tightened well. Rotate the blade drum 11 by hand and ensure
that the planer blade does not graze.
1 619 P12 023 | (24.6.14)
Helmut Heinzelmann
Head of Product Certification
PT/ETM9

Dust/Chip Extraction

 Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one's health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.
– As far as possible, use a dust extraction system suitable
for the material.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the mate-
rials to be worked.
Clean the chip ejector 1 regularly. Use a suitable tool (e.g., a
piece of wood, compressed air, etc.) to clean a clogged chip
ejector.
 Do not reach into the chip ejector with your hands. They
could be injured by rotating parts.
To ensure optimum extraction of dust/chips, always work
with external dust extraction or a chip/dust bag.
External Dust Extraction (see figure C)
An extraction hose (Ø 35 mm) 16 (accessory) can be con-
nected to the chip ejector on both sides (PHO 2000) or on
one side (PHO 1500).
Connect the vacuum hose 15 to a vacuum cleaner (accesso-
ry). An overview for connecting to various vacuum cleaners
can be found at the end of this manual.
The vacuum cleaner must be suitable for the material being
worked.
When vacuuming dry dust that is especially detrimental to
health or carcinogenic, use a special vacuum cleaner.
Integrated Dust Extraction (see figure C)
A chip/dust bag (accessory) 17 can be used for smaller jobs.
Insert the sleeve of the chip/dust bag firmly into the chip ejec-
tor 1. Empty the chip/dust bag 17 at regulary intervals to
maintain optimum dust collection.
Choice of Chip Ejector Side (PHO 2000)
With the selector lever 4, the chip ejector 1 can be switched
to right or left. Always press the selector lever 4 until it engag-
es in the end position. The selected ejection direction is indi-
cated by an arrow symbol on the selector lever 4.
Operation

Operating Modes

Adjusting the Planing Depth
The adjustment knob 2 enables continuously variable adjust-
ment of the planing depth from 0–1.5 mm (PHO 1500) or
0–2.0 mm (PHO 2000) using the planing depth scale 3
(scale graduation = 0.25 mm).
