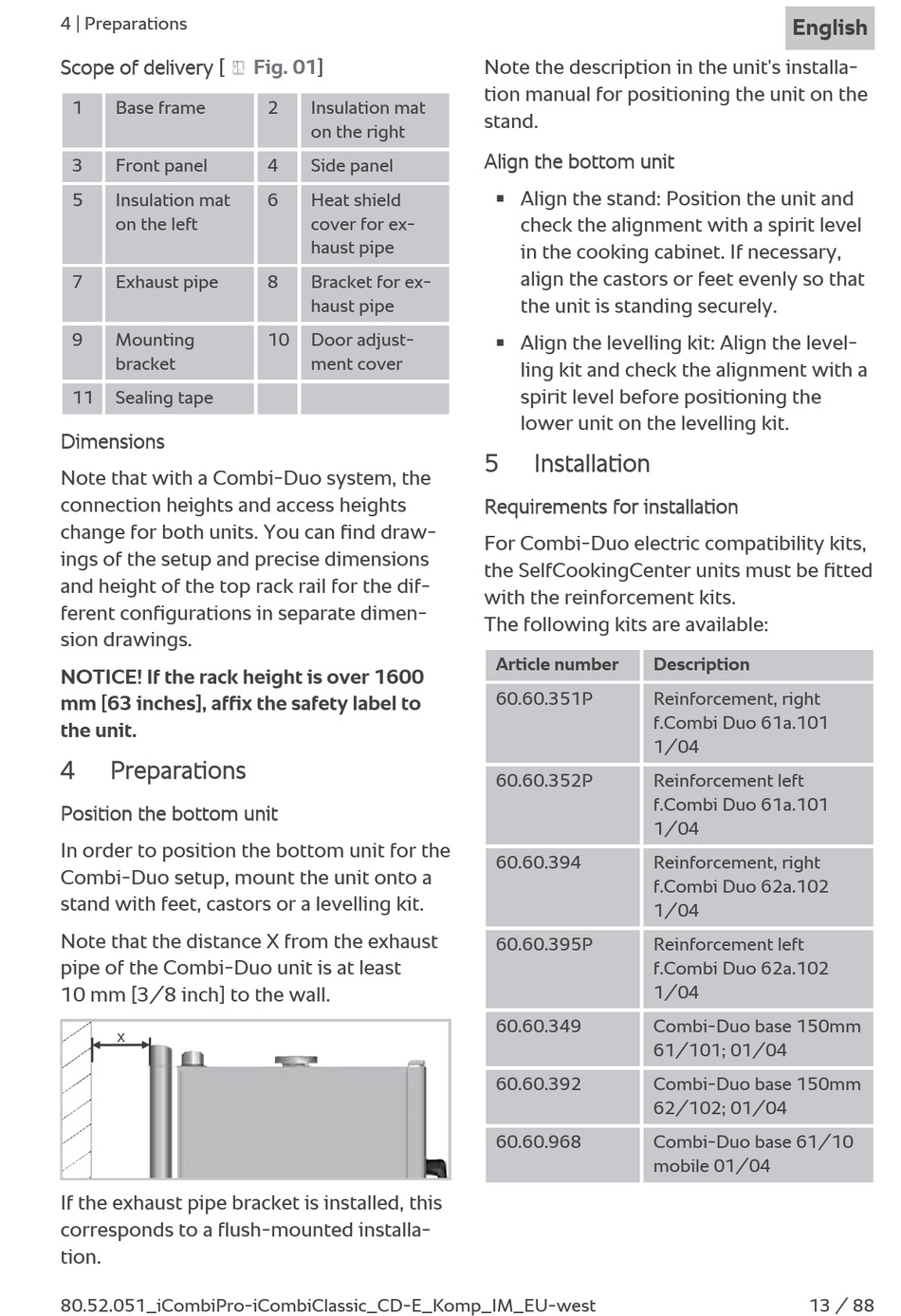

4 | Preparations

Scope of delivery [
1 Base frame
3 Front panel
5 Insulation mat
on the left
7 Exhaust pipe
9 Mounting
bracket
11 Sealing tape
Dimensions
Note that with a Combi-Duo system, the
connection heights and access heights
change for both units. You can find draw-
ings of the setup and precise dimensions
and height of the top rack rail for the dif-
ferent configurations in separate dimen-
sion drawings.
NOTICE! If the rack height is over 1600
mm [63 inches], affix the safety label to
the unit.
4 Preparations
Position the bottom unit
In order to position the bottom unit for the
Combi-Duo setup, mount the unit onto a
stand with feet, castors or a levelling kit.
Note that the distance X from the exhaust
pipe of the Combi-Duo unit is at least
10 mm [3/8 inch] to the wall.
X
If the exhaust pipe bracket is installed, this
corresponds to a flush-mounted installa-
tion.
80.52.051_iCombiPro-iCombiClassic_CD-E_Komp_IM_EU-west
Fig. 01]
2 Insulation mat
on the right
4 Side panel
6 Heat shield
cover for ex-
haust pipe
8 Bracket for ex-
haust pipe
10 Door adjust-
ment cover
Note the description in the unit's installa-
tion manual for positioning the unit on the
stand.
Align the bottom unit
Align the stand: Position the unit and
n
check the alignment with a spirit level
in the cooking cabinet. If necessary,
align the castors or feet evenly so that
the unit is standing securely.
Align the levelling kit: Align the level-
n
ling kit and check the alignment with a
spirit level before positioning the
lower unit on the levelling kit.
5

Installation

Requirements for installation
For Combi-Duo electric compatibility kits,
the SelfCookingCenter units must be fitted
with the reinforcement kits.
The following kits are available:
Article number Description
60.60.351P Reinforcement, right
f.Combi Duo 61a.101
1/04
60.60.352P Reinforcement left
f.Combi Duo 61a.101
1/04
60.60.394 Reinforcement, right
f.Combi Duo 62a.102
1/04
60.60.395P Reinforcement left
f.Combi Duo 62a.102
1/04
60.60.349 Combi-Duo base 150mm
61/101; 01/04
60.60.392 Combi-Duo base 150mm
62/102; 01/04
60.60.968 Combi-Duo base 61/10
mobile 01/04
English
13 / 88
