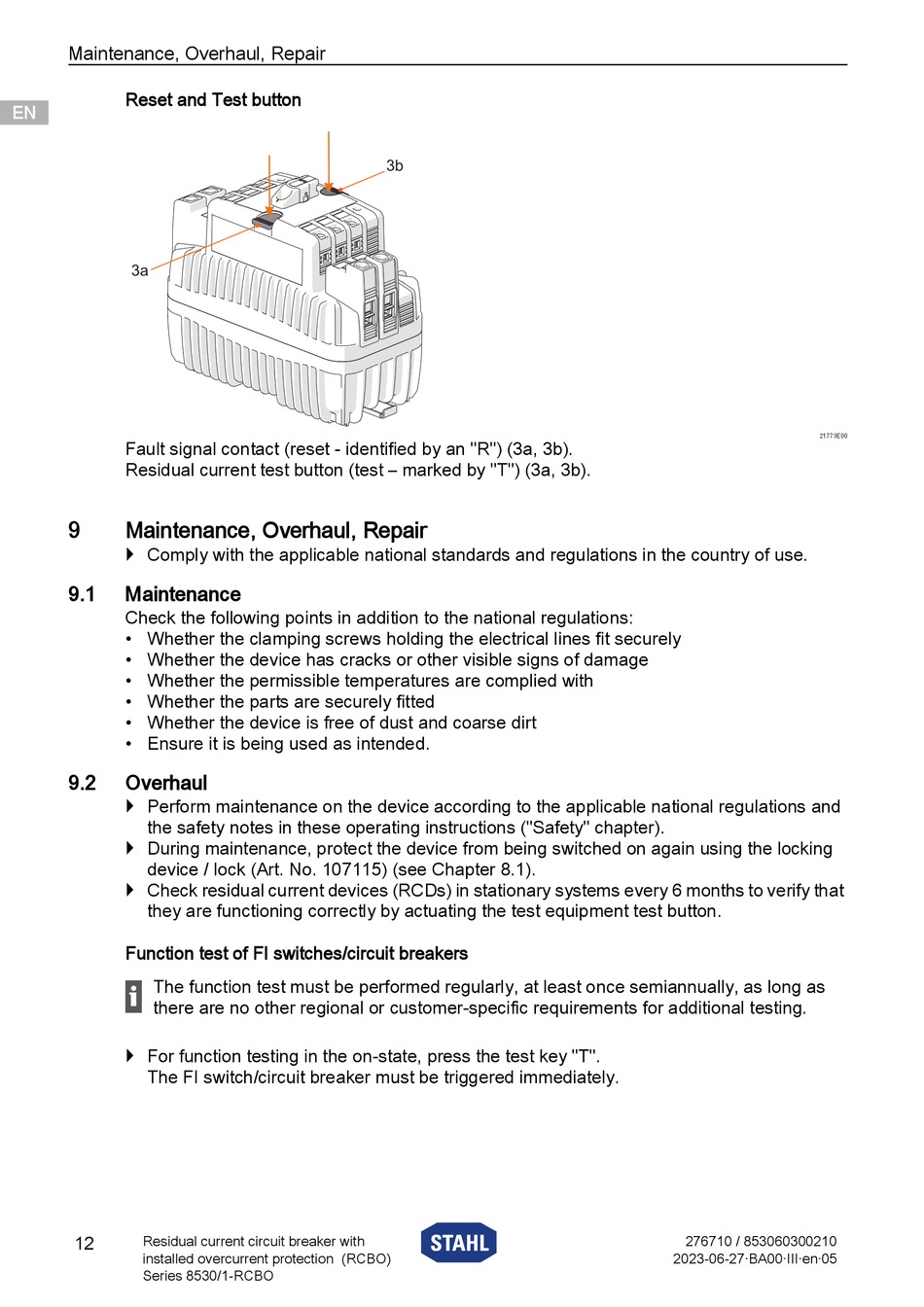

Reset and Test button
EN
EN
EN
EN
EN
EN
3a
EN
EN
EN
EN
EN
EN
Fault signal contact (reset - identified by an "R") (3a, 3b).
EN
Residual current test button (test – marked by "T") (3a, 3b).
EN
EN
9 Maintenance, Overhaul, Repair
EN
 Comply with the applicable national standards and regulations in the country of use.
EN
9.1

Maintenance

EN
Check the following points in addition to the national regulations:
EN
• Whether the clamping screws holding the electrical lines fit securely
EN
• Whether the device has cracks or other visible signs of damage
• Whether the permissible temperatures are complied with
EN
• Whether the parts are securely fitted
EN
• Whether the device is free of dust and coarse dirt
EN
• Ensure it is being used as intended.
EN
9.2

Overhaul

 Perform maintenance on the device according to the applicable national regulations and
the safety notes in these operating instructions ("Safety" chapter).
 During maintenance, protect the device from being switched on again using the locking
device / lock (Art. No. 107115) (see Chapter 8.1).
 Check residual current devices (RCDs) in stationary systems every 6 months to verify that
they are functioning correctly by actuating the test equipment test button.
Function test of FI switches/circuit breakers
The function test must be performed regularly, at least once semiannually, as long as
there are no other regional or customer-specific requirements for additional testing.
 For function testing in the on-state, press the test key "T".
The FI switch/circuit breaker must be triggered immediately.
