MMX 200 wireless

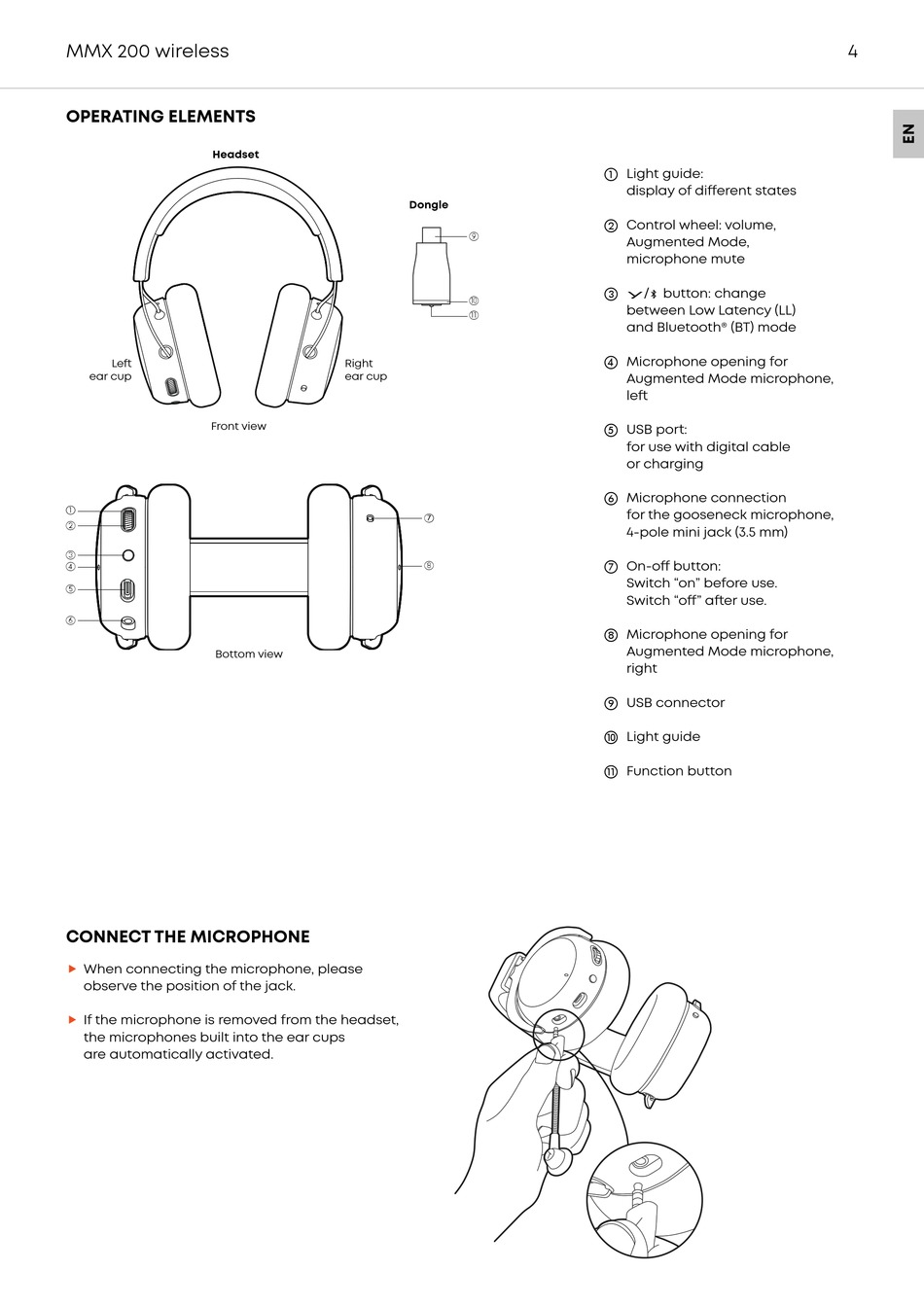

OPERATING ELEMENTS

Headset
Left
ear cup
Front view
a
b
c
d
e
f
Bottom view

CONNECT THE MICROPHONE

� When connecting the microphone, please
observe the position of the jack .
If the microphone is removed from the headset,
�
the microphones built into the ear cups
are automatically activated .
Dongle
i
j
k
Right
ear cup
g
h
a Light guide:
display of different states
b Control wheel: volume,
Augmented Mode,
microphone mute
/ button: change
c
between Low Latency (LL)
and Bluetooth® (BT) mode
d Microphone opening for
Augmented Mode microphone,
left
e USB port:
for use with digital cable
or charging
f Microphone connection
for the gooseneck microphone,
4-pole mini jack (3 .5 mm)
g On-off button:
Switch "on" before use .
Switch "off" after use .
h Microphone opening for
Augmented Mode microphone,
right
i USB connector
j Light guide
k Function button
4
