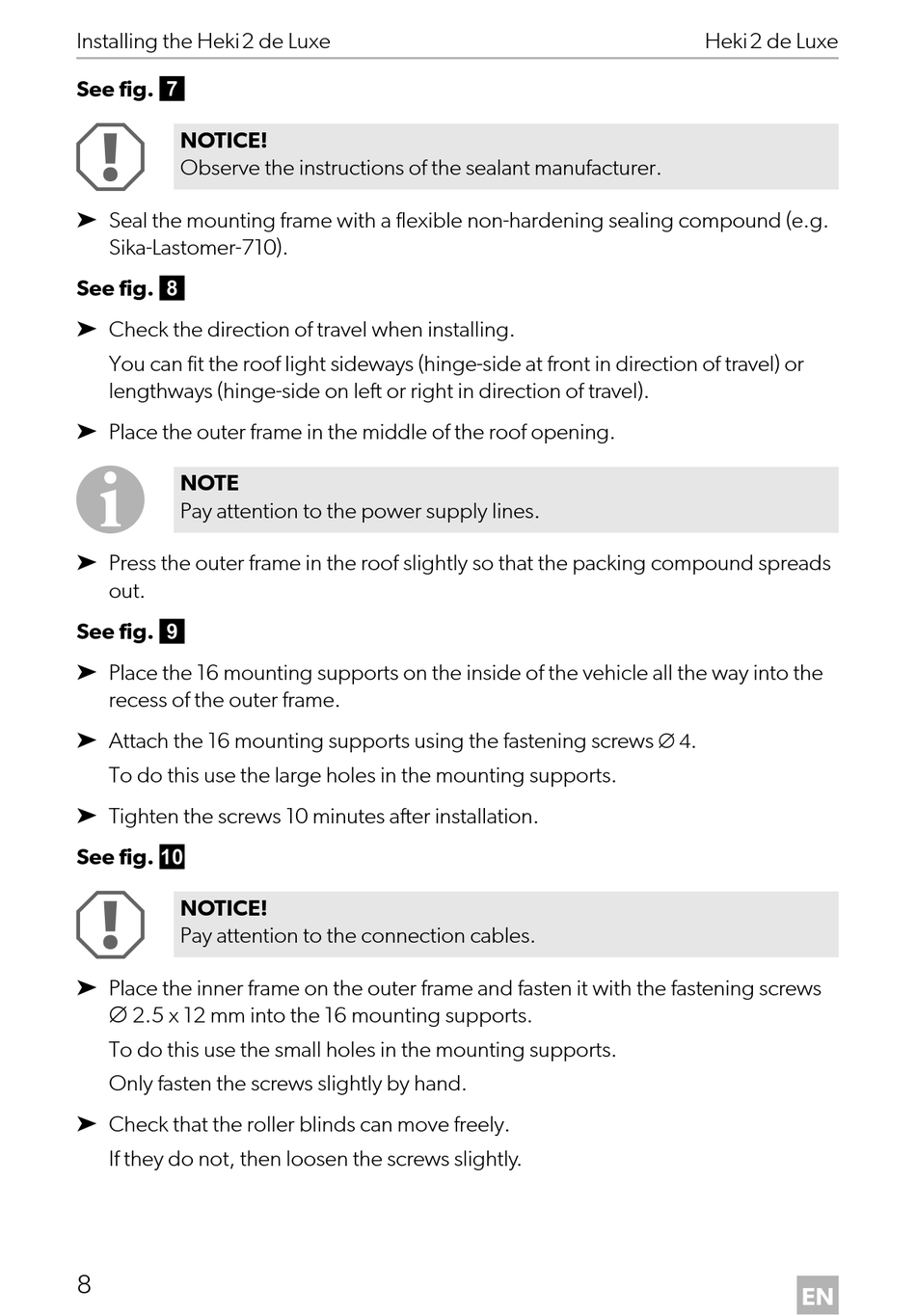

Installing the Heki2 de Luxe
See fig. 7
A
NOTICE!
Observe the instructions of the sealant manufacturer.
➤ Seal the mounting frame with a flexible non-hardening sealing compound (e.g.
Sika-Lastomer-710).
See fig. 8
➤ Check the direction of travel when installing.
You can fit the roof light sideways (hinge-side at front in direction of travel) or
lengthways (hinge-side on left or right in direction of travel).
➤ Place the outer frame in the middle of the roof opening.
I
NOTE
Pay attention to the power supply lines.
➤ Press the outer frame in the roof slightly so that the packing compound spreads
out.
See fig. 9
➤ Place the 16 mounting supports on the inside of the vehicle all the way into the
recess of the outer frame.
➤ Attach the 16 mounting supports using the fastening screws
To do this use the large holes in the mounting supports.
➤ Tighten the screws 10 minutes after installation.
See fig. 0
A
NOTICE!
Pay attention to the connection cables.
➤ Place the inner frame on the outer frame and fasten it with the fastening screws
∅ 2.5 x 12 mm into the 16 mounting supports.
To do this use the small holes in the mounting supports.
Only fasten the screws slightly by hand.
➤ Check that the roller blinds can move freely.
If they do not, then loosen the screws slightly.
8
Heki2 de Luxe
∅ 4
.
EN
