Mounting the toothed rack holder

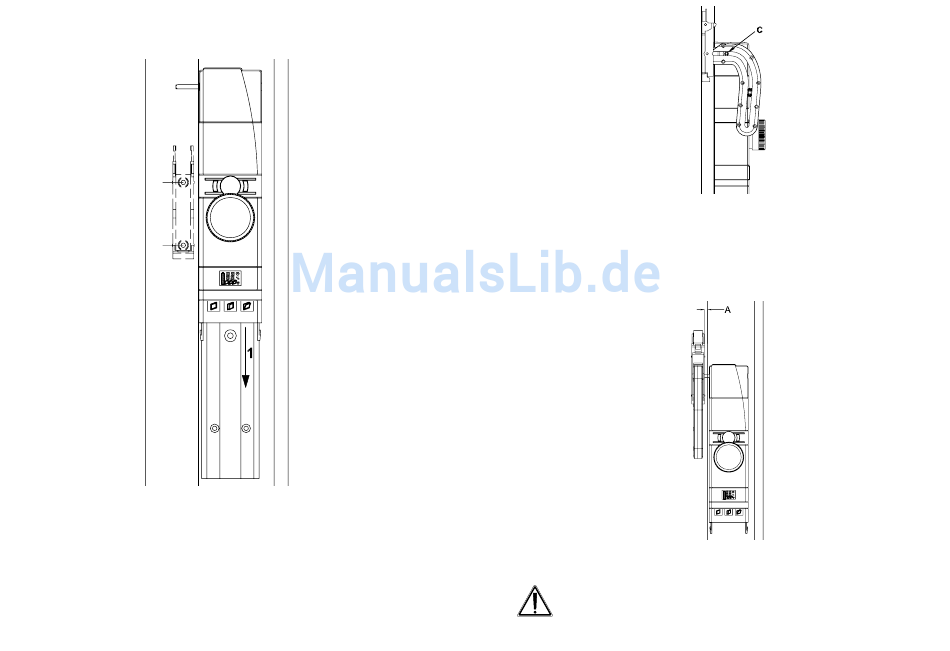

Slide WinMatic onto the mounting plate from above, in the direction of the arrow (1).
Check the position of the toothed rack holder that is marked on the window frame. Do
not attach the pinion just yet. Make any necessary minor adjustments to the mounting
position.
46
Adjust the mounting height of the holder so that, when the window is closed, initial travel
in the toothed rack is in the horizontal plane.
When mounting the holder, you must also ensure that the lateral gap (A) between the
holder and the casement is such that the casement can still move freely. Do not make
the gap so large that the shaft cannot reach far enough into the pinion.
If necessary, now mark a better mounting position for the toothed rack holder.
Release the toothed rack from the holder and use adhesive strips or the
self-tapping screws supplied to fix the holder in place.
If the self-tapping screws are used to fix the holder, this will damage the
casement. For those living in rented accommodation, this could lead to
a landlord making a claim for compensation or holding back a tenant's deposit.
