Preparing the mounting position for the toothed rack holder
Clean the area of the window frame around the handle (to ensure that the toothed rack
holder will stick to the frame properly if adhesive is to be used for mounting).

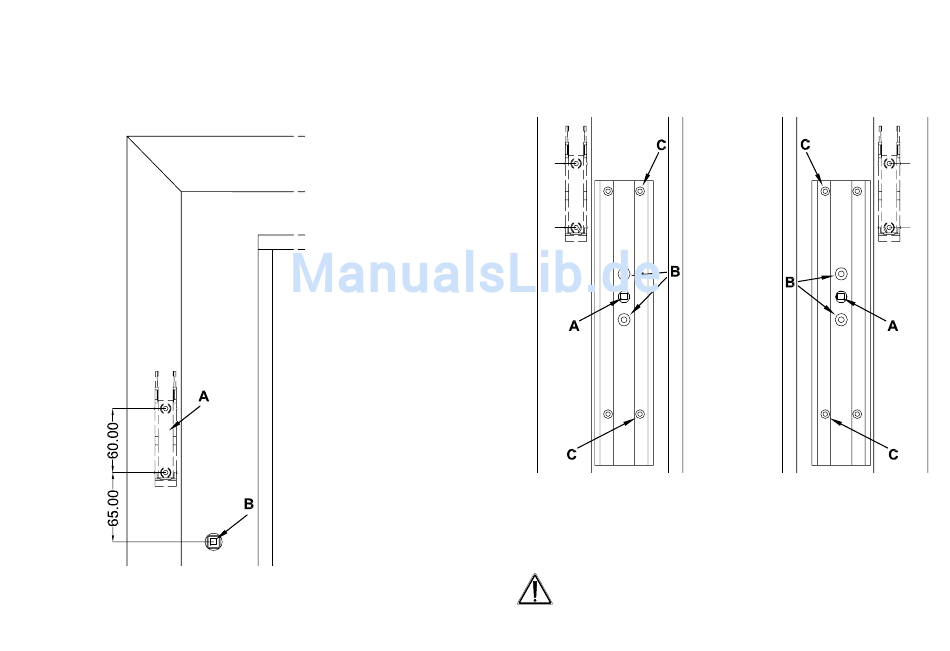

Mark the mounting position (height) of the toothed rack holder in accordance with the
diagram below (which is for a window hinged on the right). The exact position is defined
once WinMatic has been mounted.
44
6.2.5
Mounting the retaining plate
Use the screws supplied (M5 x 35 mm) to fix the retaining plate.
Make sure that the retaining plate is aligned parallel to the frame. Align the plate as per
the diagram with the longer piece underneath the hole for the window turning handle.
Use the holes for fixing the window handle (B) to do this.
If necessary, you can also use the self-tapping screws supplied (3.5 x 20 mm) to fix the
retaining plate in position. If you do so, only use the holes on the side facing towards the
window glass (C in the two diagrams).
I f the self-tapping screws are used to fix the retaining plate, this will damage the
casement. For those living in rented accommodations, this could lead to a
landlord making a claim for compensation or holding back a tenant's deposit.
